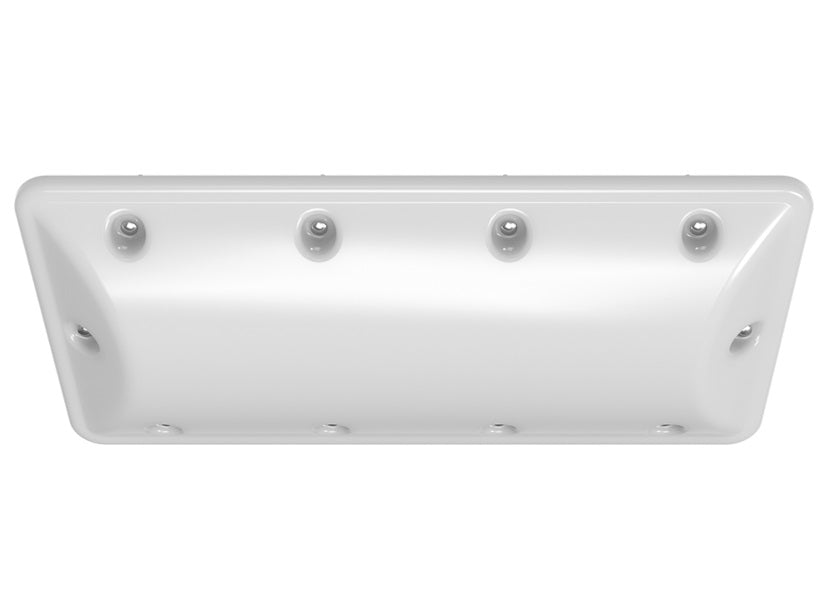

Shat-R-Shield 040-GDL Ironclad® General Duty Linear 40-Watt LED Large Area Light Fixture
Shat-R-Shield 040-GDL Ironclad® General Duty Linear 40-Watt LED Large Area Light Fixture
Specifications
Specifications
| Part Number# | 040GDL50CMNVHPC00000002 |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Lamp Life: | 75,000 Hours |
| Lumen Output: | 3,800 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Made In America Compliant, UL Listed |
| Dimensions: | 24.5" x 11.6" x 2.2" |
| Width: | 11.6" |
| Length: | 24.5" |
| Height: | 2.2" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6.35 lbs |
| Manufacturer: | Shat-R-Shield |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Ironclad® General Duty Linear Light (G.D.L) is an ultimate lighting solution designed specifically for larger areas in correctional and behavioral applications. Built to endure even the toughest environments, this fixture combines durability, functionality, and a sleek design to meet your lighting needs.
The G.D.L's standout feature is its extreme low profile and compact housing, making it ideal for areas where space is limited. Its slim design ensures that the fixture seamlessly integrates into any environment without obstructing the surroundings. Whether it's a prison cell, detention facility, or behavioral unit, the G.D.L effortlessly fits in, providing a reliable and unobtrusive lighting solution.
But durability doesn't mean compromising on performance. The G.D.L delivers powerful and efficient lighting, illuminating large areas with ease. Its advanced technology ensures optimal brightness while minimizing energy consumption, helping you reduce costs and environmental impact. With the Ironclad® G.D.L, you can achieve superior lighting quality without compromising on efficiency.
Features:
• Flush ceiling mounted with (8) spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• Extreme Durability - Lens is made of highly impact-resistant 1/4” thick polycarbonate with a minimum IK10 impact rating.
• No areas to hide or conceal contraband.
• Installation - Anchored flush onto ceiling with (8) spike anchors or optional recessed • tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• Tight bolt pattern offers ligature resistance.
Specifications:
• Lumens: 3800 (40W), 7400 (80W)
• Count Light Lumens: 530 (Only in 40W units)
• Light Engine CCT: 5000K, 4000K
• Count Light CCT: 2700K
• Life Hours: L70>75,000 Hours; Projected >100,000 Hours
• Footcandles: 35 ftc at the desk level; 22 ftc at the floor
• Voltage: Universal 120-277V
• Weight: 6.35 lbs. (40W, 7.1 lbs. (80W)
• Dimensions: 24.5” long x 11.6" wide x 2.2” tall
• Warranty: 5-year limited warranty
