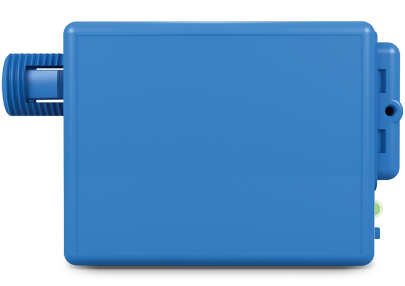

Sensorworx SWX-900 Power Pack 120-277V
Sensorworx SWX-900 Power Pack 120-277V
Specifications
Specifications
| Part Number# | SWX-900 |
|---|---|
| Type of Area: | Home & Architectural, Large Retail & Open Areas, Office & Small Retail, Schools |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Made In America Compliant, UL Listed |
| Dimensions: | 3.00" x 2.25" x 1.88" |
| Width: | 2.25" |
| Length: | 3.00" |
| Height: | 1.88" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -10 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6.00 oz |
| Manufacturer: | Sensorworx |
Details
Details
ShineRetrofit Input:
Sensorworx Power Packs will transform incoming line voltage power to class 2 low voltage as needed by sensors or other control devices. They switch on/off power to the connected lighting load as directed by the sensors. Easy to install and provide a hassle free contractor experience. Proudly made in the USA.
Basic Operation:
An input signal indicating occupancy from one or more connected sensors will signal the pack’s integrated relay to close. Once closed, line voltage will flow through the relay and turn on the connected lighting load. When the input signal indicates the occupied period has ended, the relay will open and lighting will switch off. This pack is also available with an auxiliary switch input to enable manual on, hold on, and hold off configurations.
Features:
• Powers Low Voltage Sensors
• Switches Line Voltage Loads
• Electronically Timed Switching Ensures Long Relay Life
• Integrated Test/Programming Button
• Optional Snap-On Attachment Provides Chamber for Low Voltage Wire Connections
• Optional Switch Input for Manual On/Hold On/Hold Off Operation
• Plenum Rated (UL 2043)
