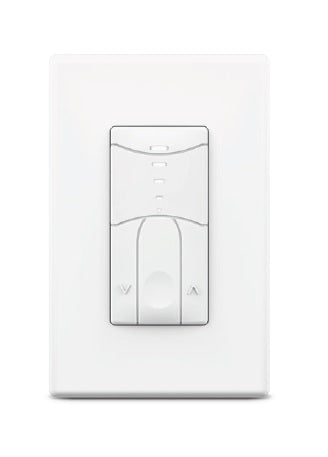

Sensorworx SWX-823-WH 0-10V Dimming Wall Switch Line Voltage
Sensorworx SWX-823-WH 0-10V Dimming Wall Switch Line Voltage
Specifications
Specifications
| Part Number# | SWX-823-WH |
|---|---|
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Made In America Compliant, ROHS, UL Listed |
| Dimensions: | 2.74" x 1.68" x 1.39" |
| Width: | 1.68 |
| Length: | 2.74 |
| Height: | 1.39 |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.5 oz |
| Manufacturer: | Sensorworx |
Details
Details
Sensorworx SWX-823-WH 0-10V Dimming Wall Switch Line Voltage
ShineRetrofits Input:
The SWX-823 line voltage switch and 0-10V dimmer is used in spaces where manual dimming control is required. The unit is significantly shallower than typical dimmers and enables usage with or without a neutral connection.
Features:
• Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
• Electronically Timed Switching Ensures Long Relay Life
• Works both Standalone and with 3-Way Switches
• Meets NEC Guidelines for Current Leakage
Physical Features:
• Enclosure is 25-40% Shallower than Other Dimmers (< 1” Depth into Wallbox)
• Self-Grounding Mounting Strap
• Modern Look and Intuitive Easy-Tap Buttons for On/Off, Raise, & Lower
• Settings are Adjustable Without Removing Cover Plate
