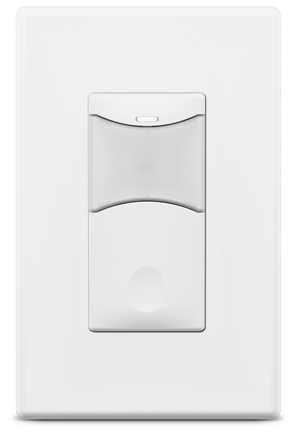

Sensorworx SWX-103 Manual On 1-Pole Wall Switch Sensor - Passive Infrared
Sensorworx SWX-103 Manual On 1-Pole Wall Switch Sensor - Passive Infrared
Specifications
Specifications
| Part Number# | SWX-103 |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Made In America Compliant, ROHS, Title 24 Compliant |
| Dimensions: | 2.74" x 1.39" |
| Length: | 2.74" |
| Height: | 1.39" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.28 lbs |
| Manufacturer: | Sensorworx |
Details
Details
ShineRetrofit Input:
The SensorWorx Wall Switch occupancy sensors are preferred by contractors for their simple, flexible design. They are more shallow than most sensors, resulting in less crowded wall boxes and include versatile wiring options. Utilizes the latest passive infrared technology to provide the best performance in the industry.
Features:
• Interchangeable Line & Load Wires - Impossible to Wire Backwards
• Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
• Electronically Timed Switching Ensures Long Relay Life
• Compatible with LED, Fluorescent and Incandescent Lighting
• Meets NEC Guidelines Regarding Current Leakage
Physical Features:
• Enclosure is 25-40% Shallower than Other Sensors (< 1” Depth into Wallbox)
• Unique Bat-Wing Shaped Lens Provides Enhanced Peripheral Detection
• Self-Grounding Mounting Strap
• Modern Look and Intuitive Easy-Tap Button
• Rugged Vandal Resistant Lens
• Settings are Adjustable Without Removing Cover Plate
Applications:
• Classrooms
• Open Areas
• Conference Rooms
• Hallways
• Small Offices
• Copy Rooms
• Private Restrooms
• Break Room
