RAB Lighting X22 Series LED 5-Way Selectable Floodlight Dimmable Replaces up to 400W HPS/750W HID
RAB Lighting X22 Series LED 5-Way Selectable Floodlight Dimmable Replaces up to 400W HPS/750W HID
-
Specsheet:
Specifications
Specifications
| Part Number# | X22 |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Landscape & Flood, Large Retail & Open Areas, Sign & Billboards, Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,570 - 16,069 |
| Wattage: | 150 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 100W HID Equivalent, 175W HID Equivalent, 320W HID Equivalent, 400W HID Equivalent, 750W HID Equivalent, ANSI, Dimmable, IP65 / IP66 / IP67, LM79 / LM80, NEMA, UL Listed |
| CRI: | >80 |
| Dimensions: | See Spec Sheet |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.98 - 8.80 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
RAB Lighting's X22 5-Way Selectable Floodlight is a versatile and reliable lighting solution for everyday use. It offers a range of options to customize its performance, such as beam angles, wattages, CCTs, photocell, and mounting. Whether you need a white or bronze floodlight for your home, garden, or business, the X22 can deliver the optimal illumination for your needs. With its 0-10V dimming feature, the X22 also allows you to adjust the brightness level according to your preference.
Features:
• 5-Way Selectable (Includes 3 Beam angles,4 Wattages, 3 CCTs, On/off photocell, and 2 Mounting options.

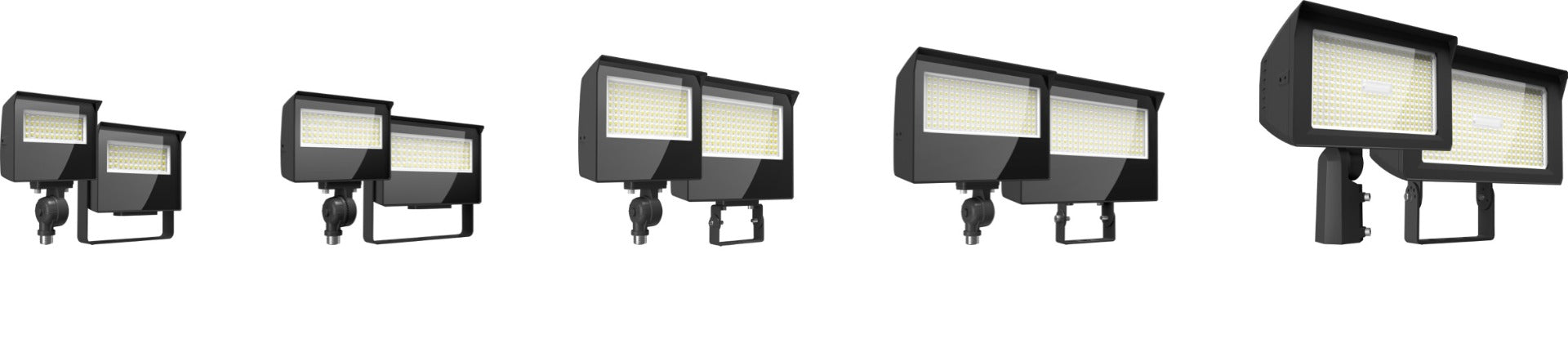

• Available models & wattages:
X22-20: 20/17/13/10W
X22-35: 35/30/25/20W
X22-60: 60/50/40/30W
X22-80: 80/70/60/50W
X22-150: 150/125/100/75W
• Selectable CCT: 3000/4000/5000K
• Suitable for wet locations
• 0-10V dimming
• 120-277V on/off photocell (480V photocell available for 150W model)
• Two mounts included with each:
20 and 30W: Knuckle and Yoke
60 and 80W: Knuckle and Trunnion
150W: Slipfitter and Trunnion
• 5-year limited warranty
