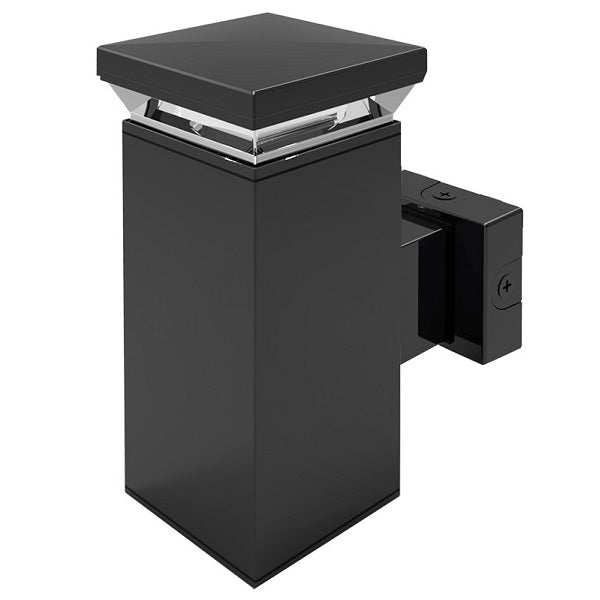

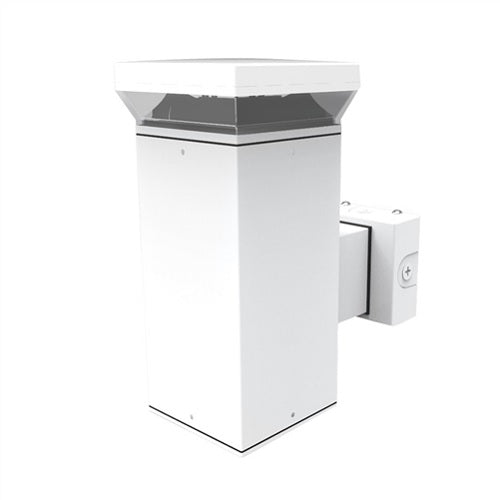

RAB Lighting WBLED18 18 Watt LED Square Decorative Wall Sconce
RAB Lighting WBLED18 18 Watt LED Square Decorative Wall Sconce
-
Specsheet:
Specifications
Specifications
| Part Number# | WBLED18 |
|---|---|
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 818-1,032 |
| Wattage: | 18 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Lighting Facts, LM79 / LM80, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 70 (5100K) >80 (4000K and 3000K) |

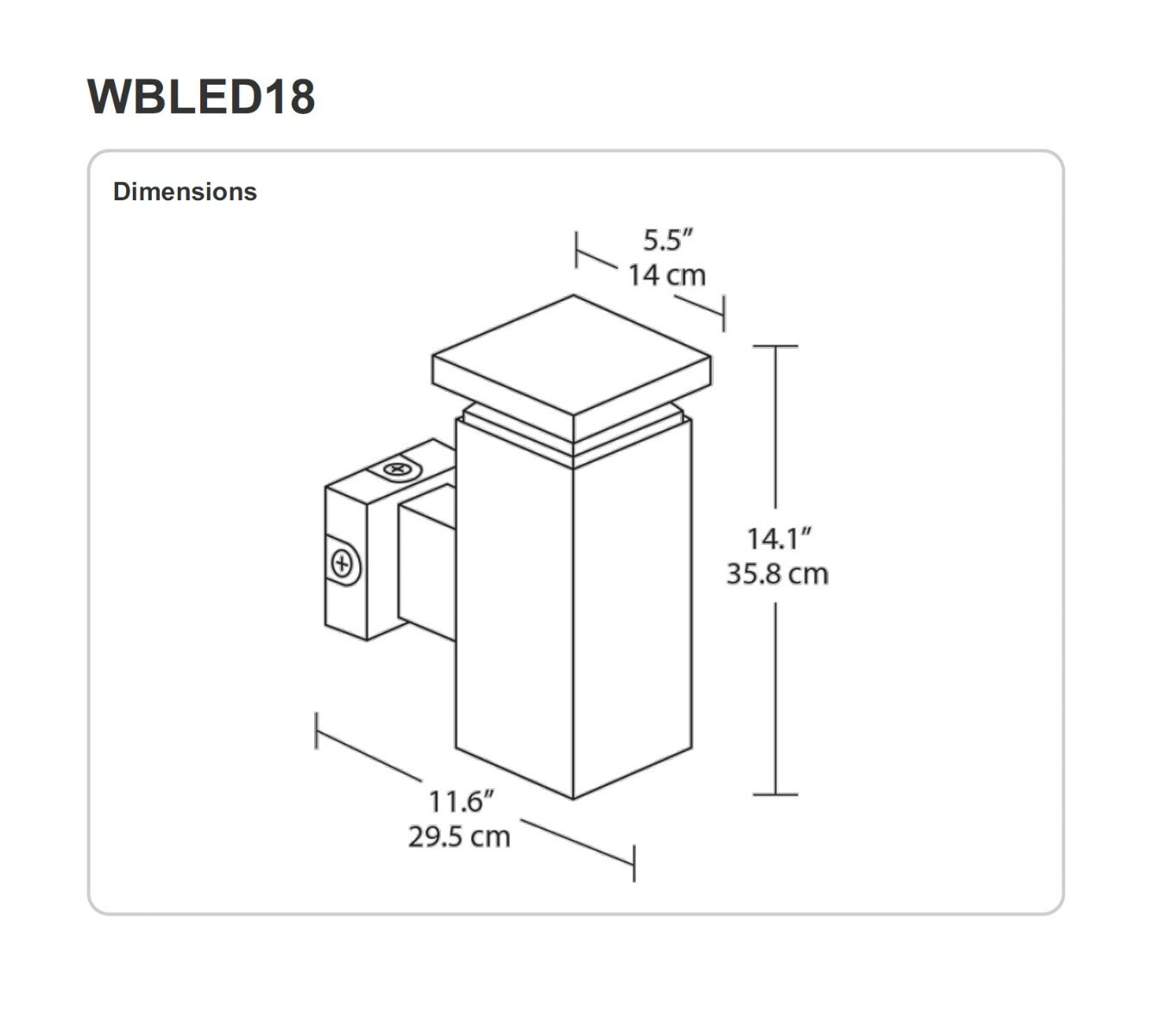

| Dimensions: | 14.10" x 11.60" x 5.50" |
| Width: | 11.60" |
| Length: | 14.10" |
| Height: | 5.50" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 13.10 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
This 18 Watt LED Square Wall Sconce has a durable construction made of die-cast aluminum and a clear, vandal resistant polycarbonate lens. It is energy efficient with a long LED life of 100,000 hours and made with green technology, mercury and UV free with RoHS compliance. Includes a 5 year warranty. Combine these with RAB's BLED Bollard Landscape fixtures to complete the look and provide a great landscape lighting system.
Listings:
• UL Listing: Suitable for wet locations. Suitable for moutning within 4 ft. (1.2m) off the ground.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
LED Characteristics:
• LEDs: 6W multi-chip, long-life LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.
Construction:
• Cold Weather Starting: Minimum starting temperature is -40°F / -40°C.
• Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
• Thermal Management: Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, maximum efficiency and long life by minimizing LED junction temperature.
• Housing: Die-cast aluminum with extruded aluminum bollard shaft
• Reflector: Specular polycarbonate
• Gaskets: High-temperature silicone gaskets seal out moisture
• Finish: Environmentally friendly polyester powder coatings are formulated for high-durability, long-lasting color, contains no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant.
California Title 24: See WBLED18/PCS for a 2013 California Title 24 compliant model.
Model Number's:
WBLED18, WBLED18/PCS, WBLED18/PCS2, WBLED18N, WBLED18N/PCS
WBLED18N/PCS2, WBLED18NW, WBLED18NW/PCS,WBLED18NW/PCS2
WBLED18W, WBLED18W/PCS WBLED18W/PCS2, WBLED18Y, WBLED18Y/PCS
WBLED18Y/PCS2, WBLED18YW, WBLED18YW/PCS, WBLED18YW/PCS2
WBLEDR18, WBLEDR18/PCS, WBLEDR18/PCS2, WBLEDR18N, WBLEDR18N/PCS
WBLEDR18N/PCS2, WBLEDR18NW, WBLEDR18NW/PCS, WBLEDR18NW/PCS2
WBLEDR18W, WBLEDR18W/PCS, WBLEDR18W/PCS2, WBLEDR18Y
WBLEDR18Y/PCS, WBLEDR18Y/PCS2, WBLEDR18YW, WBLEDR18YW/PCS
WBLEDR18YW/PCS2
