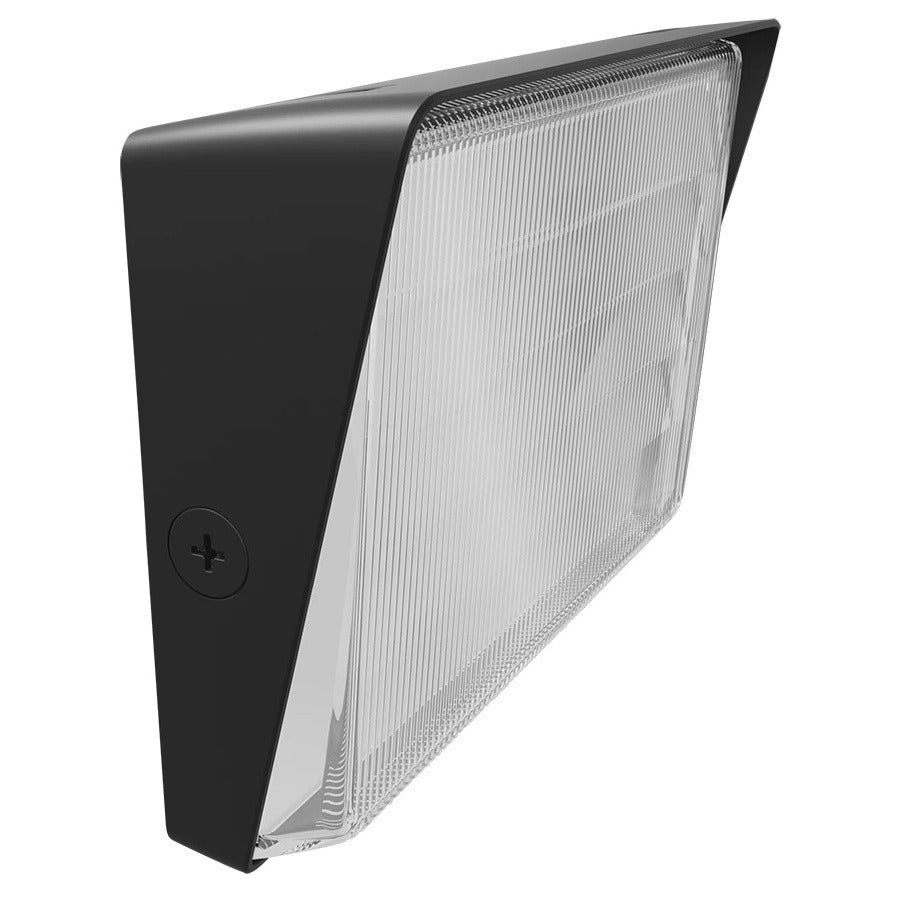

RAB Lighting W34M Field Adjustable LED Medium Wall Pack Light Fixture Dimmable 400W MH / 250W HPS Equivalent
RAB Lighting W34M Field Adjustable LED Medium Wall Pack Light Fixture Dimmable 400W MH / 250W HPS Equivalent
-
Specsheet:
Specifications
Specifications
| Part Number# | W34M |
|---|---|
| Type of Area: | Large Retail & Open Areas, Schools, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 6,174 - 12,495 |
| Wattage: | 80 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, ANSI, Dimmable, DLC Approved, Made In America Compliant, UL Listed |
| CRI: | >75 |
| Dimensions: | 13" x 9.38" x 3.69" |
| Width: | 9.38" |
| Length: | 13" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 10.0 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
RAB Lighting's W34M LED Medium Wall Pack offers versatile and efficient lighting, equivalent to 400W MH or 250W HPS. It features field adjustable light output (80W/60W/40W) and selectable color temperatures (5000K, 4000K, and 3000K). With a 100,000-hour LED lifespan, it includes a 0-10V dimming driver, integrated photocell, and robust die-cast aluminum housing. Suitable for wet locations, UL-listed, DLC-listed, and Trade Agreements Act compliant, this fixture ensures reliable performance and energy savings.
Features:
• Field Adjustable Light Output: 80W/60W/40W (factory default 80W)
• Color temperature selectable by 5000K, 4000K, and 3000K
• UL Listed: Suitable for wet locations
• Trade Agreements Act Compliant
• DLC Listed
• Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC
dimming circuit. Dims down to 10%
• Integrated photocell included with on/off switch
• 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Long-life, high-efficacy, surface-mount LEDs
• Die-cast aluminum housing
• Glass lens
• Specular aluminum reflector
• The minimum starting temperature is -40°C (-40°F)
