RAB Lighting VXBRLED13 13 Watt LED Wall Vaporproof Fixture with Guard - Choose Uplight or Downlight Fixture
RAB Lighting VXBRLED13 13 Watt LED Wall Vaporproof Fixture with Guard - Choose Uplight or Downlight Fixture
-
Specsheet:
Specifications
Specifications
| Part Number# | VXBRLED13 |
|---|---|
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 507-729 |
| Ballast Factor: | 1.00 |
| Wattage: | 13 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Lighting Facts, LM79 / LM80, Made In America Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 65 (4900K) >80 (4000K and 3000K) |

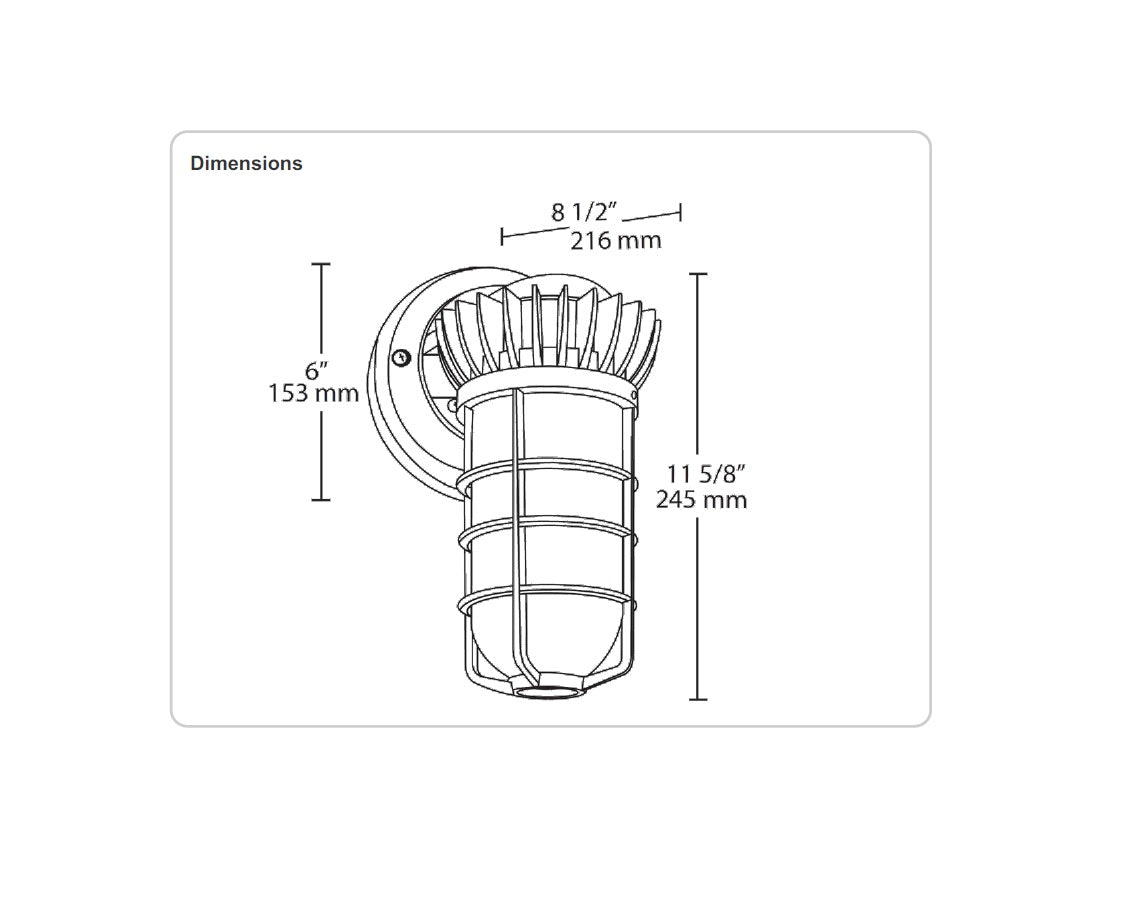

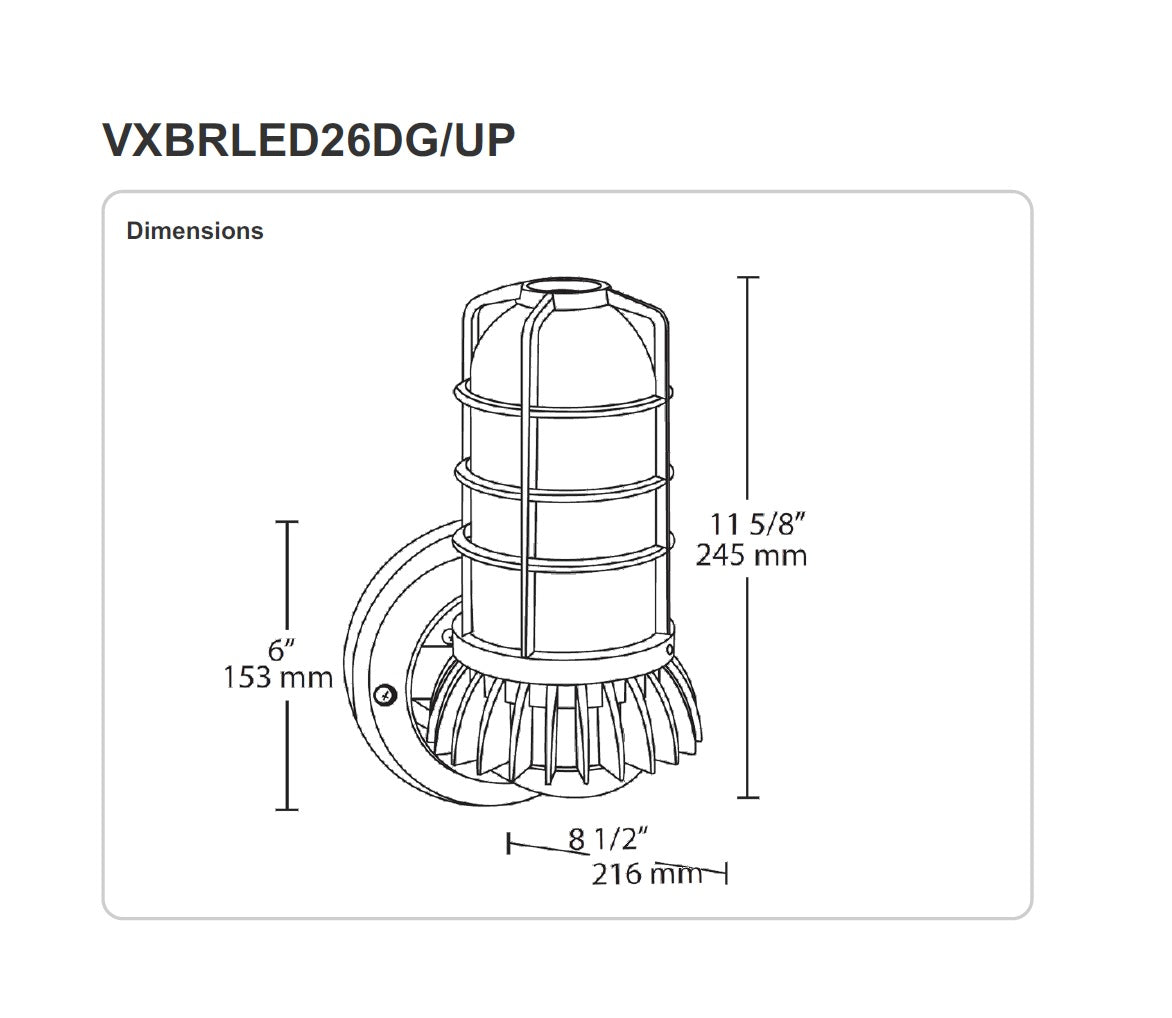

| Dimensions: | 11.625" x 8.50" |
| Width: | 8.50" |
| Length: | 11.625" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
This 13 watt LED Vaporproof fixture is a high performing and energy efficient LED option with die cast guard available as either an uplight or downlight. It replaces 13-23W CFl or 25-60W Incandescent vaporproofs. Designed with superior thermal management and a durable die-case aluminum construction with a thermal shock-resistant frosted glass globe. Incredible fixture life of 100,000 hours and a 5 year warranty!
Listings:
• UL Listing: Suitable for wet locations as downlight. Suitable for wet locations as uplight with mounting within 1.2m (4ft) off the ground.

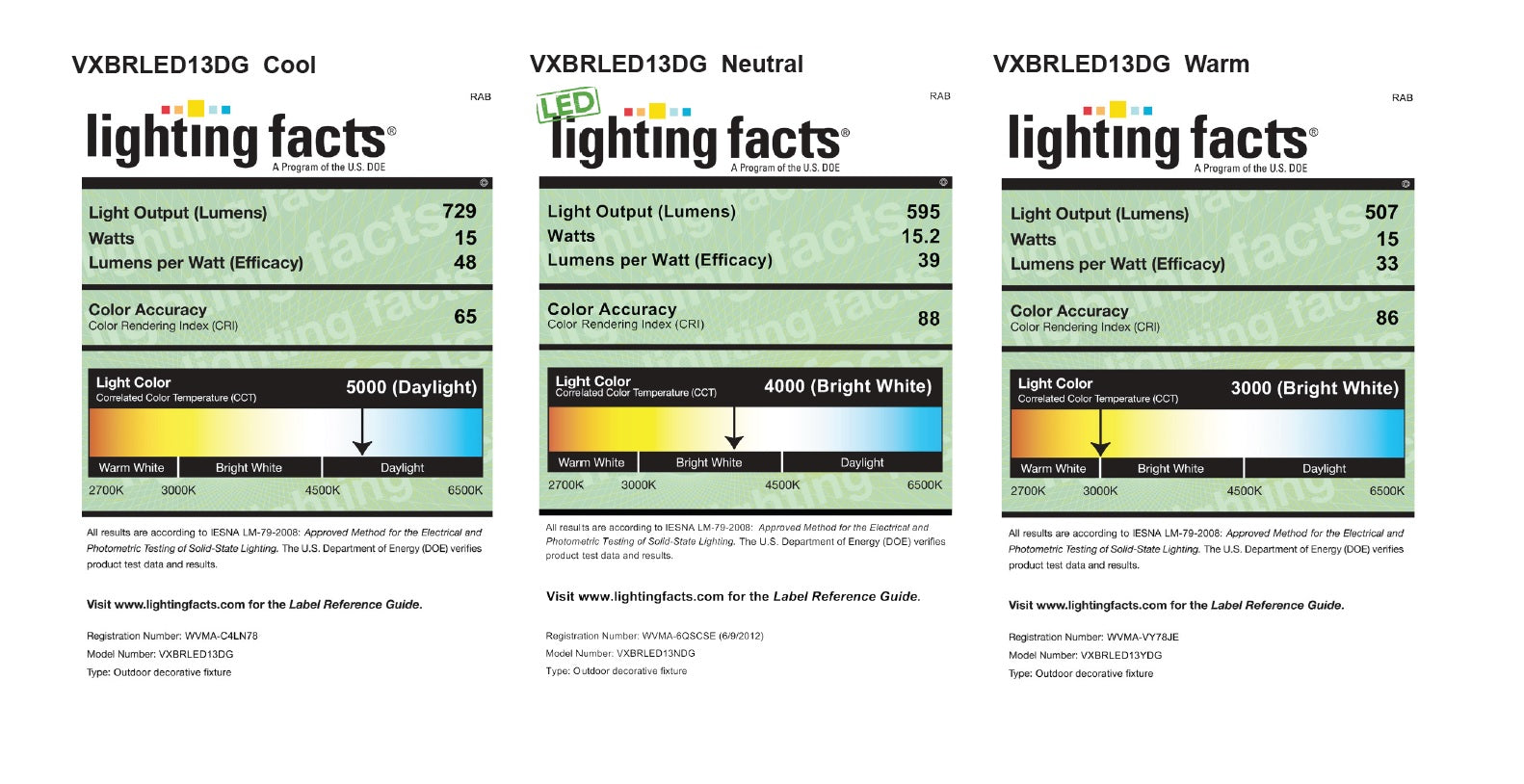

• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• California Title 24: LVAPOR complies with California Title 24 uilding and electrical codes.
LED Characteristics:
• LEDs: Multi-chip, 26W high-output, long life LED
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.
Construction:
• Globes and Guards: Vaporproof LEDs are compatible with RAB Globes and Guards.
• Cold Weather Starting: Minimum starting temperature is -40°F / -40°C.
• Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
• Housing: Die-cast aluminum construction.
• Mounting: (3) 1/2" NPS conduit entry points.
• Gaskets: High-temperature silicone.
• Green Technology: RAB LEDs are Mercury and UV Free, and RoHS compliant.
Model Numbers:
VXBRLED13DG, VXBRLED13DG/PCS, VXBRLED13DG/PCS2, VXBRLED13DG/UP,
VXBRLED13DG/UP/PCS, VXBRLED13DG/UP/PCS2, VXBRLED13DG/UP-3/4, VXBRLED13DG-3/4
VXBRLED13NDG, VXBRLED13NDG/PCS, VXBRLED13NDG/PCS2, VXBRLED13NDG/UP
VXBRLED13NDG/UP/PCS, VXBRLED13NDG/UP/PCS2, VXBRLED13NDG/UP-3/4
VXBRLED13NDG-3/4, VXBRLED13YDG, VXBRLED13YDG/PCS, VXBRLED13YDG/PCS2
VXBRLED13YDG/UP, VXBRLED13YDG/UP/PCS, VXBRLED13YDG/UP/PCS2
VXBRLED13YDG/UP-3/4, VXBRLED13YDG-3/4
