RAB Lighting VANLED20 20 Watt Vandal Resistant LED Canopy Light Fixture
RAB Lighting VANLED20 20 Watt Vandal Resistant LED Canopy Light Fixture
-
Specsheet:
Specifications
Specifications
| Part Number# | VANLED20 |
|---|---|
| Type of Area: | Parking Garage |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,255-2,347 |
| Ballast Factor: | 1.00 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 70W HID Equivalent, DLC Approved, IP65 / IP66 / IP67, Lighting Facts, LM79 / LM80, Made In America Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 74 |

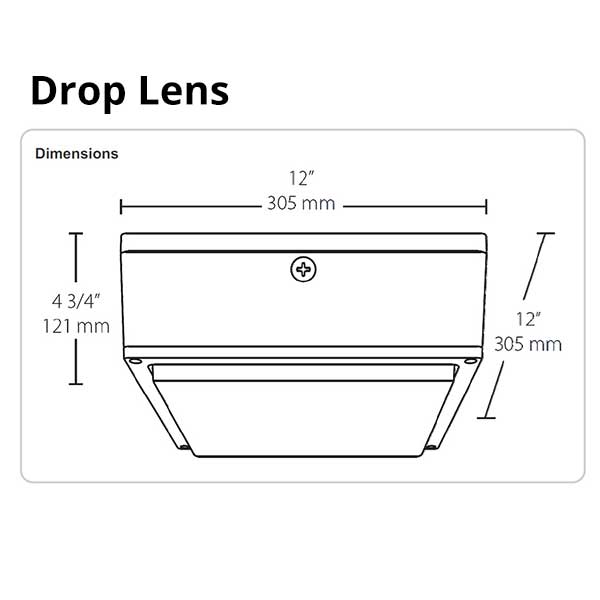

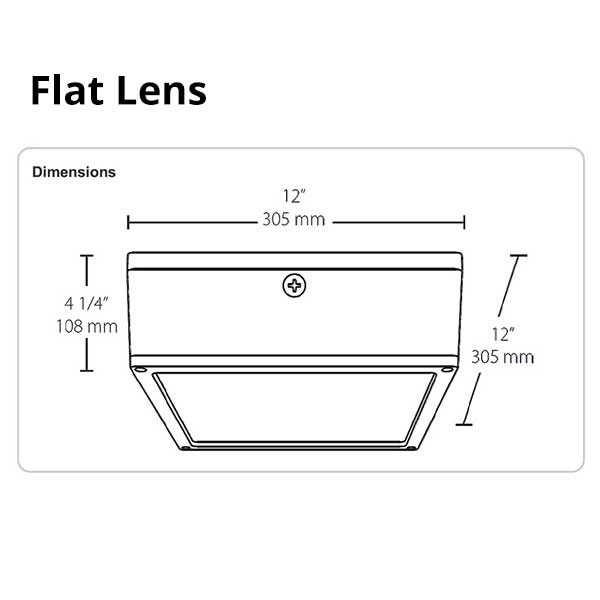

| Dimensions: | 12.00" x 12.00" x 4.75" |
| Width: | 12.00" |
| Length: | 12.00" |

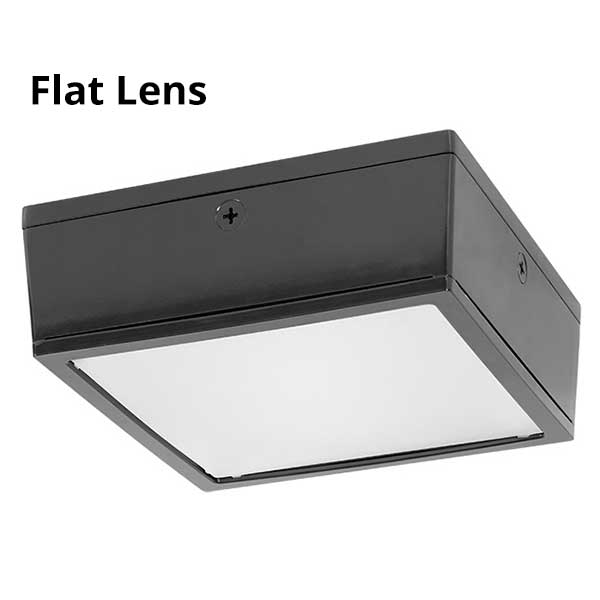

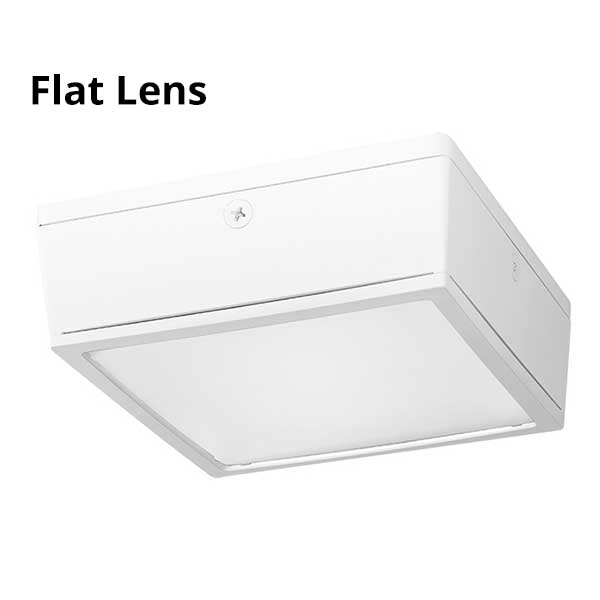

| Height: | 4.75" (Drop Lens) 4.25" (Flat Lens) |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 12.00 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's 20 Watt LED VANLED series canopy lights are an energy efficient replacement for 70 Watt Metal Halide fixtures and features a low glare, vandal-resistant, UV-resistant polycarbonate lens perfect for parking garages. The VANLED Canopy fixtures are clean, contemporary and made with a low-profile design that will fit the footprint of older canopy lights while keeping dust, bugs and water out with its IP66 rating. The fixture has a 5 year warranty and long life of 100,00 hours.
Optional Dimmable Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
Listings:
• UL Listing: Suitable for wet locations.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• Californita Title 24: See VANLED20/PCS, VANLED20/PCS2 or VANLED20MS for a 2013 California Title 24 compliant model.
LED Characteristics:
• LEDs: Discreet LEDs on PCB board.
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: RAB LEDs exceed industry standards for chromatic stability.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.
Construction:
• Cold Weather Starting: Minimum starting temperature is -40°F / -40°C.
• Ambient Temperature: Suitable for use in 40°C ambient temperatures.
• Thermal Management: Superior heat sinking with external air-flow fins.
• Housing: Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate.
• Mounting: Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points.
• Reflector: Specular polycarbonate.

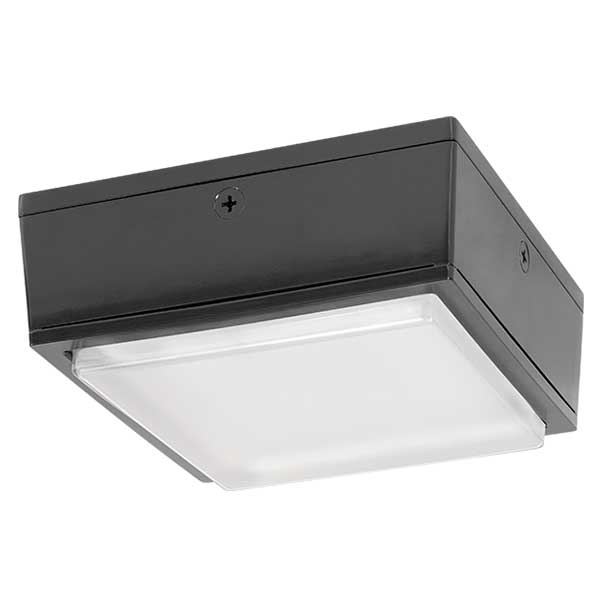

• Lens: Vandal-resistant polycarbonate textured opaque for low glare drop lens.
• Gaskets: High-temperature silicone.
• IP Rating: Ingress Protection rating of IP66 for dust and water.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
Model Numbers:
VANLED20, VANLED20F, VANLED20FW, VANLED20N, VANLED20NF, VANLED20NFW
VANLED20NW, VANLED20W, VANLED20Y, VANLED20YF, VANLED20YFW, VANLED20YW
VANLED20/D10, VANLED20N/D10, VANLED20Y/D10, VANLED20F/D10, VANLED20NF/D10
VANLED20YF/D10, VANLED20W/D10, VANLED20NW/D10, VANLED20YW/D10, VANLED20FW/D10
VANLED20NFW/D10, VANLED20YFW/D10, VANLED20/PCS, VANLED20N/PCS, VANLED20Y/PCS
VANLED20F/PCS, VANLED20NF/PCS, VANLED20YF/PCS, VANLED20W/PCS, VANLED20NW/PCS
VANLED20YW/PCS, VANLED20FW/PCS, VANLED20NFW/PCS, VANLED20YFW/PCS, VANLED20/PCS2
VANLED20N/PCS2, VANLED20Y/PCS2, VANLED20F/PCS2, VANLED20NF/PCS2, VANLED20YF/PCS2
VANLED20W/PCS2, VANLED20NW/PCS2, VANLED20YW/PCS2, VANLED20FW/PCS2, VANLED20NFW/PCS2
VANLED20YFW/PCS2, VANLED20MS, VANLED20NMS, VANLED20YMS, VANLED20FMS, VANLED20NFMS
VANLED20YFMS, VANLED20MSW, VANLED20FMSW, VANLED20NFMSW, VANLED20YFMSW
