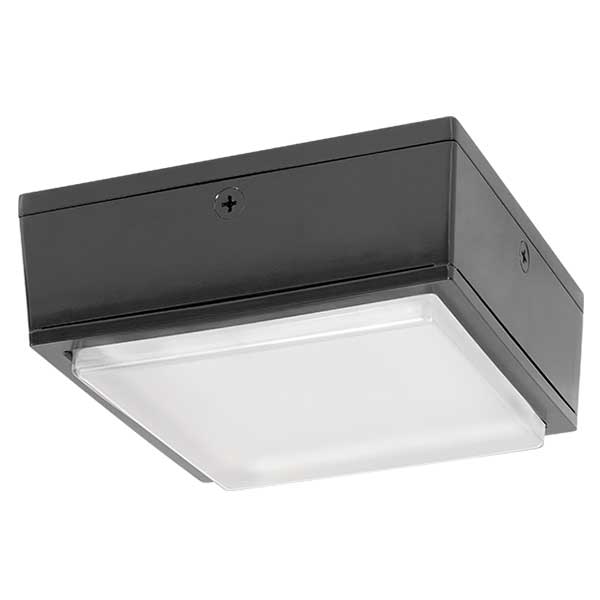

RAB Lighting VANLED10 10 Watt Vandal Resistant LED Canopy Light Fixture
RAB Lighting VANLED10 10 Watt Vandal Resistant LED Canopy Light Fixture
-
Specsheet:
Specifications
Specifications
| Part Number# | VANLED10 |
|---|---|
| Type of Area: | Parking Garage |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,417-1,460 |
| Ballast Factor: | 1.00 |
| Wattage: | 10 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 50W HID Equivalent, IP65 / IP66 / IP67, Lighting Facts, LM79 / LM80, Made In America Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 74 |

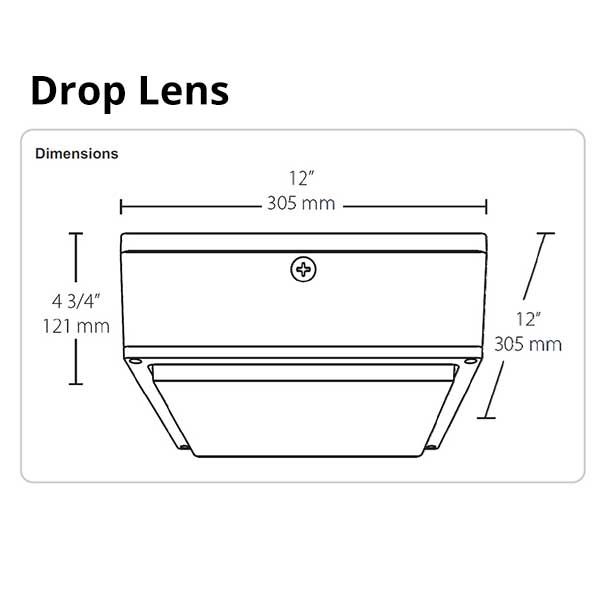

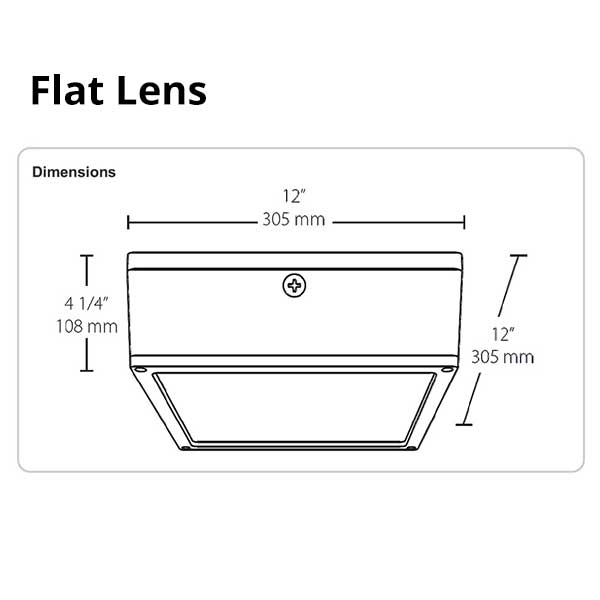

| Dimensions: | 12.00" x 12.00" x 4.75" |
| Width: | 12.00" |
| Length: | 12.00" |

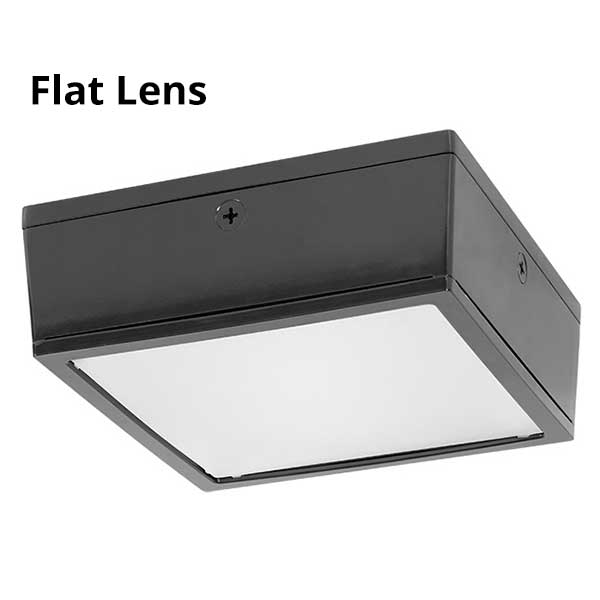

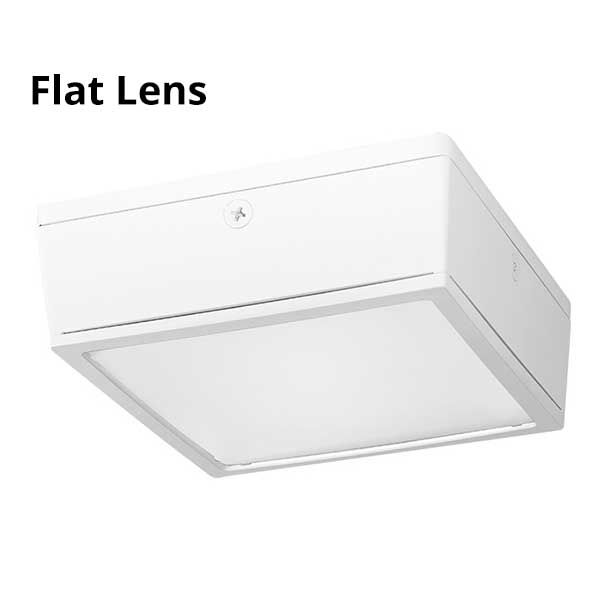

| Height: | 4.75" (Drop Lens) 4.25" (Flat Lens) |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 12.00 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's 10 Watt LED VANLED series canopy lights are an energy efficient replacement for 50 Watt Metal Halide fixtures and features a low glare, vandal-resistant, UV-resistant polycarbonate lens perfect for parking garages. The VANLED Canopy fixtures are clean, contemporary and made with a low-profile design that will fit the footprint of older canopy lights while keeping dust, bugs and water out with its IP66 rating. The fixture has a 5 year warranty and long life of 100,00 hours.
Listings:
• UL Listing: Suitable for wet locations.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• Californita Title 24: See VANLED10/PCS, VANLED/PCS2 or VANLED10MS for a 2013 California Title 24 compliant model.
LED Characteristics:
• LEDs: Discreet LEDs on PCB board.
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: RAB LEDs exceed industry standards for chromatic stability.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.
Construction:
• Cold Weather Starting: Minimum starting temperature is -40°F / -40°C.
• Ambient Temperature: Suitable for use in 40°C ambient temperatures.
• Thermal Management: Superior heat sinking with external air-flow fins.
• Housing: Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate.
• Mounting: Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points.
• Reflector: Specular polycarbonate.
• Lens: Vandal-resistant polycarbonate textured opaque for low glare drop lens.
• Gaskets: High-temperature silicone.
• IP Rating: Ingress Protection rating of IP66 for dust and water.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
Model Numbers:
VANLED10, VANLED10F, VANLED10FW, VANLED10N, VANLED10NF, VANLED10NFW
VANLED10NW, VANLED10W, VANLEDY, VANLED10YF, VANLED10YFW, VANLED10YW
