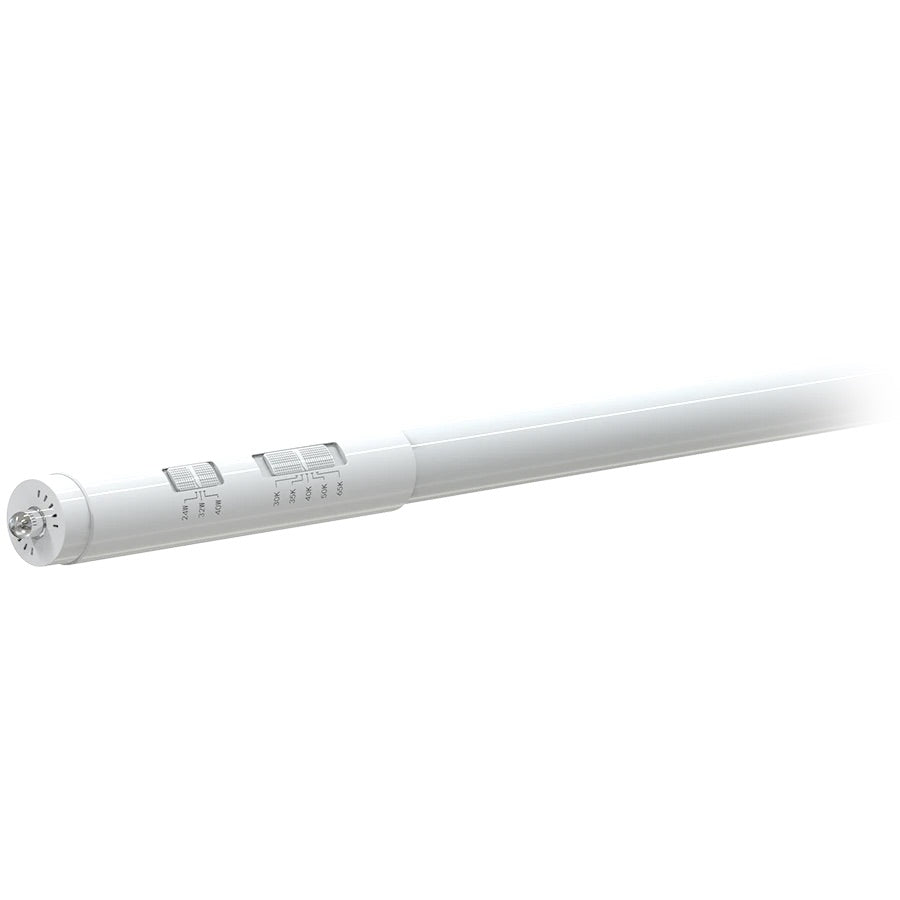

RAB Lighting T8-96G-DE-BYP 24/32/40W Double Ended Type B Linear Tube Selectable Lamp
RAB Lighting T8-96G-DE-BYP 24/32/40W Double Ended Type B Linear Tube Selectable Lamp
-
Specsheet:
Specifications
Specifications
| Part Number# | T8-96G-DE-BYP |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,418 - 5,481 |
| Wattage: | 24/32/40W |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, DLC Approved, FCC Compliant, NSF, ROHS, UL Listed |
| CRI: | 82 |
| Dimensions: | 93.81" (MOL) x 1.06" (MOD) |
| Width: | 1.06" |
| Length: | 93.81" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Weight Each: | 1.3 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
| Fixture Length: | 8 Feet / 96 Inches |
Details
Details
ShineRetrofits Input:
The RAB T8-96G-DE-BYP is an 8FT Type B double-ended LED linear tube lamp with field-adjustable wattage and color temperature. It offers selectable wattage options of 24W, 32W, and 40W and CCT options from 3000K to 6500K. Designed as a replacement for T8 and T12 fluorescent tubes, it features an integral driver for direct line voltage wiring without a ballast. Includes interchangeable R17D or FA8 base types.
Features:
• Wattage Equivalent: 59/86/96W Fluorescent
• Field-adjustable power and color temperature
• Replacement for conventional fluorescent T8 and T12 linear tubes
• Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
• Interchangable base type R17D or FA8
• Double-ended wiring method
• 5-Year, No-Compromise Warranty
