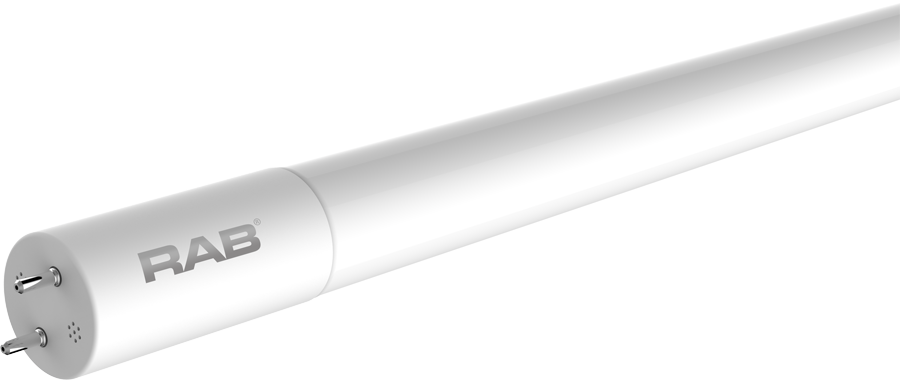

RAB Lighting T8-14-48G 14 Watt 4 Ft Ballast Bypass Linear Tube Lamp 32W Equivalent
RAB Lighting T8-14-48G 14 Watt 4 Ft Ballast Bypass Linear Tube Lamp 32W Equivalent
-
Specsheet:
Specifications
Specifications
| Part Number# | T8-14-48G |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,700 - 1,800 |
| Wattage: | 14 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, DLC Approved, FCC Compliant, NSF, ROHS, UL Listed |
| CRI: | 82 CRI |
| Dimensions: | 47.78" (MOL) x 1.02" (MOD) |
| Width: | 1.02" |
| Length: | 47.78" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Weight Each: | 0.6 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
This T8-14-48G is a 14-watt, 4-foot linear tube lamp designed to replace conventional 32W fluorescent T8 and T12 tubes. It’s easy to install with a ballast bypass setup, works with both shunted and non-shunted sockets, and delivers instant, flicker-free brightness with less than 5% flicker. This energy-efficient lamp is mercury-free, rated for enclosed fixtures, and features a durable diffusion coating to maintain consistent light quality over time. Backed by a 5-year warranty, it ensures reliable performance for light output, color stability, and driver functionality.
FEATURES:
• FLUORESCENT REPLACEMENT - Replacement for conventional fluorescent T8 and T12 linear tubes
• EASY TO INSTALL - Simply cut the ballast out, and rewire sockets directly to line voltage
• SAVE ENERGY AND MONEY - Provides same output as fluorescent but uses far less energy
• ENCLOSED FIXTURE RATED - May be used in enclosed and open fixtures
• DIFFUSION COATING - Will maintain the same light quality over time and won't yellow, shrink, or wrinkle
• BALLAST BYPASS - Internal driver eliminates the need for external ballasts or drivers
• INSTANT ON - No warmup time required, full brightness instantly
• LOW FLICKER - Less than 5% flicker
• MERCURY FREE - Environmentally friendly vs fluorescent technologies
• SHUNTED AND NON-SHUNTED - Works on shunted and non-shunted sockets
Warranty:
RAB warrants that our LED products will be free from
defects in materials and workmanship for
five (5) years from the date of delivery to the end
user, including coverage of light output, color
stability, driver performance, and fixture finish. RAB's
warranty is subject to all terms and conditions found
at rablighting.com/warranty
