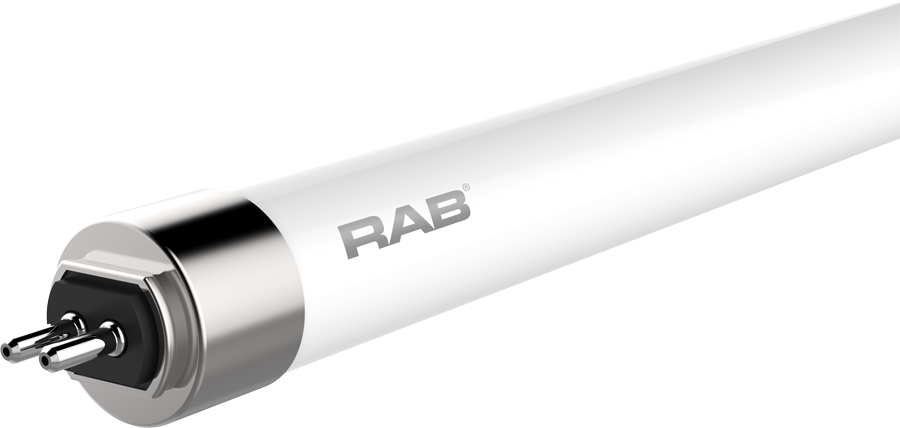

RAB Lighting T5-25-48G 25 Watt 4 Ft Ballast Bypass Double-Ended Linear Tube Lamp 54W Equivalent
RAB Lighting T5-25-48G 25 Watt 4 Ft Ballast Bypass Double-Ended Linear Tube Lamp 54W Equivalent
-
Specsheet:
Specifications
Specifications
| Part Number# | T5-25-48G-BYP |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,500 |
| Wattage: | 25 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, DLC Approved, UL Listed |
| CRI: | 82 CRI |
| Dimensions: | 45.8" (MOL) x 0.65" (MOD) |
| Width: | 0.65" |
| Length: | 45.8" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Weight Each: | 0.5 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
These T5 LED Linear Tube lamps deliver 132-140 Lumens per watt. Replace your T5 HO Fluorescent lamps and save on energy and maintenance. These work with shunted and non-shunted sockets and provide easy installation. DLC Listed with a long, 50,000 hour life.
FEATURES:
• FLUORESCENT REPLACEMENT - Replacement for conventional fluorescent T8 and T12 linear tubes
• EASY TO INSTALL - Simply cut the ballast out, and rewire sockets directly to line voltage
• SAVE ENERGY AND MONEY - Provides same output as fluorescent but uses far less energy
• ENCLOSED FIXTURE RATED - May be used in enclosed and open fixtures
• DIFFUSION COATING - Will maintain the same light quality over time and won't yellow, shrink, or wrinkle
• BALLAST BYPASS - Internal driver eliminates the need for external ballasts or drivers
• INSTANT ON - No warmup time required, full brightness instantly
• LOW FLICKER - Less than 5% flicker
• MERCURY FREE - Environmentally friendly vs fluorescent technologies
• SHUNTED AND NON-SHUNTED - Works on shunted and non-shunted sockets
