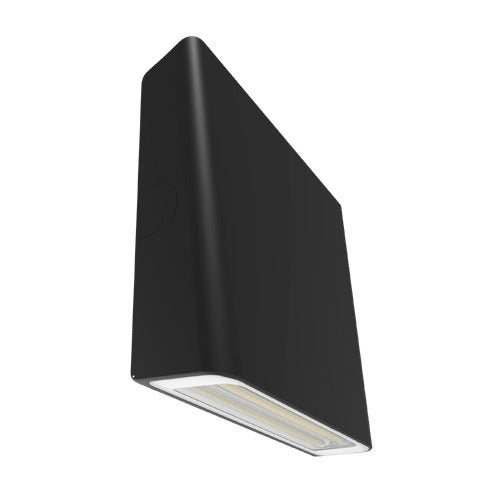

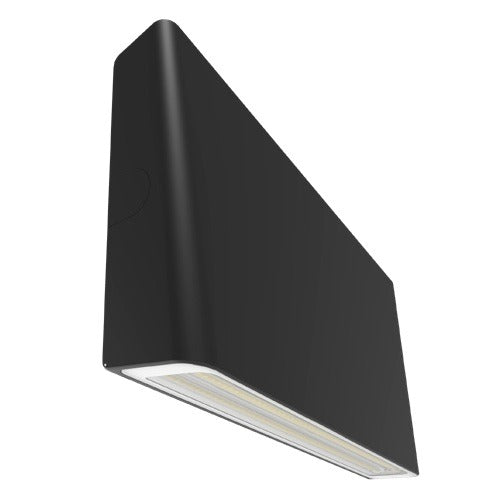

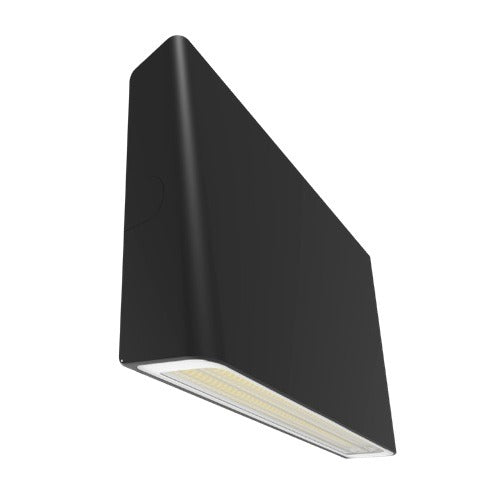

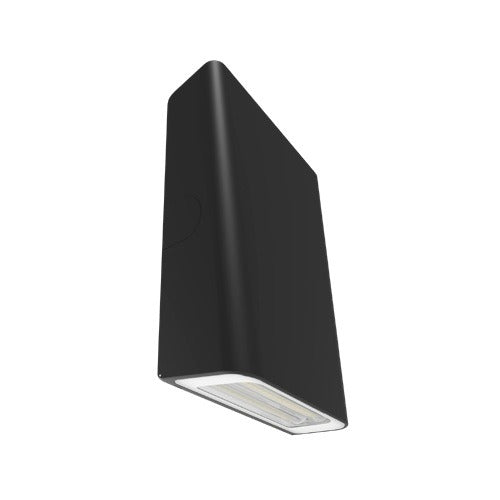

RAB Lighting SLIM Series Field-Adjustable LED Wall Pack Light Fixture with Adjustable Throw
RAB Lighting SLIM Series Field-Adjustable LED Wall Pack Light Fixture with Adjustable Throw
-
Specsheet:
Specifications
Specifications
| Part Number# | SLIM |
|---|---|
| Type of Area: | Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 301 - 8,557 |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dark Sky Compliant, Dimmable, DLC Approved, DLC Premium, IP65 / IP66 / IP67, LM79 / LM80, UL Listed |
| CRI: | 80+ |
| Width: | 3.38" |
| Length: | 7" - 17.88" |
| Height: | 9.63" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.3 - 9.9 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
RAB Lighting's SLIM Series LED Wall Pack Light Fixture offers precision, versatility, and sustainability in a sleek, low-profile design. With adjustable wattage, color temperature (3000K/4000K/5000K), and a 5-position aiming system from -20° to +20°, it allows complete customization for applications like walkways, loading docks, and building exteriors. Its integrated photocell, IP65 rating, and full cutoff optics enhance energy efficiency while reducing light pollution. With easy installation, optional smart control compatibility, and a 5-year no-compromise warranty, the SLIM Series delivers intelligent lighting built for performance and longevity.
Features:
• Available with adjustable wattages:
XXS: 7/5/3.5W - Factory default 5W
XS: 25/18/12W - Factory default 18W
S: 38/28/18W - Factory default 28W
M: 55/41/27W - Factory default 41W
L: 60/45/29W - Factory default 45W
• Field-adjustable CCT: 3000K/4000K/5000K - Factory default 4000K
• Adjustable forward throw: -20°/-10°/0°/10°/20° - factory default 0°
• Integrated on/off photocell
• 0-10V dimming
• UL rated for wet locations
• IP65 rated
• 5-year, no-compromise warranty
