RAB Lighting SLED5 5 Watt Square LED Step Light Fixture
RAB Lighting SLED5 5 Watt Square LED Step Light Fixture
Specifications
Specifications
| Part Number# | SLED5 |
|---|---|
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 128-196 |
| Ballast Factor: | 1.00 |
| Wattage: | 5 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dark Sky Compliant, Lighting Facts, LM79 / LM80, Made In America Compliant, UL Listed |
| CRI: | 68 (5000K) and >80 (4000K and 3000K) |
| Dimensions: | 5.00" x 5.00" x 3.00" |
| Width: | 3.00" |
| Length: | 5.00" |
| Height: | 5.00" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Weight Each: | 1.50 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:

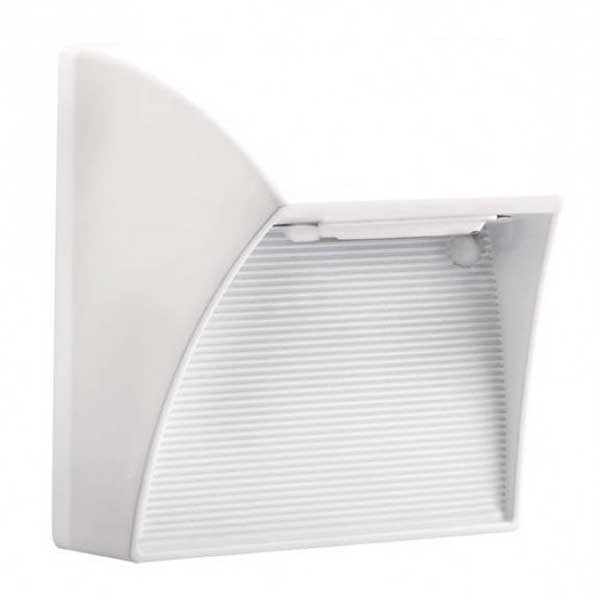

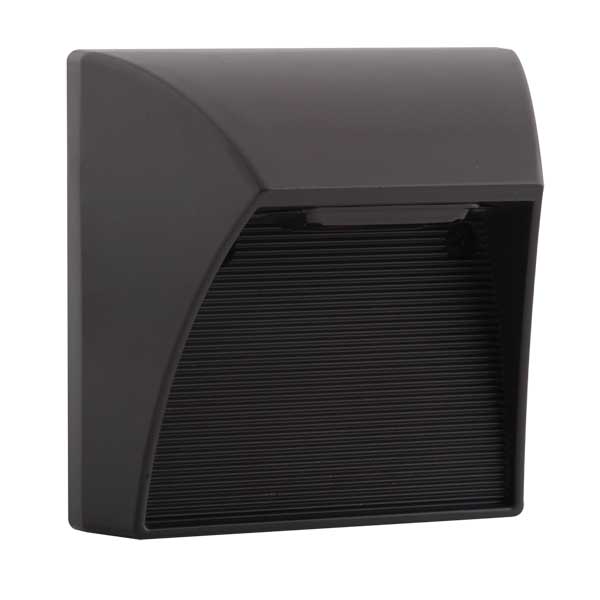

This 5 Watt square LED Step Light replaces 13 Watt CFL or 40 Watt Incandescent lights and works perfectly for decks, landscape lighting, steps, and entries. Fixture is reliable with superior heat sinking with die cast aluminum housing and is UL listed for wet locations. Available as a multivolt 120-240V or Solar 10-30V DC.
Listings:
• UL Listing: Suitable for wet locations. Suitable for mounting within 4ft. of the ground.
• Dark Sky Approved: The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.

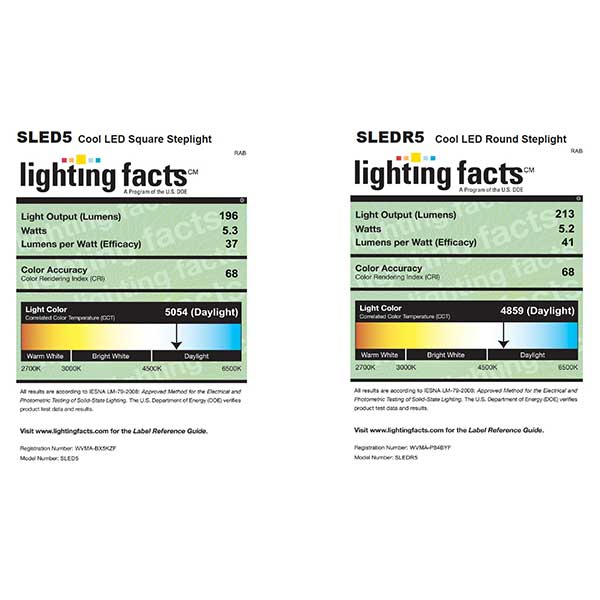

• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
LED Characteristics:
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.
Construction:
• Junction Box NOT INCLUDED
• Cold Weather Starting: Minimum starting temperature is -40°F.
• Ambient Temperature: Suitable for use in 50°C (122°F) ambientntemperatures.
• Thermal Management: Integral cast aluminum mounting pad for optimum heat sinking to ensure cool operation with maximum LED life and light output.
• Gaskets: High-temperature silicone.
• Finish: Environmentally friendly polyester powder coatings are formulated for high-durability, long-lasting color, contains no VOC or toxic heavy metals.
• Green Technology: Mercury, Arsenic and UV free.
Model Number's:
SLED5, SLED5DC, SLED5DCW
SLED5N, SLED5NDC, SLED5NDCW
SLED5NW, SLED5W, SLED5Y
SLED5YDC, SLED5YDCW, SLED5YW
