RAB Lighting RBAY22 LED Linear High Bay – Dimmable, Adjustable Wattage, Color Temp & Optics
RAB Lighting RBAY22 LED Linear High Bay – Dimmable, Adjustable Wattage, Color Temp & Optics
Specifications
Specifications
| Part Number# | RBAY22 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 14,460 - 48,221 |
| Wattage: | 320 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, 320W HID Equivalent, 400W HID Equivalent, 750W HID Equivalent, 1000W HID Equivalent, ANSI, Dimmable, DLC Premium, NSF, UL Listed |
| CRI: | >80 |

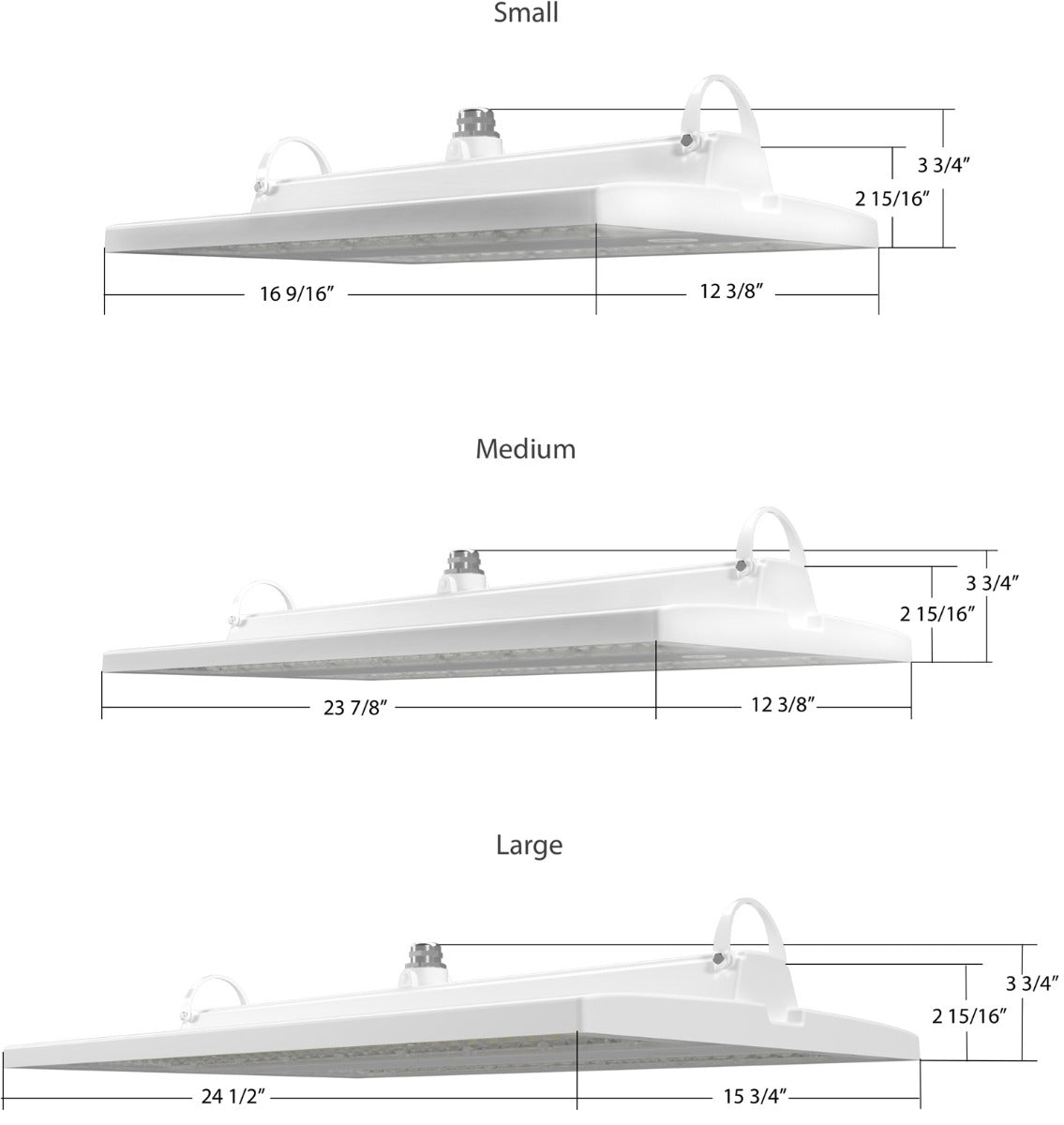

| Width: | 12.37" - 15.75" |
| Length: | 16.56" - 24.5" |
| Height: | 3.75" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 8.84 - 13.62 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The RAB Lighting RBAY22 LED Linear High Bay delivers powerful, energy-efficient lighting for industrial and commercial applications. Available in three models with selectable wattage, CCT (3500K/4000K/5000K), and beam angles, it adapts easily to any space. This dimmable fixture includes sensor compatibility with Lightcloud Blue and offers IP69K and IK10 durability ratings. Simple to install with included V-hooks and chain mounts, it provides long-lasting performance backed by a 5-year warranty.
Features:
• Available in three sizes & selectable wattages:

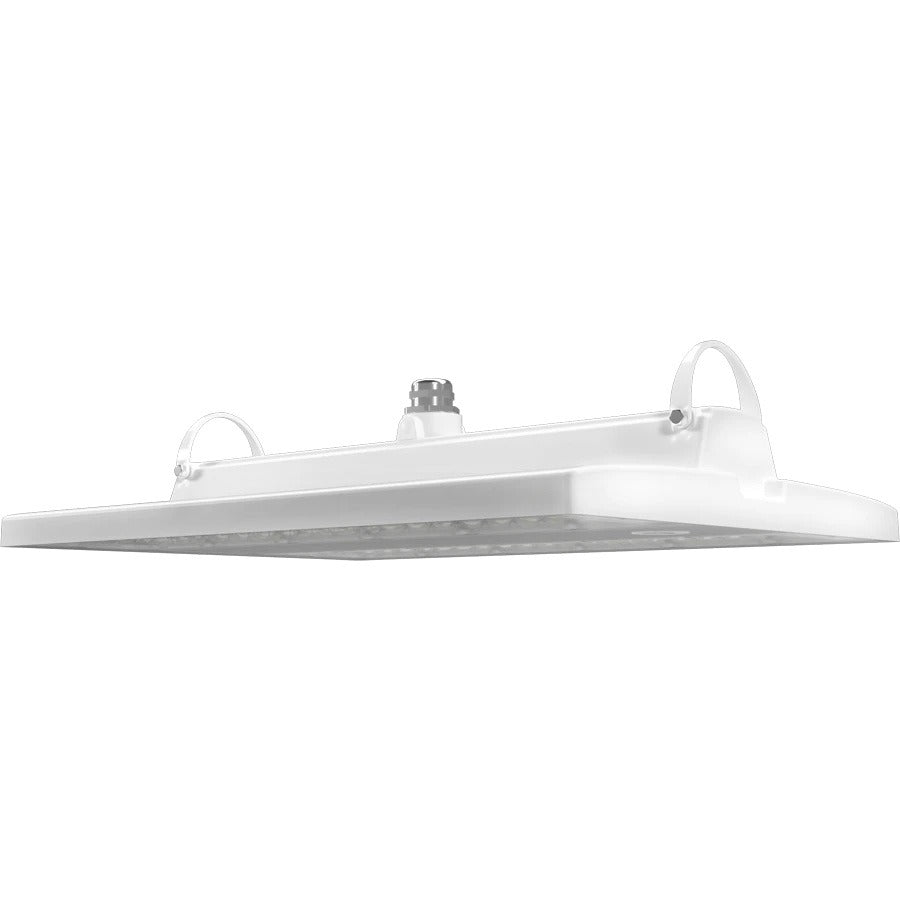

RBAY22S: 160/130/100W (Default 160W)

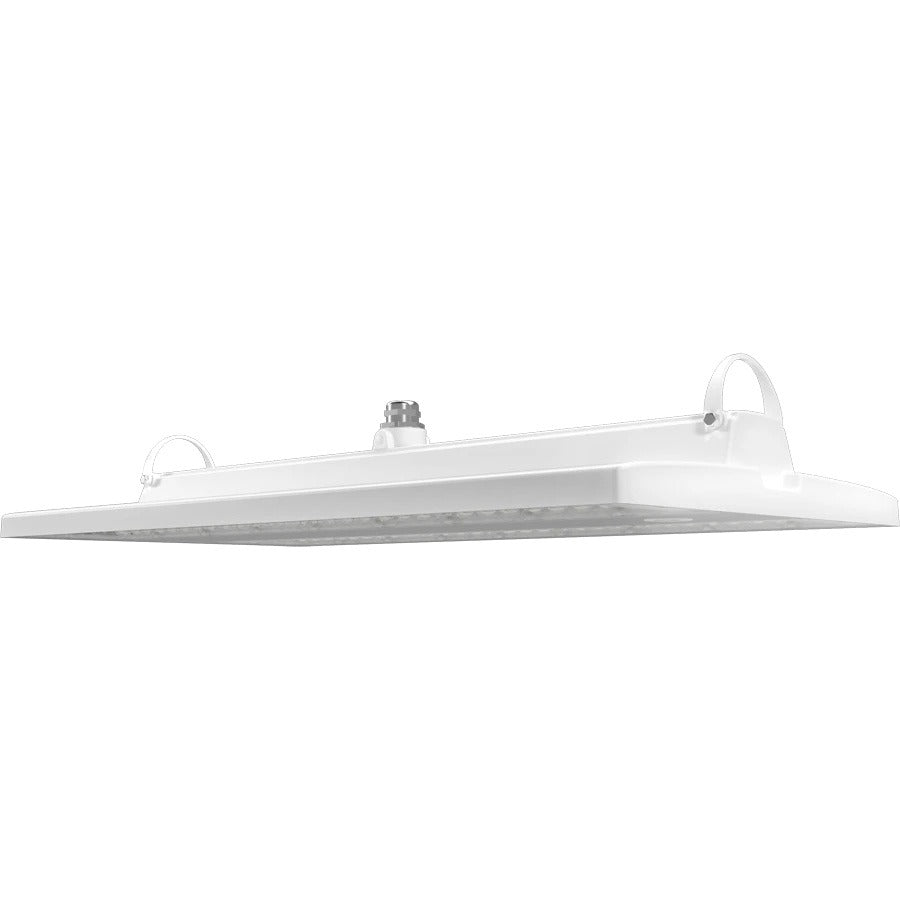

RBAY22M: 260/220/160W (Default 260W)

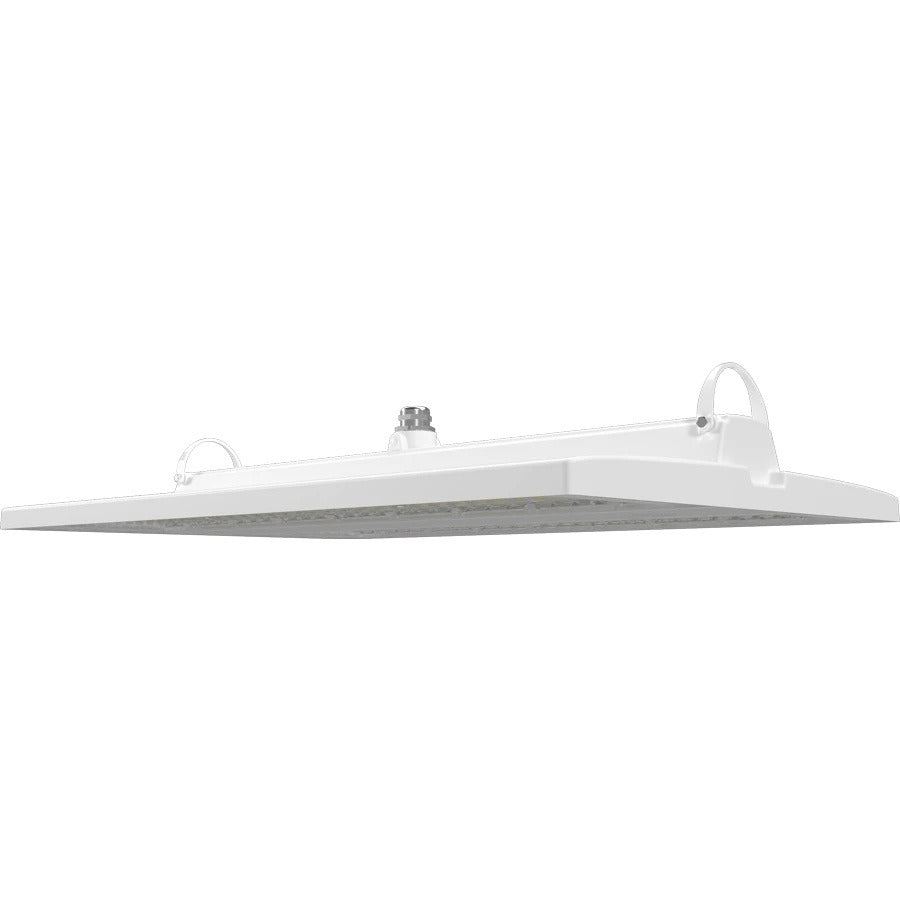

RBAY22L: 320/260/200W (Default 320W)
• CCT selectable: 3500/4000/5000K - Default CCT: 4000K
• Selectable beam angle: 55°/85°/105° (Default 85°)
• Voltage rating: 120-277V. 480V available.
• Includes a sensor port to easily install standard or Lightcloud Blue
• PIR and MVS sensors. Multi-sensor remote sold separately.
• V-hook & chain included for mounting. Pendant mount kits sold separately
• Battery backup sold separately
• IK10 & IP69K ratings
• 5-year, limited warranty
