RAB Lighting RBAY17 Field-Adjustable LED Linear High Bay With Selectable Wattage and CCT
RAB Lighting RBAY17 Field-Adjustable LED Linear High Bay With Selectable Wattage and CCT
Specifications
Specifications
| Part Number# | RBAY17S |
|---|---|
| Type of Area: | Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 12,758 - 56,258 |
| Wattage: | 400 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 1000W HID Equivalent, Dimmable, DLC Premium, UL Listed |
| CRI: | >80 |
| Width: | 9.81" - 11.81" |
| Length: | 13" - 30.69" |
| Height: | 1.81" - 2.06" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.95 - 17.9 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
RBAY17 is available in three sizes and each model comes with selectable wattages and CCTs, allowing you to customize settings onsite for super-flexible installations. Models are also available in high-output versions to meet DLC requirements for certain rebates
Features:
• Low-profile, lightweight, field-adjustable high bay
• Available in three different sizes with selectable wattage and CCT
to give you 9 SKUs in 1
• RBAY17S : 14" (130/100/80W) - Default wattage: 130W

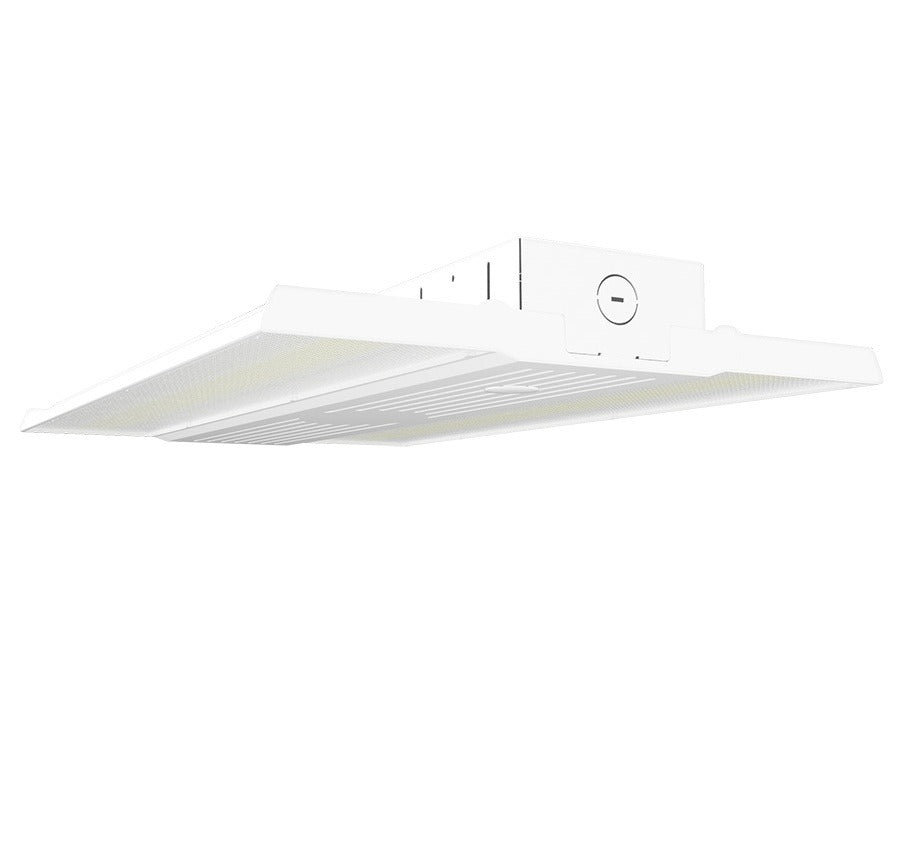

• RBAY17M: 20" (260/220/160W) - Default wattage: 260W

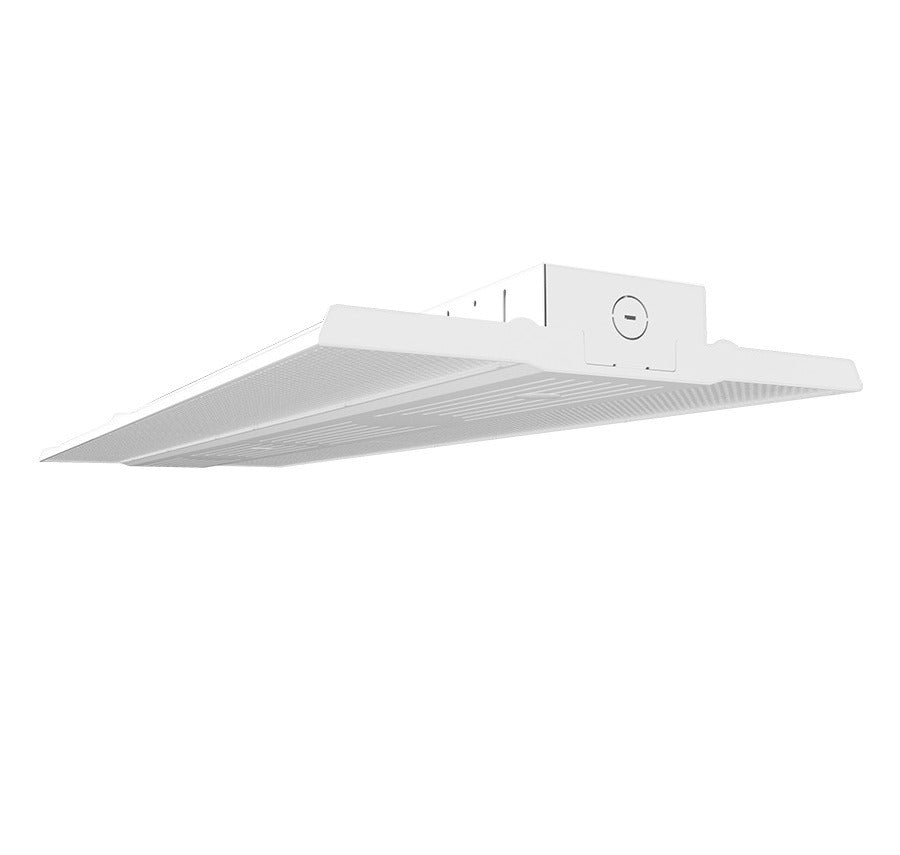

• RBAY17L: 39" (400/320/260W) - Default wattage: 400W
• CCT: 3500/4000/5000K
• Voltage rating: 120-277V. 480V available.
• Includes a sensor port to easily install standard or Lightcloud blue enabled PIR/MVS sensors. Multi-sensor remote sold separately
• Wire guards, surface and pendant mount kits available
• Battery backup available
• 5-year, limited warranty
