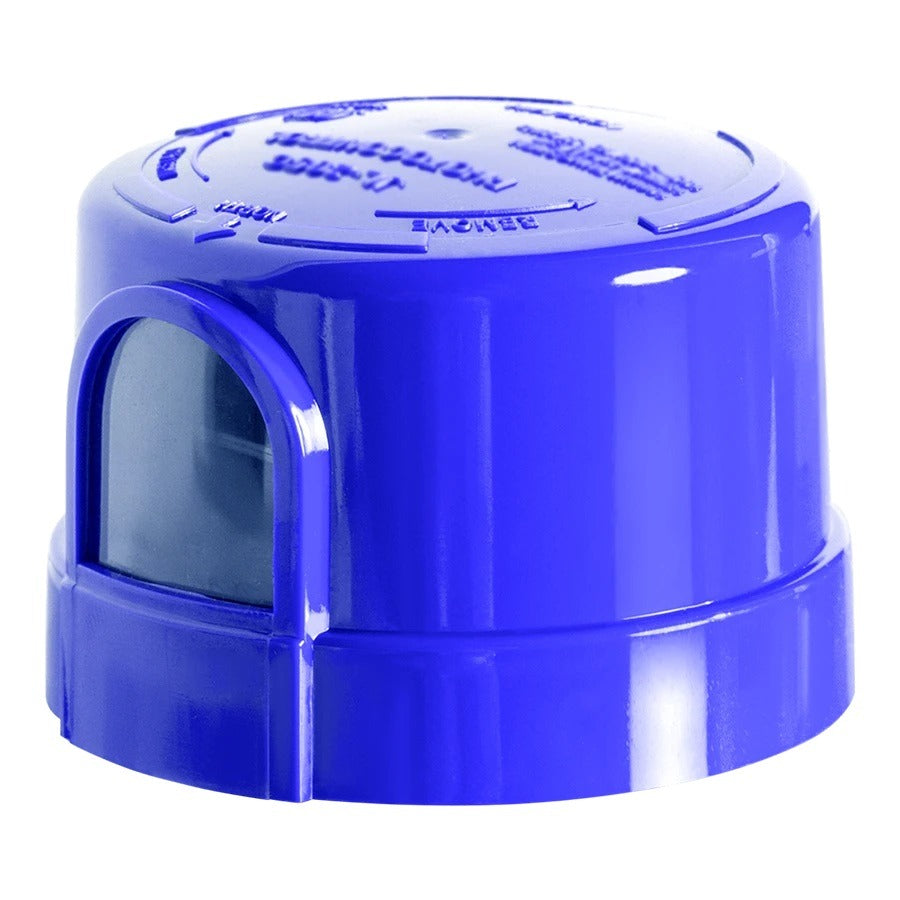

RAB Lighting R-3P-PCT 3-Pin Twist Lock Photocell for A17 Area Lights
RAB Lighting R-3P-PCT 3-Pin Twist Lock Photocell for A17 Area Lights
-
Specsheet:
Specifications
Specifications
| Part Number# | R-3P-PCT |
|---|---|
| Type of Area: | Pole / Street / Parking Lot |
| Wattage: | 0.5 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | ANSI, FCC Compliant, IP65 / IP66 / IP67, Made In America Compliant |
| Dimmable: | No |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.2 lbs |
| Manufacturer: | RAB Lighting |
Details
Details
ShineRetrofits Input:
RAB Lighting's R-3P-PCT 3-Pin Twist Lock Photocell is designed for use with A17 area lights, featuring ANSI C136.10 twist lock compatibility for easy installation. It provides positive on/off levels and customizable settings, with built-in surge protection and an IR-filtered phototransistor for reliable performance. The photocell offers fail-on and fail-off modes, housed in a UV-stabilized enclosure for long-lasting durability and color retention. Additionally, it supports a wide range of electrical loads, including 1000W tungsten and 1800VA ballasts, making it versatile and efficient.
Features:
• ANSI C136.10 Twist Lock
• Positive On/Off Levels
• Fully Customization Available
• Surge Arrester Built-In
• IR filtered Phototransistor
• Fail-On / Fail-Off Modes Available
• UV stabilized enclosure
• Zero-Cross Technology Inside
• Supports FCC Class A I Class C
• 1000W Tungsten; 1800VA Ballast; 8A@120VAC 5A@208-277VAC E-ballast
• 0.5W Max
• Formulated for high durability and long-lasting color
