RAB Lighting PS4-11-20WT 4" Square 11 Gauge 20 Ft Welded Tenon Pole Square Base
RAB Lighting PS4-11-20WT 4" Square 11 Gauge 20 Ft Welded Tenon Pole Square Base
-
Specsheet:

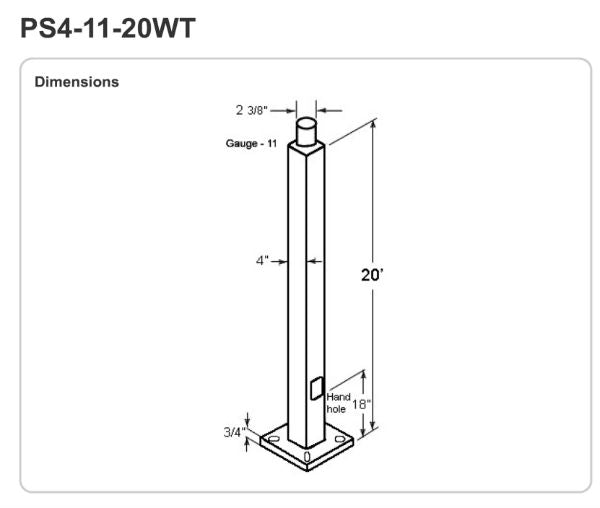

Specifications
Specifications
| Part Number# | PS4-11-20WT |
|---|---|
| Type of Area: | Pole / Street / Parking Lot |
| Ballast Start Type: | Instant Start |
| Width: | 4 inch shaft |
| Height: | 20 Feet |
| Dimmable: | No |
| Weight Each: | 138 |
| Manufacturer: | RAB Lighting |
Details
Details

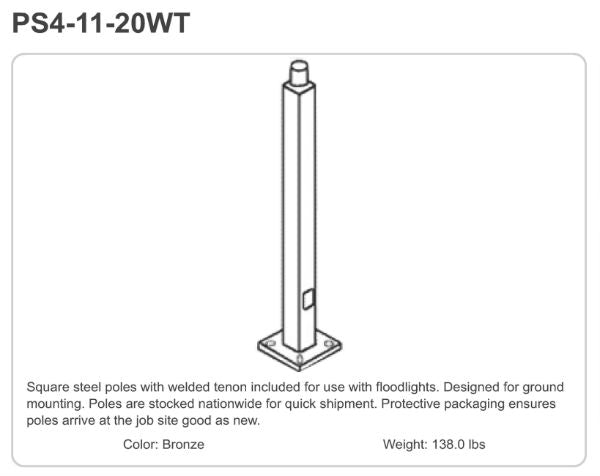

RAB Lighting PS4-11-20WT 4" Square 11 Gauge 20 Ft Welded Tenon Pole Square Base
ShineRetrofits Input:
This 20 foot 4 inch square welded tenon pole from RAB Lighting weighs 138 pounds and is CSA listed for use in wet locations. Made of 11 gauge steel, the pole is protected by a bronze powdercoat finish. And it uses galvanized anchor bolts and hardware, with all bolts having a 3-inch hook. NOTE: Forklift not provided upon delivery -- customer is responsible for removing poles from the delivery truck.
*Shaft: 46,000 p.s.i. minimum yield.
*Hand Holes: Reinforced with grounding lug and removable cover.
*Base Plates: 36,000 p.s.i. minimum yield.
*Shipping Protection: All poles are shipped in individual corrugated cartons to prevent finish damage.
*Color: Bronze powder coating
*Tenon: Welded 2 3/8" tenon included.
*Height: 20 FT.
*Weight: 138 lbs.
*Gauge: 11
*Wall Thickness: 1/8"
*Shaft Size: 4".
*Hand Hole Dimensions: 3" x 5".
*Bolt Circle: 8 1/2".
*Base Dimension: 8".
