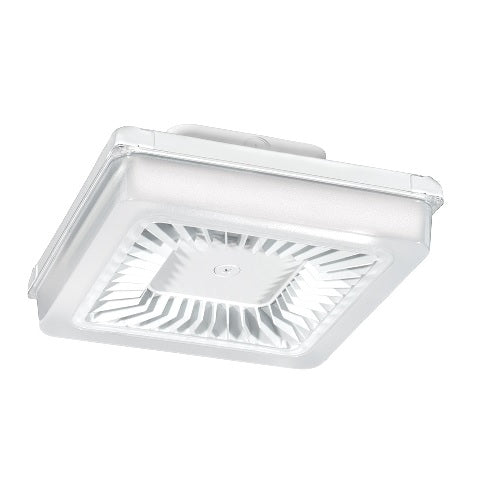

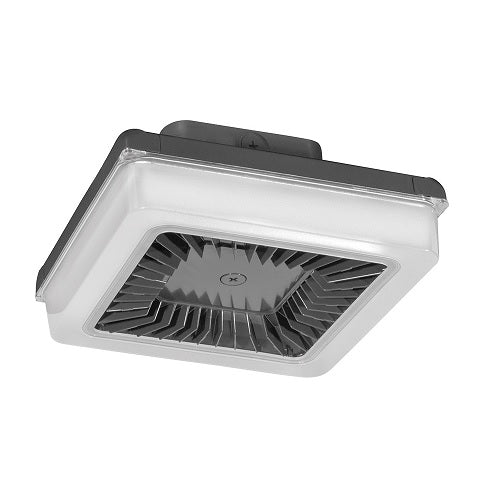

RAB Lighting PRT42 42 Watt LED Garage Light Fixture with Vandal Resistant Polycarbonate Lens
RAB Lighting PRT42 42 Watt LED Garage Light Fixture with Vandal Resistant Polycarbonate Lens
-
Specsheet:
Specifications
Specifications
| Part Number# | PRT42 |
|---|---|
| Type of Area: | Parking Garage |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 4,317-4,382 |
| Ballast Factor: | 1.00 |
| Wattage: | 42 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 100W HID Equivalent, DLC Approved, IP65 / IP66 / IP67, Lighting Facts, LM79 / LM80, Made In America Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | >70 |
| Dimensions: | 13.94" x 13.94" x 5.75" |
| Width: | 13.94" |
| Length: | 13.94" |
| Height: | 5.75" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 10.60 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's 42 Watt LED PRT series light fixtures are an energy efficient replacement for 100 Watt Metal Halide fixtures and features a low glare, vandal-resistant polycarbonate lens ideal for parking garage lighting. The PRT series was built with a unique design with 20% uplight to eliminate the "cave effect" that's common to many garage light fixtures. The fixture can be pendant or surface mounted and provides a long 100,000 hours life.
The PRT42 fixture operating with 480 Volts is NOT DLC Listed.
Optional Dimming and Multi-Level Lighting Sensor:
• Adjustable High and Low Modes: High: 0-10V, Low: 0-9.8V
• Adjustable Time Delay: Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.
• Adjustable Cut Off Delay: Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.
• Adjustable Sensitivity: None, low, medium, maximum
• Adjustable Setpoint: None, 1 to 250 fc, auto
• Adjustable Ramp Up and Fade Down Times: 1 to 60 sec.
• See Spec Sheet for more information.
• Handheld Wireless Configuration Tool: Adjust settings using handheld wireless configuration tool. Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
Listings:
• UL Listing: Suitable for wet locations.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. EXCLUDING the PRT42 operating with 480 Volts.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• Californita Title 24: See PORTO with 0-10V dimming (/D10) driver for a compliant California Title 24.
LED Characteristics:
• LEDs: Long-life, high-efficiency surface mount LEDs.
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency:73-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.
Construction:
• Cold Weather Starting: Minimum starting temperature is -40°F / -40°C.
• Ambient Temperature: Suitable for use in 40°C ambient temperatures.
• Thermal Management: Superior heat sinking with external air-flow fins.
• Housing: Precision Die-cast aluminum housing and door frame.
• Mounting: Die-cast aluminum backbox with (4) 1/2" conduit openings with plugs. Hinged tether for easy installation and wiring. Also accomodates 1/2" or 3/4" NPS pendants (provided by others).
• Reflector: Specular polycarbonate.
• Lens: Frosted polycarbonate. High-transmission and vandal-resistant.
• Gaskets: High-temperature silicone.
• IP Rating: Ingress Protection rating of IP66 for dust and water.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
Model Numbers:
PRT42, PRT30N, PRT42Y, PRT42W, PRT42NW, PRT42YW, PRT42/PCS
PRT42N/PCS, PRT42Y/PCS, PRT42W/PCS, PRT42NW/PCS, PRT42YW/PCS
PRT42/PCS2, PRT42N/PCS2, PRT42Y/PCS2, PRT42W/PCS2, PRT42NW/PCS2
PRT42YW/PCS2, PR42/D10, PRT42N/D10, PRT42Y/D10, PRT42W/D10, PRT42NW/D10
PRT42YW/D10, PRT42/480, PRT42N/480, PRT42Y/480, PRT42W/480, PRT42/480/PCS4,
PRT42N/480/PCS4, PRT42Y/480/PCS4, PRT42W/480/PCS4, PRT42/480/D10, PRT42N/480/D10
PRT42Y/480/D10, PRT42W/480/D10, PRT42NW/480/D10, PRT42YW/480/D10, PRT42N/D10/WS,
PRT42Y/D10/WS, PRT42W/D10/WS, PRT42NW/D10/WS, PRT42YW/D10/WS, PRT42/D10/WS
