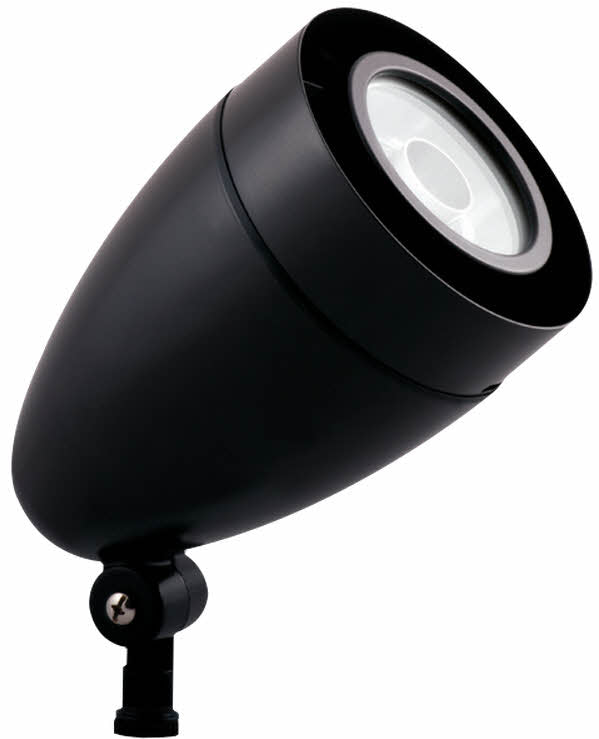

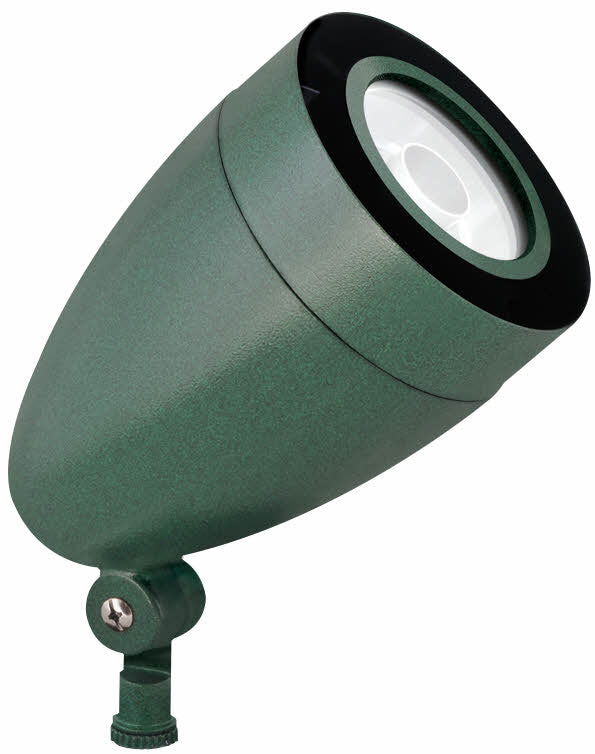

RAB Lighting’s HSLED13DC Floodlights are your choice for solar applications or other 10-30 VDC systems. A great selection for off-grid and remote-area lighting. These units are ip to 85% more efficient than line voltage AC solutions. Available in housing color choices of bronze, black, Verde green and white. The 100,000 hours LED lifespan replacement costs and thereby maintenance costs.

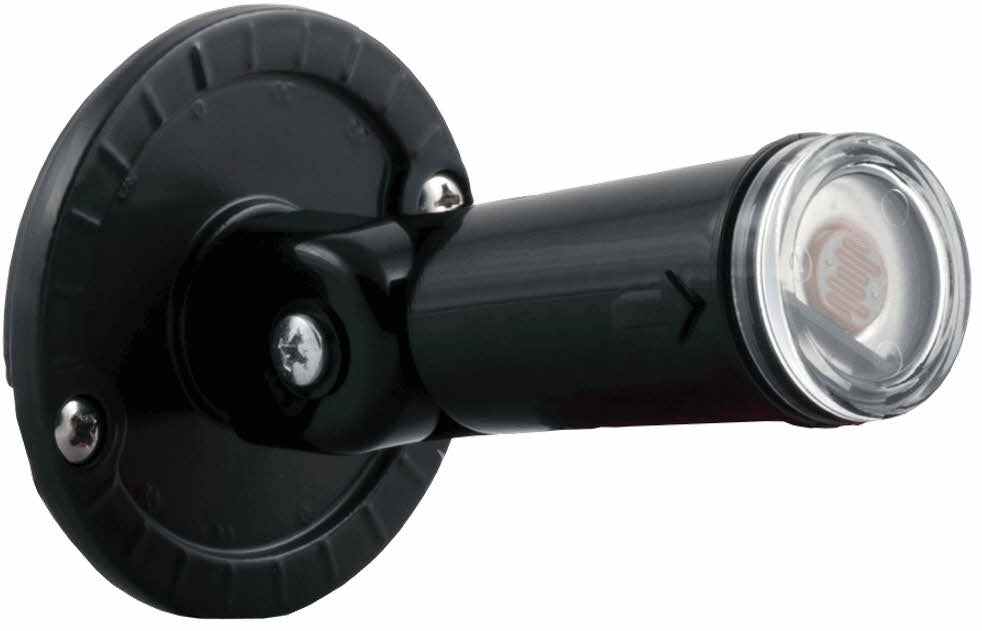

HSLED13 complies with 2013 California Title 24 building and electrical codes as a commercial outdoor non-pole-mounted fixture < 30 Watts when used with a photosensor control. Select catalog number PCS900(120V) or PCS900/277 to order a photosensor.

Listings:

•ESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.
•California Title 24: HSLED13 complies with 2013 California Title 24 building and electrical codes as a commercial outdoor non-pole-mounted fixture < 30 Watts when used with a photosensor control. Select catalog number PCS900(120V) or PCS900/277 to order a photosensor.

LED Characteristics:

•Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
•LEDs: 13 Watt high output, long-life LED.
•Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
•Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
•Color Temperature (Nominal CCT): 5000K
•Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008.

Electrical:

•Electrical Input Specifications: Max Watts = 15W. Input Volts = 10-30 VDC. Operating Amps = 1.5 - 0.5A.
•Surge Protection: 4kV

Optical:

•Spotlight Distribution: Beam Angle of 11° and Field Angle of 24° enables the HSLED to produce a very narrow spot distribution.
•Fixture Efficacy: 52 Lumens per Watt
•NEMA Type: 2H x 2v Beam Spread.

Construction:

•Cold Weather Starting: The minimum starting temperature is -30°C (-22° F).
•Thermal Management: Die-cast aluminum Thermal Management system for optimal heat dissipation. FFLED18 is designed with Air-flow technology for superior heat sinking.
•Housing: Precision die-cast aluminum housing, hood and mounting arm.
•Reflector: Specular Aluminum.
•Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
•Green Technology: Mercury and UV free, and RoHS compliant.

More:

•Trade Agreements Act Compliant: This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
•GSA Schedule: Suitable in accordance with FAR Subpart 25.4.
•California Title 24: HSLED13 complies with 2013 California Title 24 building and electrical codes as a commercial outdoor non-pole-mounted fixture < 30 Watts when used with a photosensor control. Select catalog number PCS900(120V) or PCS900/277 to order a photosensor.
•Patents: The design of the LFLOOD is protected by US patents and patents pending in Canada, China, Taiwan & Mexico.
•Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.

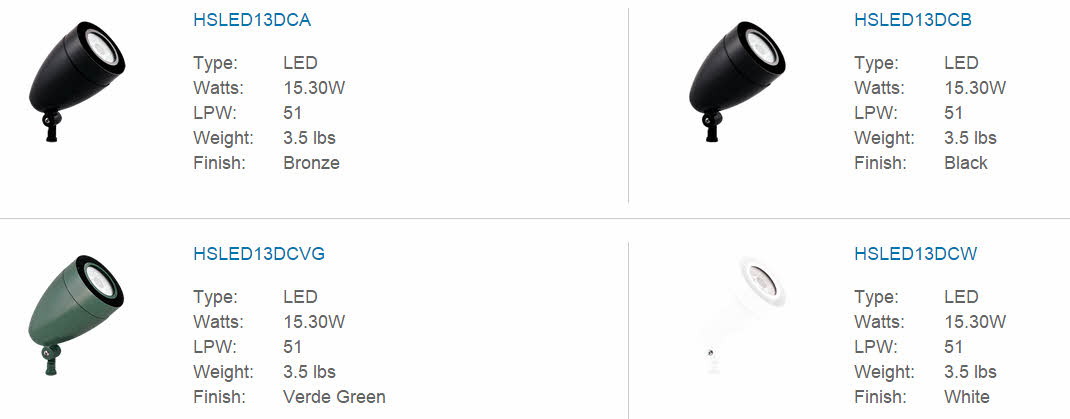

Model Numbers:
HSLED13DCA, HSLED13DCB, HSLED13DCVG, HSLED13DCW
