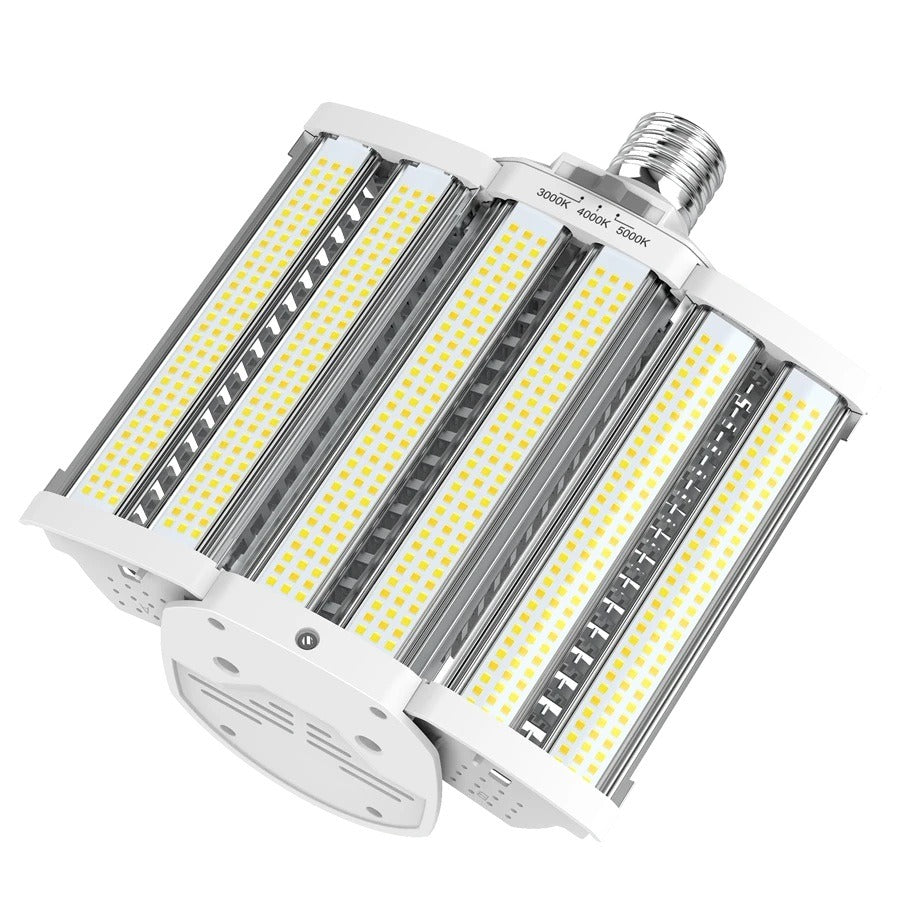

RAB Lighting HIDFA-110-H-EX39-8CCT-BYP/5SP Color Selectable 110-Watt LED Shoebox Lamp - Replaces 400W HID
RAB Lighting HIDFA-110-H-EX39-8CCT-BYP/5SP Color Selectable 110-Watt LED Shoebox Lamp - Replaces 400W HID
Specifications
Specifications
| Part Number# | HIDFA-110-H-EX39-8CCT-BYP/5SP |
|---|---|
| Type of Area: | Large Retail & Open Areas, Pole / Street / Parking Lot |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 15,400 - 16,500 |
| Wattage: | 110 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, ANSI, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | 80 |
| Width: | 4.69" |
| Length: | 7.75" - 9.06" |
| Height: | 11" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | 100V-277V |
| Weight Each: | 4.2 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's 110-watt LED shoebox retrofit lamp is designed to replace 400W HID lamps in outdoor and area lighting applications. It features field-selectable color temperatures, allowing flexible adjustment to meet specific lighting needs. With an integral driver for direct line voltage wiring, it eliminates the need for external ballasts, streamlining installation. Rated for enclosed fixtures in dry or damp locations, it also includes an AUX port for adding individual lamp-level controls, making it an efficient, adaptable upgrade for legacy HID systems.
Features:
• Replaces traditional metal halide or high pressure sodium HID lamp
• Adjustable CCT allows for in-field customization
• Integral driver enables lamp to be wired directly to line voltage without
need for an external driver or ballast
• Rated for use in enclosed fixtures in dry or damp locations
• AUX port for integrating individual, lamp-level controls
