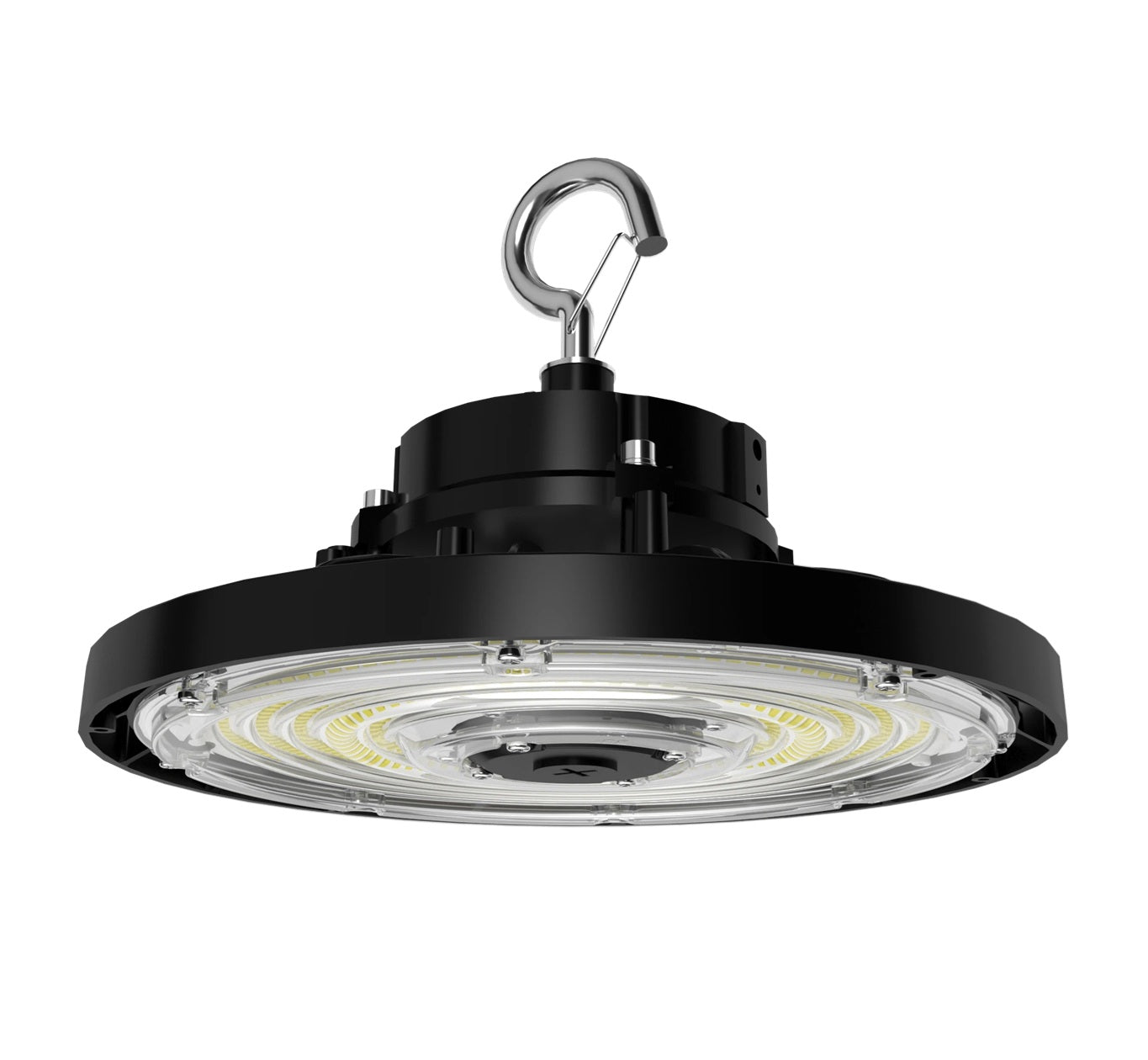

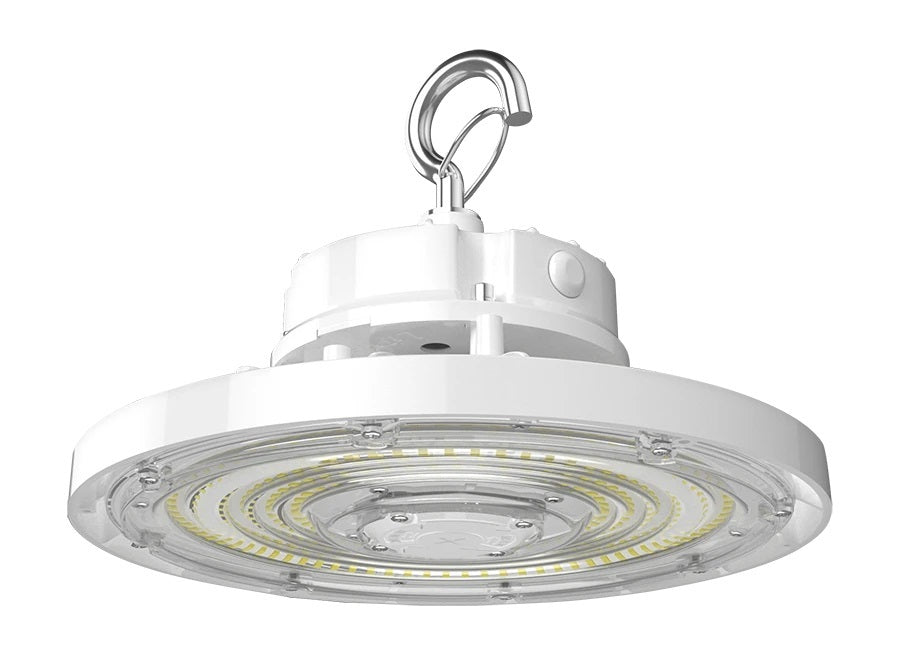

RAB Lighting H17 Series LED Field-Adjustable High Bay Dimmable Replaces up to 1000W Metal Halide
RAB Lighting H17 Series LED Field-Adjustable High Bay Dimmable Replaces up to 1000W Metal Halide
-
Specsheet:
Specifications
Specifications
| Part Number# | H17 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 9,710 - 79,203 |
| Wattage: | 500 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, 750W HID Equivalent, 1000W HID Equivalent, ANSI, Dimmable, DLC Premium, IP65 / IP66 / IP67, ROHS, UL Listed |
| CRI: | >80 |
| Length: | 10.25" - 16.56" |
| Height: | 7.38" - 12.06" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.7 - 17.4 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
RAB Lighting H17 LED High Bay is a versatile and energy-efficient lighting solution designed to replace traditional 400W to 1000W metal halide fixtures. This high bay fixture features power and color temperature (CCT) tunability, with different wattage options available based on the model (ranging from 100W to 500W). The CCT can be adjusted between 3000K, 4000K, and 5000K to suit various lighting preferences and applications. The H17 Series is DLC Premium listed, ensuring high performance and energy efficiency, and it is backed by a 5-year limited warranty for peace of mind. Whether used in warehouses, manufacturing facilities, or other large indoor spaces, the RAB Lighting H17 Series High Bay delivers reliable performance and adaptability.
Features:
• Power and CCT tunable fixture
H17S: 100/80/60W, H17: 150/120/100W,
H17XL: 240/200/160W and H17XXL: 500/400/300W
• CCT: 3000/4000/5000K adjustable
• Static CCT 4000K and 5000K option for H17 and H17XL models in 480V only
• Suitable for wet locations
• Comes with expansion port for sensors
• PIR and microwave sensor kits available
• Kits available for surface mount or pendant mount
• DLC Premium listed
• 5-years, limited warranty
• Available accessories: Aluminum and polycarbonate reflector, wireguard and drop lens available for H17S, H17, H17XL Aluminum reflector, wireguard available for H17XXL
