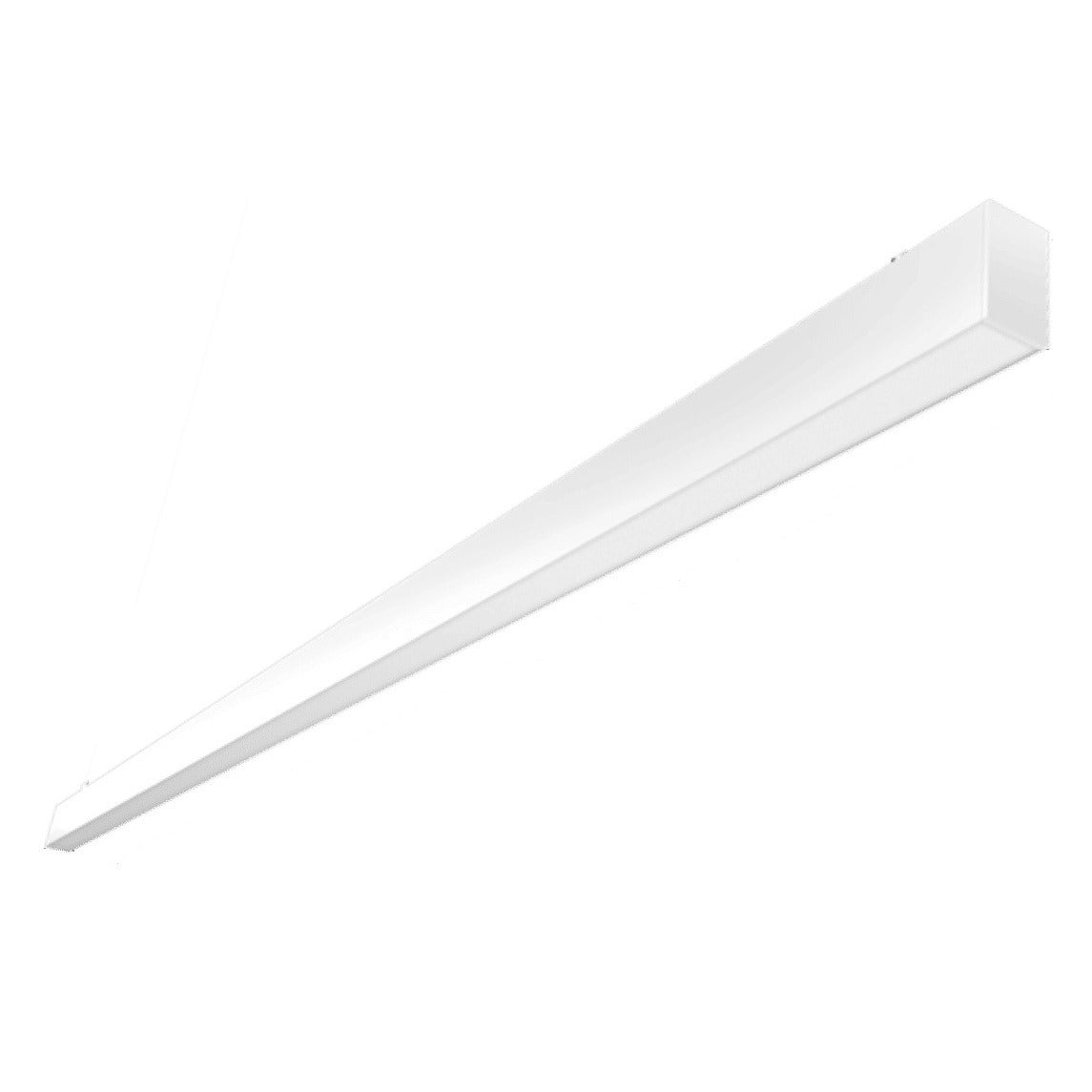

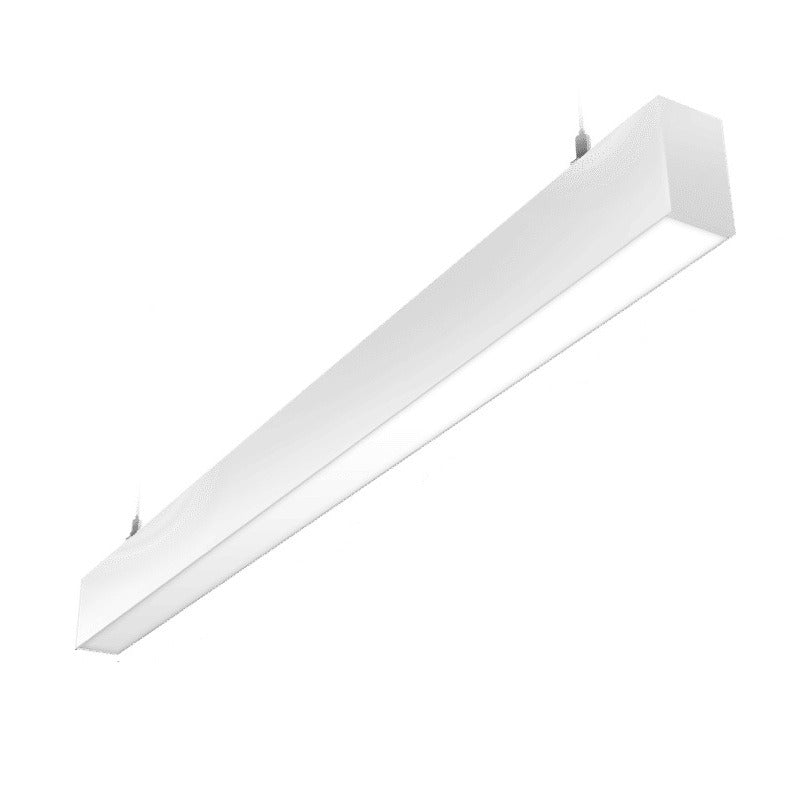

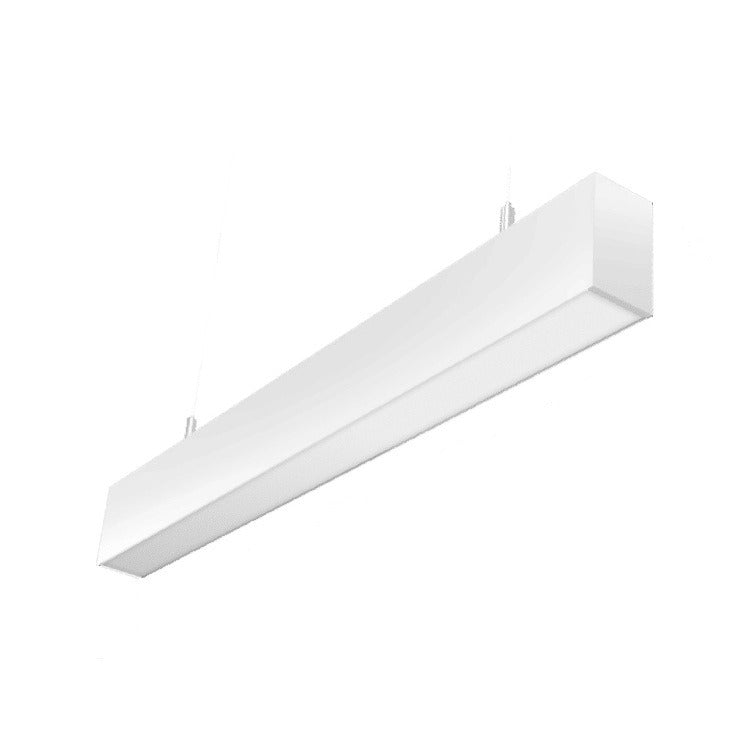

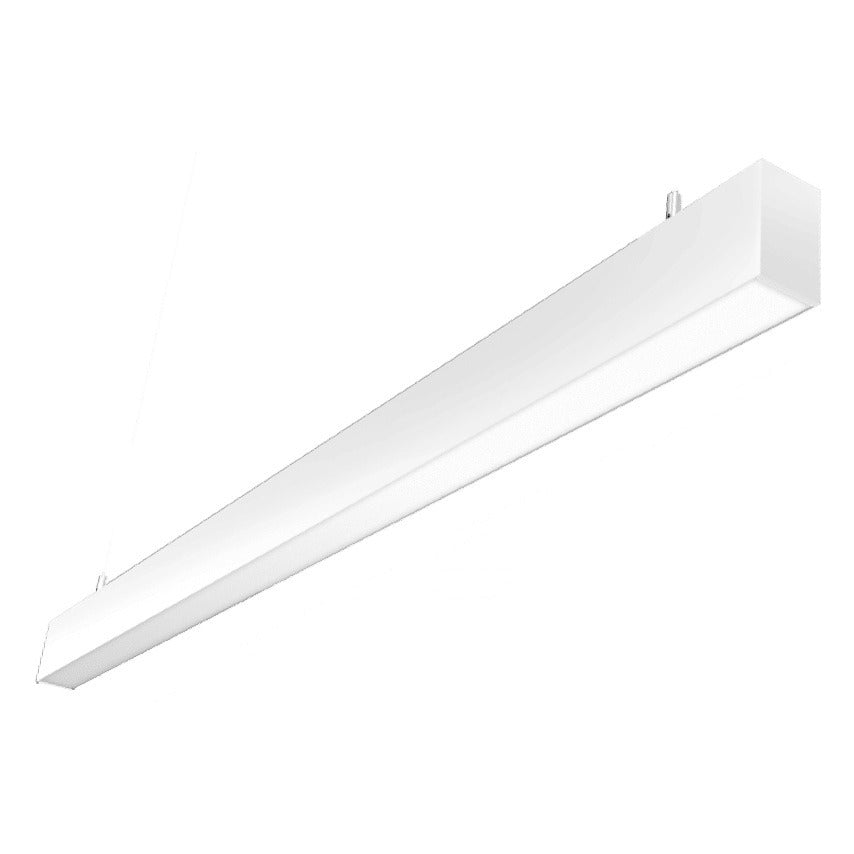

RAB Lighting BOA Series Field-Selectable LED Linear Pendant Mount Light Fixture Dimmable
RAB Lighting BOA Series Field-Selectable LED Linear Pendant Mount Light Fixture Dimmable
Specifications
Specifications
| Part Number# | BOA |
|---|---|
| Type of Area: | Large Retail & Open Areas, Schools, Hotels, Commercial Offices, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Wattage: | 80 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, Dimmable, DLC Approved, DLC Premium, LM79 / LM80, UL Listed |
| CRI: | 90+ |
| Width: | 1.75" |
| Length: | 23.63" - 94.5" |
| Height: | 3" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.78 - 9.28 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
RAB Lighting's BOA LED linear light fixture is designed for flexible and efficient performance across a range of commercial applications. Available in 2 ft, 3 ft, 4 ft, and 8 ft lengths, each model offers selectable wattages and adjustable uplight/downlight distributions, with default settings optimized for both direct and indirect lighting. It features field-adjustable color temperatures (3000K, 3500K, 4000K), operates on 120-277V, and supports smart controls with an optional multi-sensor remote. Designed for easy installation, the BOA Series offers ceiling or wall mount options, quick-link connectors for seamless runs, battery backup on select models, and high color rendering (90 CRI), all backed by a 5-year limited warranty.
Features:
• Models available with selectable wattages and uplight/downlight distributions:
2 ft: 20/14/12/10/5W
3 ft: 30/21/18/15/7.5W
4 ft: 40/28/24/20/10W
8 ft: 80/56/48/40/20W
• Default power settings:
Direct & Recessed lighting: 100% power
Indirect Light: Up/Down 30%/70% power
• Field-adjustable CCT: 3000/3500/4000K (Default: 3500K)
• Voltage rating 120-277V
• Available with smart controls. Multi-sensor remote sold separately
• Battery backup available on 4ft and 8ft models
• Ceiling and wall mount options
• Quick-link connectors available for easy, continuous runs without any tools
• All models are 90CRI
• 5-year, limited warranty
