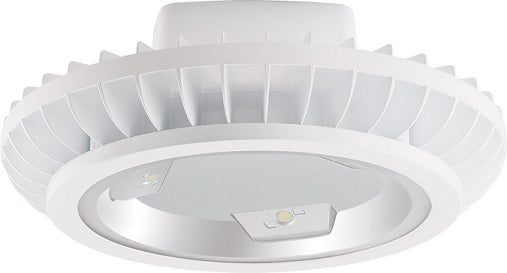

RAB Lighting BAYLED78 78 Watt LED High Bay Light Fixture with Hook and Cord White Finish
RAB Lighting BAYLED78 78 Watt LED High Bay Light Fixture with Hook and Cord White Finish
-
Specsheet:
Specifications
Specifications
| Part Number# | BAYLED78 |
|---|---|
| Type of Area: | Gym & Sports, Hangers & Storage, Industrial & Warehouse |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 7,230-7,704 |
| Ballast Factor: | 1.00 |
| Wattage: | 78 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, DLC Approved, Lighting Facts, LM79 / LM80, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 68 (5100K) >80 (4000K and 3000K) |
| Dimensions: | 18.00" x 9.375" |
| Length: | 18.00" |
| Height: | 9.375" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 21.00 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
This 78 Watt High Bay is an energy efficient replacement for 250 Watt Metal Halide systems. This high output LED High Bay fixture can be configured with bi-level operation allowing for 50% and 100% output modes for an additional cost and has a variety of color temperature options available. The fixture delivers an incredible 7,000 lumens while also reducing energy consumption up to 67%. with a 100,000 hour life. Ideal for warehouses, gymnasiums, and distibution centers.
Listings:
• UL Listing: Suitable for wet locations with cord and hook. Suitable for wet locations with 3/4" pendant stem.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
• California Title 24: See BAYLED78YW/BL for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
LED Characteristics:
• LEDs: Multi-chip, high output, long-life LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.
Construction:
• Ambient Temperature: Suitable for use in 55°C (131°F) ambient temperatures
• Thermal Management: Superior heat sinking with external air-flow fins
• Housing: Precision die-cast aluminum housing and door frame with 3-foot 600V power cord
• Mounting: Heavy-duty 3/4" NPS hook and 3-foot safety chain; is also 3/4" pendant mount-capable (pendant by others)
• Recommended Mounting Height: 25 Feet
• Lens: Tempered Glass
• Reflector: Specular vacuum metallized polycarbonate
• Gaskets: High-temperature silicone
• Finish: Our environmentally friendly polyester powder coatings are highly durable with long-lasting color, and contain no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
Model Numbers:
BAYLED78NW, BAYLED78NW/BL, BAYLED78NW/D10, BAYLED78W, BAYLED78YW/D10
BAYLED78W/BL, BAYLED78W/D10, BAYLED78YW, BAYLED78YW/BL
