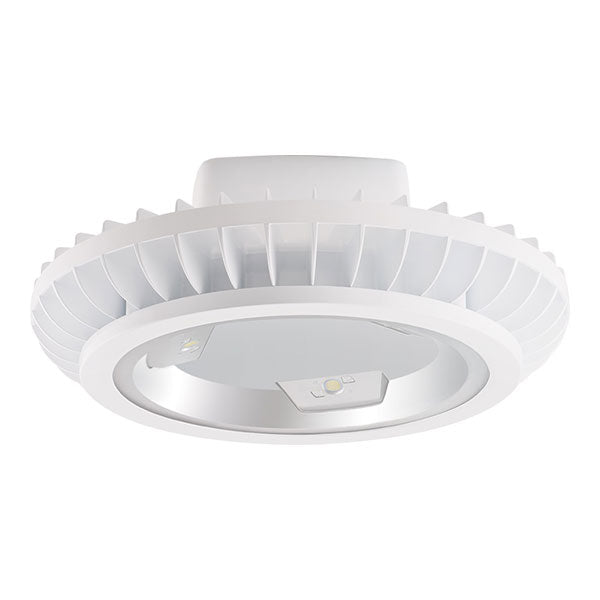

This 104 Watt High Bay is an energy efficient replacement for 320 Watt Metal Halide systems.  This high output LED High Bay fixture can be configured with bi-level operation allowing for 50% and 100% output modes or with 0-10V dimming capabilities for an additional cost.  The fixture delivers an incredible 10,000 lumens while also reducing energy consumption up to 70%. with a 100,000 hour life.  Ideal for warehouses, gymnasiums, and distibution centers.

NOTE:  The BAYLED104NW, BAYLED104W/D10, and BAYLED104W/BL high bay fixtures with 4000K color temperature, 0-10V Dimming capabilities, or Bi-Level operation are NOT DLC Approved.

Listings:
• UL Listing: Suitable for wet locations with cord and hook. Suitable for wet locations with 3/4" pendant stem.

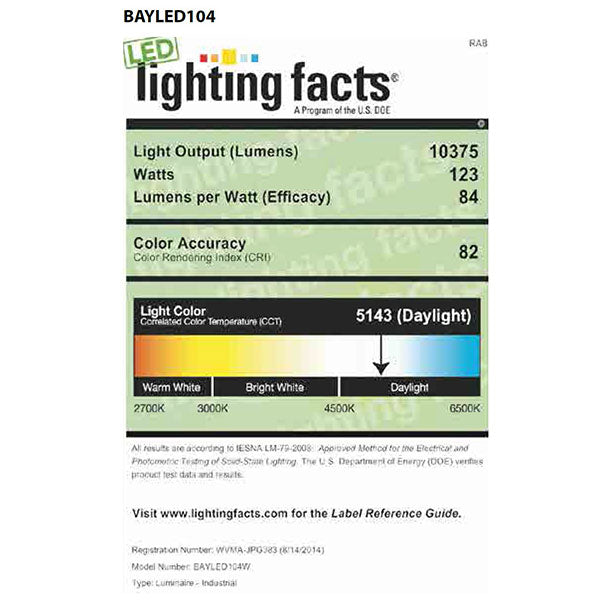

• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• DLC Listed:  This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Exlcluding the BAYLED in 4000K color temperature or with 0-10V Dimming capabilities or Bi-Level Operation.
• California Title 24:  See BAYLED104YW/BL or BAYLED104YW/D10 for a 2013 California Title 24 compliant product.  Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.

LED Characteristics:
• LEDs: Multi-chip, high output, long-life LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.

Construction:
• Ambient Temperature: Suitable for use in 55°C (131°F) ambient temperatures
• Thermal Management: Superior heat sinking with external air-flow fins
• Housing:  Precision die-cast aluminum housing and door frame with 3-foot 600V power cord
• Mounting: Heavy-duty 3/4" NPS hook and 3-foot safety chain; is also 3/4" pendant mount-capable (pendant by others)
• Recommended Mounting Height: 30 Feet
• Lens: Tempered Glass
• Reflector: Specular vacuum metallized polycarbonate
• Gaskets: High-temperature silicone
• Finish: Our environmentally friendly polyester powder coatings are highly durable with long-lasting color, and contain no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

Model Numbers:
BAYLED104NW, BAYLED104NW/BL, BAYLED104NW/D10, BAYLED104W, BAYLED104YW/D10
BAYLED104W/BL, BAYLED104W/D10, BAYLED104YW, BAYLED104YW/BL
