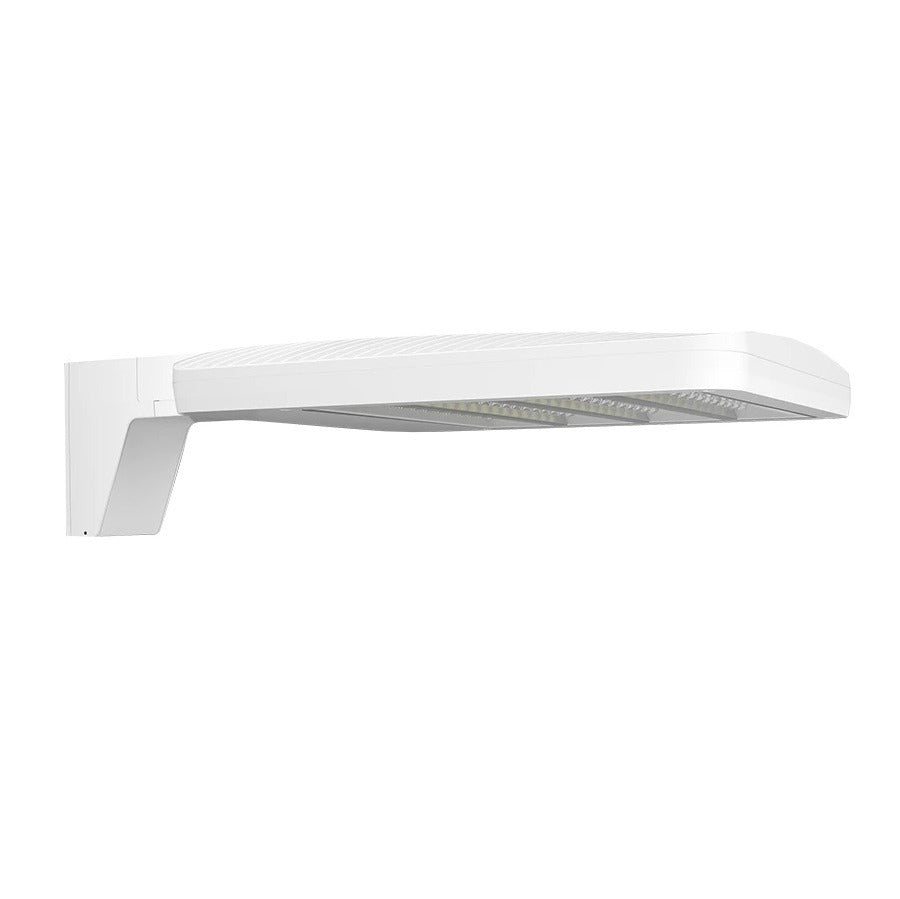

RAB Lighting ALEDM3TNW/7PR Field Adjustable Medium LED Area Light Fixture Type III Distribution Dimmable
RAB Lighting ALEDM3TNW/7PR Field Adjustable Medium LED Area Light Fixture Type III Distribution Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | ALEDM3TNW/7PR |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Wall Mount & Building Exteriors |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 10,765 - 19,672 |
| Wattage: | 150 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, ANSI, Dimmable, DLC Approved, IP65 / IP66 / IP67, LM79 / LM80, Made In America Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 22.37" x 5.78" |
| Length: | 22.37" |
| Height: | 5.78" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 32 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
RAB Lighting's ALED Field-adjustable Medium LED Area Light fixture with a Type III distribution is designed for dimmable performance. It offers the equivalent output of a 400W Metal Halide and allows for easy light output adjustment in three discrete steps, with the default setting at 150W. This fixture is ideal for various applications, built with a universal mounting arm and IP66-rated for durability. Additionally, it boasts a 100,000-hour LED lifespan, is DLC-listed and comes with a 10-year, no-compromise warranty.
Features:
• 0-10V dimmable standard
• Equivalent to 400W Metal Halide
• Field adjustable light output in 3 discrete steps: Medium Housing: 150W/90W/78W (factory default 150W)
• Universal mounting arm compatible for hole spacing patterns from 1" to 3" center to center.
• IP66 Rated
• Design Lights Consortium (DLC) listed
• Mercury and UV free. RoHS-compliant components.
• 100,000-Hour LED lifespan
• 10-Year, No-Compromise Warranty
