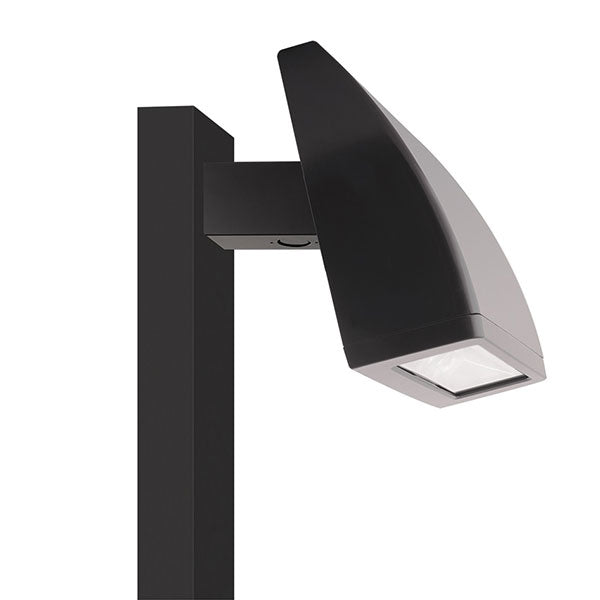

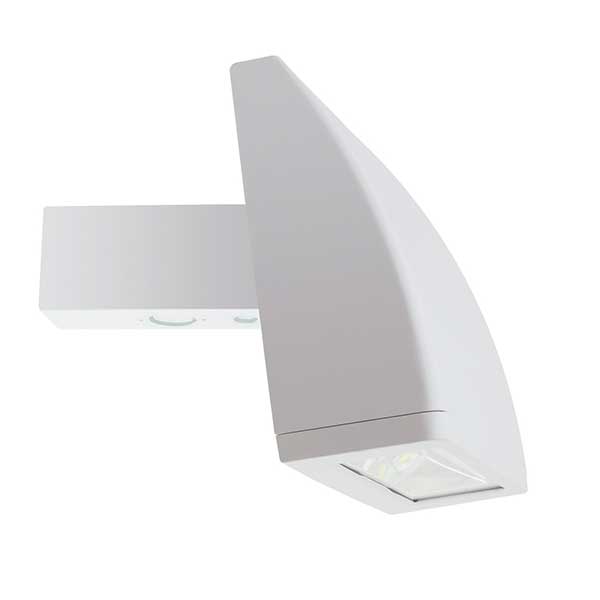

RAB Lighting's 104-watt LED Area Light fixture is an energy-efficient replacement for 320-watt HID fixtures. It provides exceptional efficiency while illuminating large areas and features a standard mount to square steel poles at 20-30 feet with up to 4 fixtures per pole.  These fixtures deliver 10,010 lumens of high-quality LED light with a 5100 color temperature, a 100,000-hour life,  and 5 year warranty.  Your choice of finishing type, operating voltage, and additional photocell options are available upon checkout.  Please select the appropriate photocell option compatible with the specified voltage.  Bilevel operation allows the fixture to operate at 50% and 100% output modes.

Note: All ALED104 fixtures with Bi-Level Operation and ALED104 fixtures with operating voltage of 480 are NOT DLC Listed.

Listings:
• UL Listing: Suitable for wet locations as Uplight and Downlight.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.  Excluding ALED104 wth Bi-level operation and 480V.

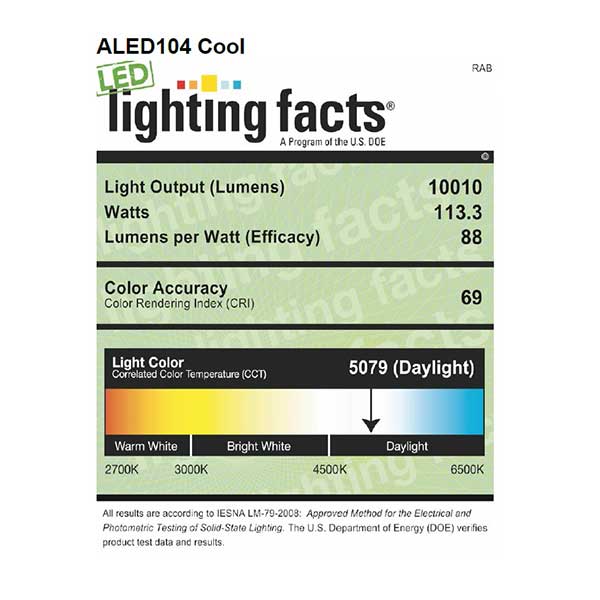

• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

 LED Characteristics:
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LEDs: Multip-chip, high-output, long-life LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377- 2011.

Construction:
• Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
• Effective Projected Area: EPA = 2
• Cold Weather Starting: The minimum starting temperature is -40°F/-40°C.
• Thermal Management: Superior thermal management with external Air-Flow fins.
• Housing: Die-cast aluminum housing, lens frame and die-cast aluminum arm with wiring access plate.
• Standard Mounting: Standard 15 Degree mount.  Die-cast aluminum wall bracked with (5) 1/2" conduit openings with plugs.  Two piece bracket with tether for ease of installation and wiring.
• Reflector: Specular, vacuum-metalized polycarbonate
• Gaskets: High-temperature silicone gaskets
• Green Technology: Mercury and UV free, and RoHS Compliant.

120-277V Electrical:
• Drivers:  Constant Current, Class 1, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 100-277V = 0.95A, Power Factor 99.7%.
• THD:  4.5% at 120V, 9.8% at 277V

480V Electrical:
• Constant Current, Class 1, 700mA, 347-480V, 50/60Hz, 4KV Surge Protection, 0.30A-0.40A, THD<20%, Power Factor 99%
• Ballast Volts: 480V

California Title 24:
ALED104/480/PCT4 for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.

Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
