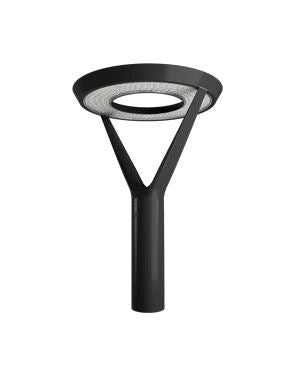

The RAB Lighting AL5 Field-Adjustable Area Light lets you select 120W, 60W or 30W output and choose 3000K, 4000K or 5000K color temperature. Factory settings are 60W and 4000K. For an outdoor lighting project, adjust output and color temperature in the field to suit the installation.

Field Adjustability

• Selectable wattage: 120/60/30W; factory default 60W.
• Selectable color temperature: 3000K, 4000K and 5000K; factory default 4000K.

Compliance

• UL Listed: Suitable for wet locations.
• IESNA LM-79 and LM-80 testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• IP65 ingress protection against dust and water.
• Mercury and UV free, with RoHS-compliant components.
• DLC: This product family is listed with the DesignLights Consortium. Individual SKUs may carry DLC Standard or DLC Premium qualification. Confirm the qualification status of the specific SKU using its specification sheet or the DLC Qualified Products List at designlights.org before specification or purchase.

LED Characteristics and Performance

• Long-life, high-efficacy, surface-mount LEDs.
• Color stability: LED color temperature is warrantied to shift no more than 200K over a 5-year period.
• LED lifespan: 100,000 hours based on IES LM-80 results and TM-21 calculations.

Electrical

• Driver includes control wiring for 0–10V dimming systems and requires a separate 0–10V DC dimming circuit.
• Dimming down to 10%.
• Auxiliary power supply: Yes.
• Dim to off: Yes.
• Surge protection: 10 kV line-to-line and 10 kV line/neutral-to-ground.

Construction

• Dimensions (L × W × H): 18.5" x 25.125" x 4".
• Weight: 21.6 lbs.
• Minimum starting temperature: -40°F (-40°C).

Warranty

The RAB 5-year limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
