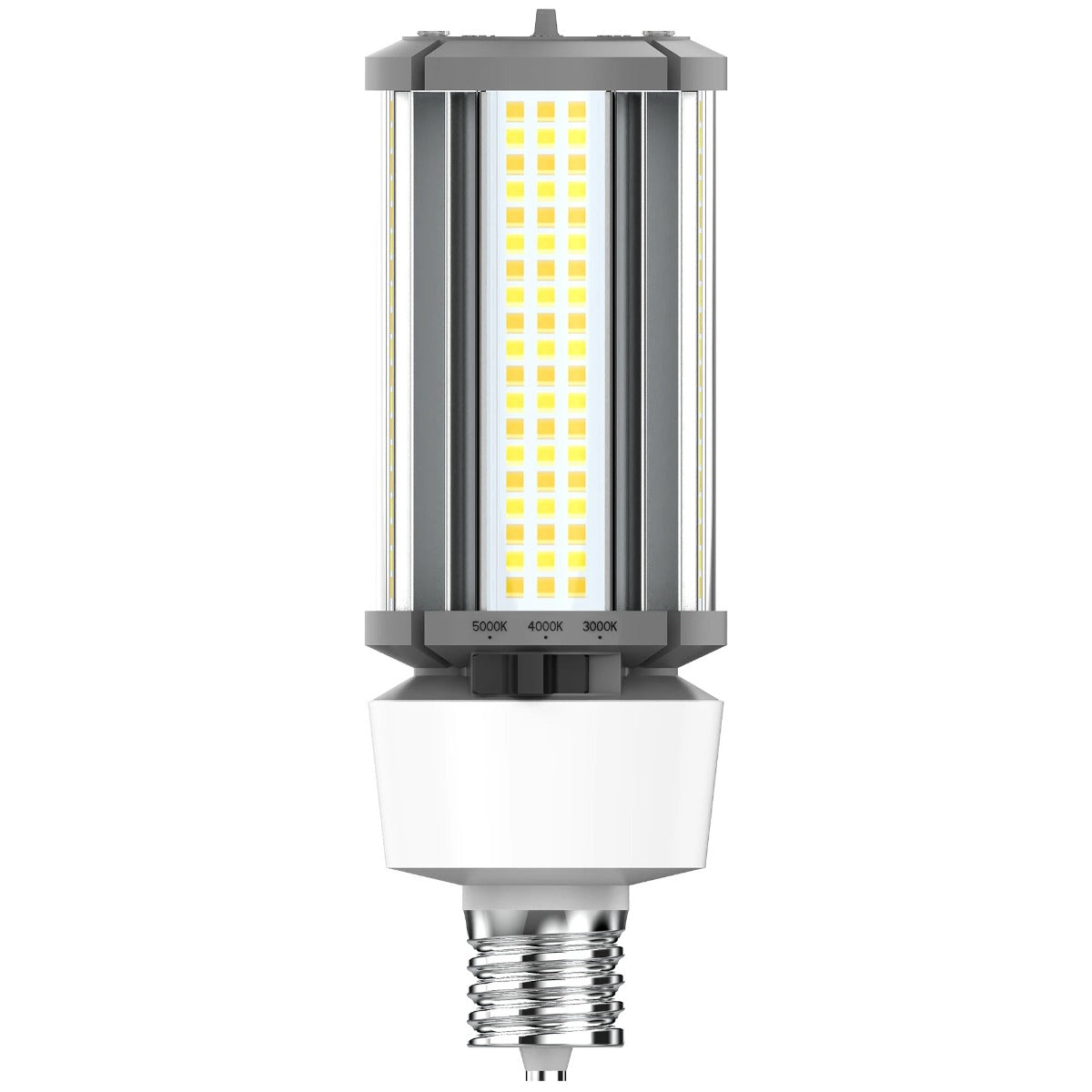

RAB HIDFA-27S-EX39-8CCT-BYP Field Selectable LED Ballast Bypass Post Top Lamp Replaces up to 125W HID/HPS
RAB HIDFA-27S-EX39-8CCT-BYP Field Selectable LED Ballast Bypass Post Top Lamp Replaces up to 125W HID/HPS
-
Specsheet:
Specifications
Specifications
| Part Number# | HIDFA-27S-EX39-8CCT-BYP |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,740 - 3,915 |
| Wattage: | 27 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 50W HID Equivalent, 70W HID Equivalent, 100W HID Equivalent, Dimmable, DLC Approved, UL Listed |
| CRI: | >80 |
| Dimensions: | 2.31" x 7.5" |
| Width: | 2.31" |
| Height: | 7.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | 100V-277V |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB's HIDFA-27S-EX39-8CCT-BYP LED Ballast Bypass Post-Top Lamp is a revolutionary solution designed to replace traditional metal halide or high-pressure sodium HID lamps. This innovative lamp offers unparalleled flexibility with adjustable wattage and CCT, allowing for in-field customization to suit your specific lighting needs. Its integral driver eliminates the need for an external driver or ballast, enabling direct wiring to line voltage for added convenience. Engineered for versatility, this lamp is rated for use in enclosed fixtures in both dry and damp locations, ensuring reliability and performance in various environments. Upgrade your lighting system with the RAB Field Selectable LED Ballast Bypass Post Top Lamp, delivering efficiency and adaptability in one groundbreaking solution.
Features:
• Replaces traditional metal halide or high-pressure sodium HID lamp
• Adjustable wattage and CCT allows for in-field customization
• Integral driver enables the lamp to be wired directly to line voltage without the need for an external driver or ballast
• Rated for use in enclosed fixtures in dry or damp locations
