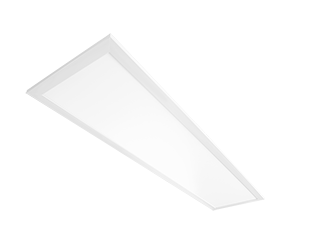

RAB EZPAN1X4-30/D10 1x4 30 Watt LED Edge Lit Frosted Lens Panel Fixture 5000K Dimmable
RAB EZPAN1X4-30/D10 1x4 30 Watt LED Edge Lit Frosted Lens Panel Fixture 5000K Dimmable
Specifications
Specifications
| Part Number# | EZPAN1X4-30/D10 |
|---|---|
| Type of Area: | Industrial & Warehouse, Schools, Commercial Offices, Factory / Industrial, Retail |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 3,576 |
| Wattage: | 30 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, DLC Approved, LM79 / LM80, UL Listed |
| CRI: | 81 |
| Dimensions: | 47.76" x 11.93" x 1.64" |
| Width: | 11.93" |
| Length: | 47.76" |
| Height: | 1.64" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Weight Each: | 7.6 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
This 1x4 ft EZPAN Edge Lit Panel Fixture offers contemporary look and seamless daylight to any insulated ceilings. Delivers 3,576 lumens at 5000K color temperature with incredible 60,000 hours lifespan. Durable, long-lasting, and a cost-efficient replacement to (4)F32T8 or (4)F28T5 fluorescent.
Features:
• Suitable for shallow plenums
• Provides even and diffuse ambient illumination to spaces where glare-free lighting is required
• LED Lifespan: 60,000-Hour
• Housing: Lightweight aluminum housing, steel pan and junction box
• Dimmable Driver: 0-10V (standard)
• Equivalent to (4)F32T8 or (4)F28T5
