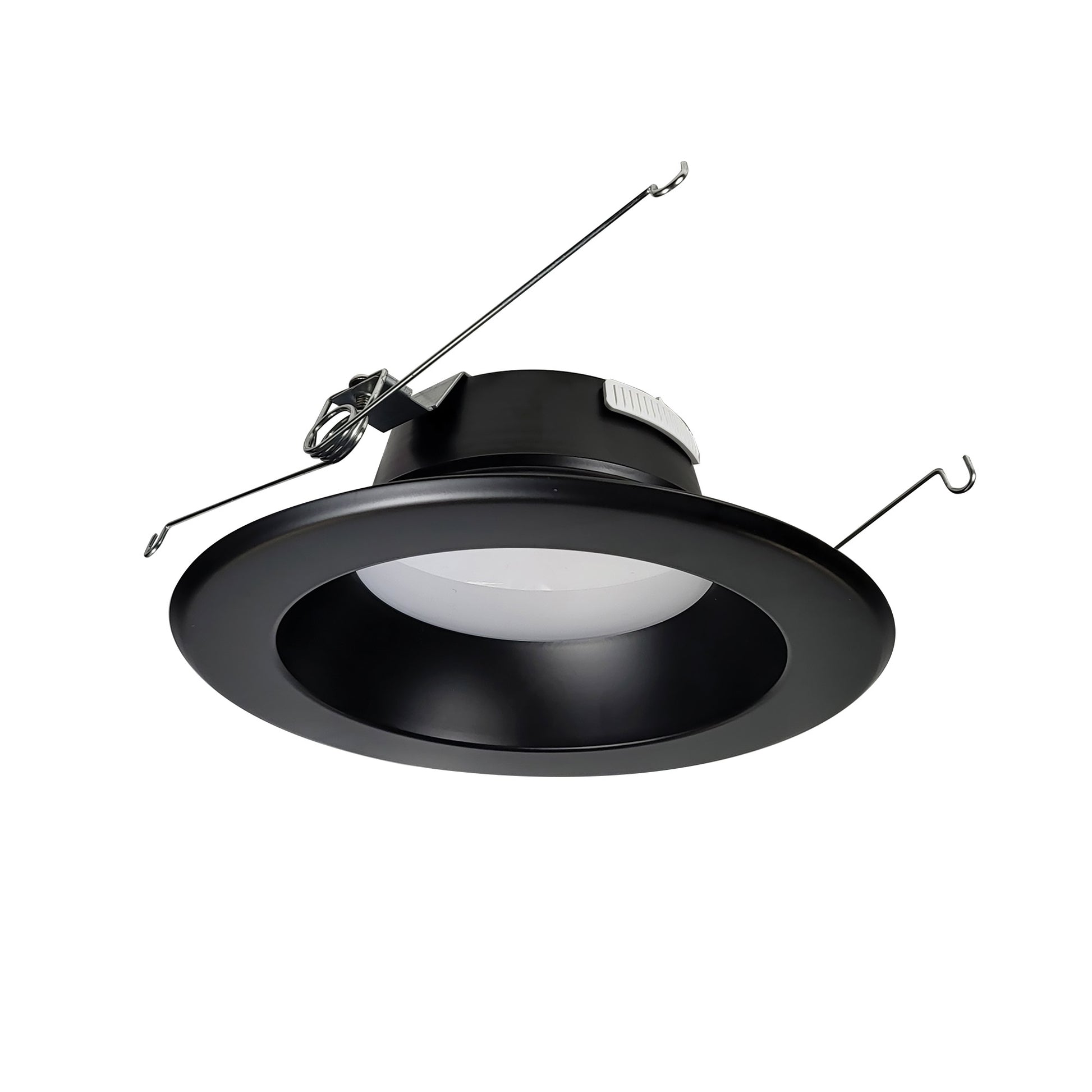

Nora Lighting NOXAC-5631TWBB 5"/6" Onyx AC LED Retrofit Reflector Black Finish – 1150lm, 5CCT, 90+ CRI, Wet-Rated
Nora Lighting NOXAC-5631TWBB 5"/6" Onyx AC LED Retrofit Reflector Black Finish – 1150lm, 5CCT, 90+ CRI, Wet-Rated
-
Specsheet:
Specifications
Specifications
| Part Number# | NOXAC-5631TWBB |
|---|---|
| Type of Area: | Apartment Buildings, Hangers & Storage, Schools, Commercial Offices, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lumen Output: | 1,150 |
| Wattage: | 16.5 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, ETL Listed, FCC Compliant, Title 24 Compliant |
| CRI: | 90+ |
| Dimensions: | 7.28" O.D x 2.58" |
| Length: | 7.28" O.D |
| Height: | 2.58" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Voltage: | 120V |
| Manufacturer: | Nora Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Upgrade your lighting with the Nora NOXAC-5631TWBB 5"/6" Onyx LED Retrofit. This high-output AC LED delivers 1150 lumens, five selectable color temperatures, and smooth, glare-free illumination. Fits most 5" and 6" housings and installs easily with the included socket adapter. Dimmable, wet-location rated, 90+ CRI, and Title 24 JA8-2022 compliant—perfect for reliable, efficient recessed lighting upgrades.
Features:
· Delivering over 1150 lumens
· Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
· Dimmable AC LED
· Includes medium base socket adaptor for easy retrofitting in 5" or 6" recessed housings
· 5-year limited warranty
· Classified for wet locations
Specification:
Reflector: One piece, spun aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, torsion mounting springs allow for easy and secure mounting in most 5" and 6" housings.
Retrofit: Luminaires include a medium base screw-socket adapter (NRA-211SM) for retrofitting into medium base downlight housings. Intended to be used as a LED lamp replacement. GU24 socket adapter (NRA-212SM) is available.
Electrical:
Voltage: 120VAC
Lumens / Wattage: 1150lm / 16.5W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Operating Temperature: 0°C to 25°C ambient temperature
Dimming: Triac/ELV
Labels and Listings:
· cETLus classified for Wet Locations
· 5-Year Limited Warranty
· Meets ASTM-E283 Air-Tight requirements
· FCC compliant
· Certified to the high efficacy requirements of California Title 24 JA8-2022
