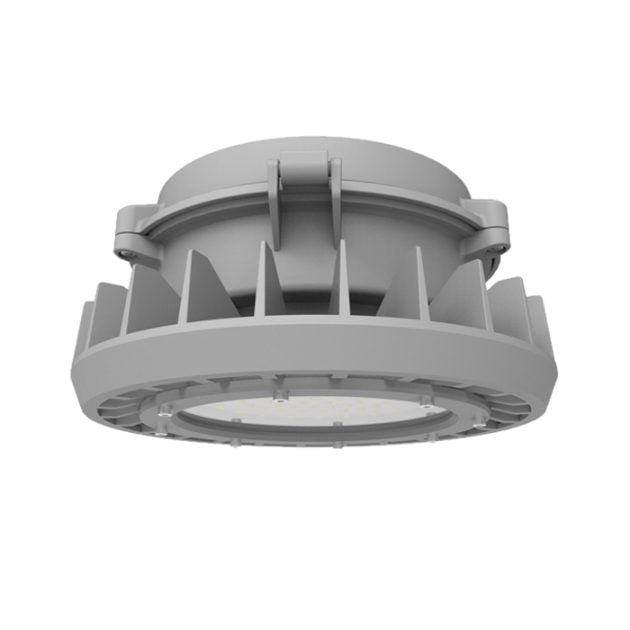

Nicor Lighting XPR1B Eres Series Hazardous Location LED Area Light Fixture
Nicor Lighting XPR1B Eres Series Hazardous Location LED Area Light Fixture
Specifications
Specifications
| Part Number# | XPR1B |
|---|---|
| Type of Area: | Hazardous Location, Landscape & Flood, Large Retail & Open Areas, Wall Mount & Building Exteriors, Hazardous & Demanding |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 6,499 - 9,892 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, IP65 / IP66 / IP67, NEMA, UL Listed |
| CRI: | 70+ |
| Length: | 10.3" |
| Height: | 5.63" - 6.1" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 100V-277V |
| Weight Each: | 10.8 lbs |
| Manufacturer: | Nicor |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Nicor's Eres Hazardous Location LED Area Light is built for environments where moisture, dirt, dust, corrosion, and vibration are prevalent, or for NEMA 3 and 4X areas exposed to wind, water, snow, or high temperatures. It is designed for hazardous locations with flammable vapors, gases, or combustible dust as defined by the NEC. Eres fixtures are available in 45W and 65W for class C1D2. This light is perfect for retrofitting existing HPS/MH systems, providing higher efficiency, reduced energy consumption, lower maintenance costs, and quicker payback periods.
Features:
• Certifications: UL 844 & CSA22.2; Class I Division 2 Group A, B, C, D; Class II Division I Group E, F, G; Class II Division 2 Group F and G; Class III; UL1598A Marine
• Housing: Copper-free, die-cast aluminum
• CCT: 4000K, 5000K
• Input Voltage: 100-240/277 VAC
• Surge Protection: Philips SP1 10kA surge protector
• Operating temperature: -40F° to 131°F (-40°C to 55°C)
• Installation: Easy installation with seven available mounting options:
Ceiling, Wall/Mounting (25° or 90°), Stanchion Mount (25° or 90°), Adjustable Bracket, Pendant
• Access Ports: Four at ¾” NPT (only available on ceiling and wall mount attachments)
• Finish: Gray polyester powder coat
• FCC: Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
