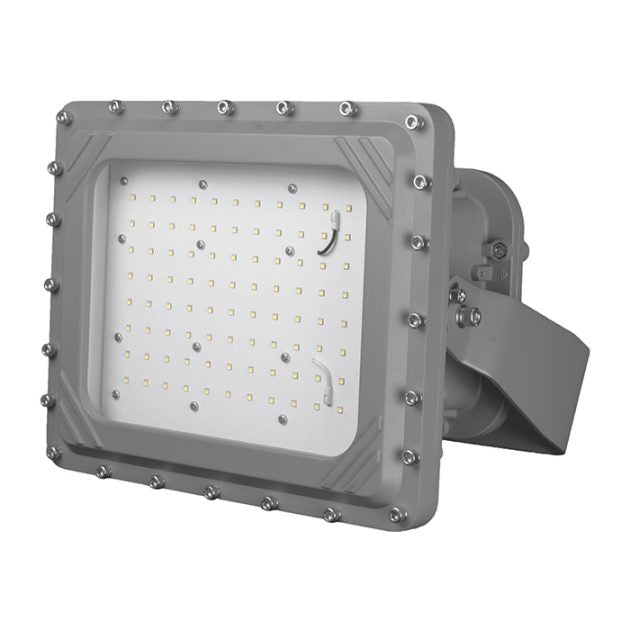

Nicor Lighting XPQ1A Titan Series Hazardous Location LED Flood Light High Bay Fixture
Nicor Lighting XPQ1A Titan Series Hazardous Location LED Flood Light High Bay Fixture
Specifications
Specifications
| Part Number# | XPQ1A |
|---|---|
| Type of Area: | Hazardous Location, Landscape & Flood, Large Retail & Open Areas, Wall Mount & Building Exteriors |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 9,240 - 17,261 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, IP65 / IP66 / IP67, NEMA, UL Listed |
| CRI: | 70+ |
| Dimensions: | 12.9" x 6.9" x 10.7" |
| Width: | 6.9" |
| Length: | 12.9" |
| Height: | 10.7" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 100V-277V |
| Weight Each: | 33.1 - 36.4 lbs |
| Manufacturer: | Nicor |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Nicor's Titan LED Luminaire is engineered for environments where moisture, dirt, dust, corrosion, and vibration are common, or for NEMA 3 and 4X areas where exposure to wind, water, snow, or high ambient temperatures is expected. It's suitable for locations classified as hazardous due to the presence of flammable vapors, gases, or combustible dust as per NEC and IEC standards. Titan fixtures are available in 80W, 100W, and 150W options. This luminaire is an excellent choice for retrofitting existing HPS/MH systems, offering higher efficiency, reduced energy consumption, lower maintenance costs, and quicker return on investment.
Features:
• Certifications: UL 844 & CSA22.2; Class I Division 1 Group C, D; Class I Division 2 Group A, B, C, D; Class II Division 2 Group F, G; Class III; UL1598A Marine; IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db
• Housing: Copper-free, die-cast aluminum
• CCT: 5000K (3000K & 4000K Consult Factory for Lead Time)
• Input Voltage: 100-240/277 VAC
• Surge Protection: Philips SP1 10kA surge protector
• Operating temperature: -40° to 140°F (-40°C to 60°C)
• Installation: Easy installation with three available mounting options: Ceiling, Wall, and Floor
• Access Ports: Two at ¾” NPT
• Finish: Gray polyester powder coat
• FCC: Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
