Nicor Lighting RSD Series Color Selectable Surface Mount LED Downlight Fixture Dimmable
Nicor Lighting RSD Series Color Selectable Surface Mount LED Downlight Fixture Dimmable
Specifications
Specifications
| Part Number# | RSD |
|---|---|
| Type of Area: | Hangers & Storage, Office & Small Retail, Bathrooms, Hotels, Commercial Offices, Hospitality, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 600 | 900 | 1100 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, ETL Listed, FCC Compliant, LM79 / LM80, NFPA, Title 24 Compliant |
| CRI: | 93 |
| Dimensions: | See Spec Sheet |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V |
| Manufacturer: | Nicor |
| Technology: | LED |
Details
Details
ShineRetrofits Input:

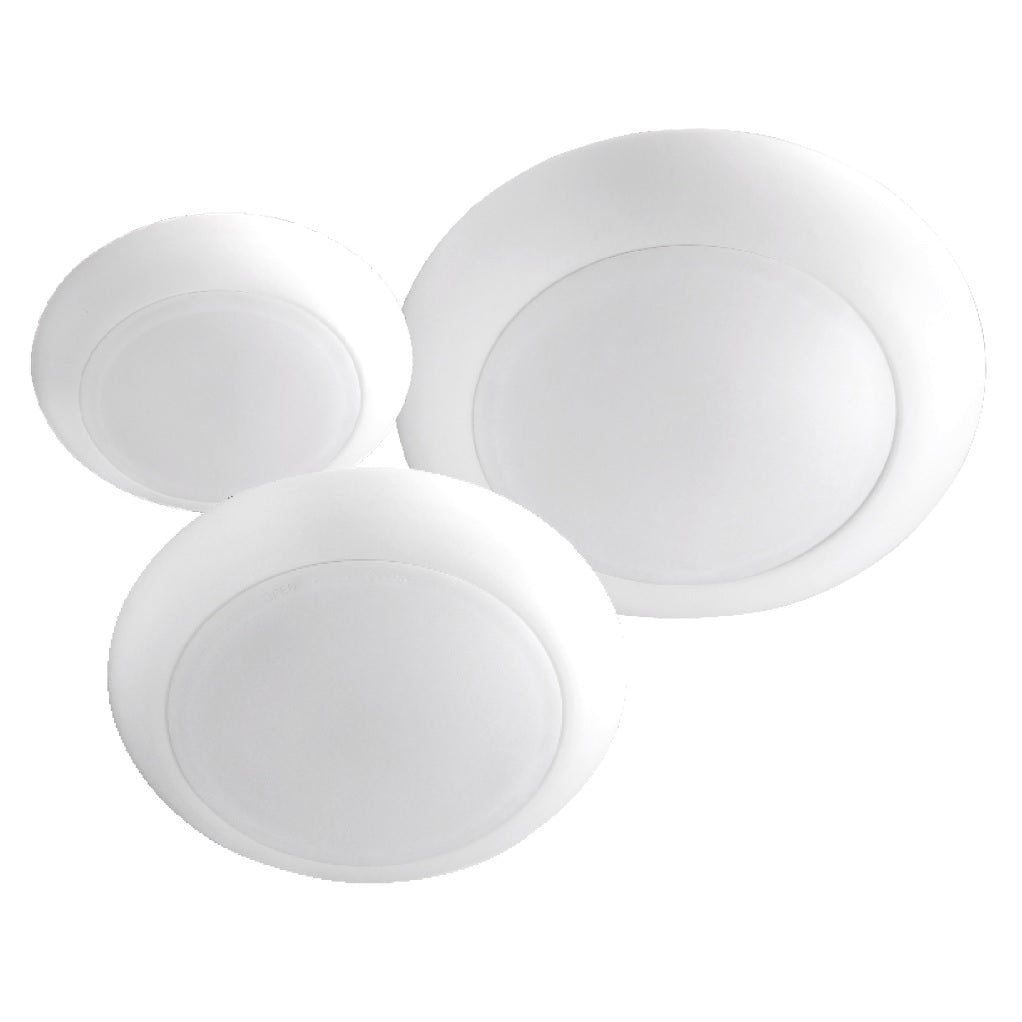

This RSD Surface Mount LED Downlight is thin lighting designed for the tightest indoor spaces. Easy to install with direct box mount to flush ceilings. It features selectable color temperature and produces high-quality light at 93 CRI. Select from three sizes available, 4IN, 6IN, and 8IN to replace traditional lighting with 60W, 75W, and 90W equivalents.
Features:
Construction
• Stamped steel body
• Twist-lock diffuser allows for easy removal for installation Optical System
• Molded polymer, UV stabilized diffuser maximizes light output.
• Convex diffuser creates uniform light distribution while reducing glare
• Offered in 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
Electrical
• Input voltage of 120VAC, 60Hz
• CCT switch located under lens
• Dimmable to 5% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
• Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Finish
• White powder coat finish standard
• Optional colors of Black, Nickel, or Oil-rubbed Bronze
Mounting and Installation
• Easy installation in any 4” pancake, 4” non-metallic or 4/O junction box
• Keyhole mounting slots allow for quick installation to junction boxes
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Listings
• cETLus 1598 Listed for wet locations
• ENERGYSTAR Listed
• CA Title 24/JA8 Compliant
• Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
• RoHS Compliant
• Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
• TM-21 Reported L70(9k) life >54,000 hours
• LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
