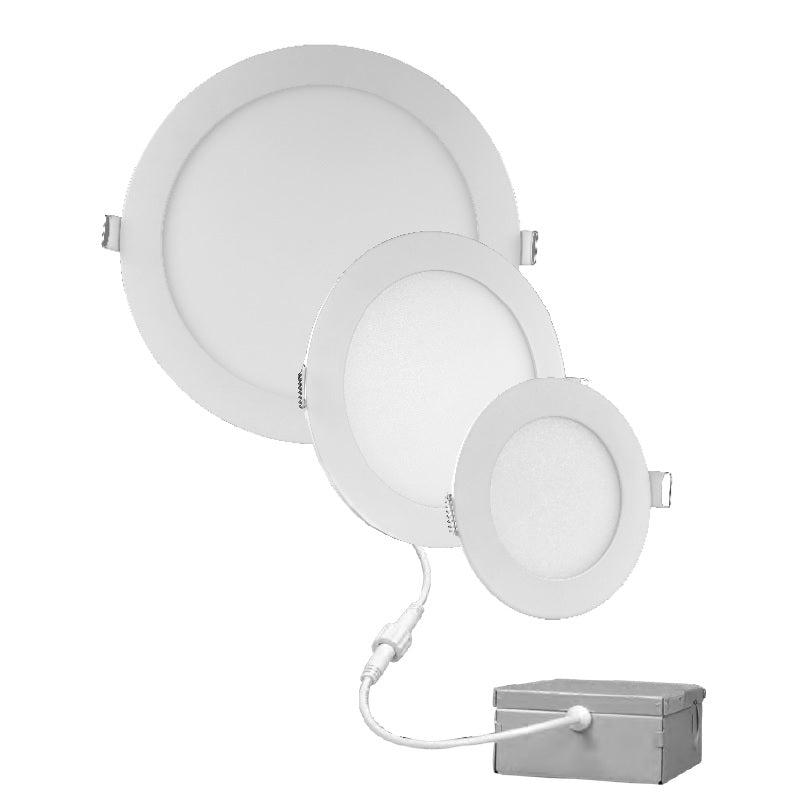

Nicor Lighting REL Series Edge Lit Recessed LED Downlight Fixture Dimmable
Nicor Lighting REL Series Edge Lit Recessed LED Downlight Fixture Dimmable
Specifications
Specifications
| Part Number# | REL |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Bathrooms, Maintenance Rooms, Commercial Offices |
| Lumen Output: | 650 | 900 | 1200 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, Energy Star, ETL Listed, FCC Compliant, LM79 / LM80, NFPA, Title 24 Compliant |
| CRI: | 90 |
| Dimensions: | 4.7"/6.7"/8.9" x 0.9" |
| Width: | 0.9" |
| Length: | 4.7"/6.7"/8.9" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V |
| Manufacturer: | Nicor |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
This REL Canless LED Downlight adds aesthetic indoor lighting, perfect for hallways, bathrooms, basements, and utility closets. It features edge-lit technology with high performance and excellent 93 CRI. Easy to install with an ultra-thin design and longer lifespan. Select from three sizes available, 4IN, 6IN, and 8IN to replace traditional lighting with 60W, 75W, and 90W equivalents.
Features:
Construction
• Cast aluminum housing routes heat away from electrical components
• Edge-Lit technology allows for extremely thin fixture depth
• Adjustable, spring loaded retention tabs ensure secure fixture retention
• Off-board driver minimizes installation height and maximizes fixture life through improved heat management
Optical System
• Precision-engineered optical stack creates uniform light distribution that maximizes lumen output
• Utilizes high-performing LEDs with 90+ CRI and an R9 > 50
• CCTs offered at 2700K, 3000K, 4000K, or 5000K
Electrical
• Input voltage of 120VAC
• Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
• Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Finish
• White powder coat finish standard
• Color trims available in Black, Nickel, or Oil Rubbed Bronze
Mounting and Installation
• Spring-loaded retention tabs allow for easy installation into ceilings up to 3/4” thick with no need for a recessed housing
• Off-board driver/junction box includes three 1/2” KOs and three-port poke-in connectors
• Included paper-cutting template
• Accessory metal rough-in template and frames available
• Accessory extension power cables (2’ & 10’) available
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Listings
• cETLus 1598 Classified for wet locations
• ENERGY STAR listed
• CA Title 24 Compliant
• Certified for direct contact with insulation (IC)
• Meets Air Tight requirements per ASTM E283
• Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
• RoHS Compliant
• Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
• LED lumen maintenance: L70(9k)>54,000 hrs
• LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
