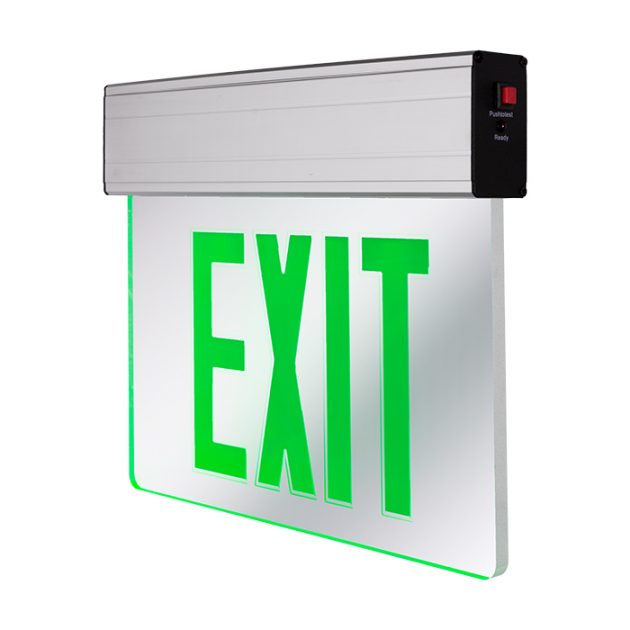

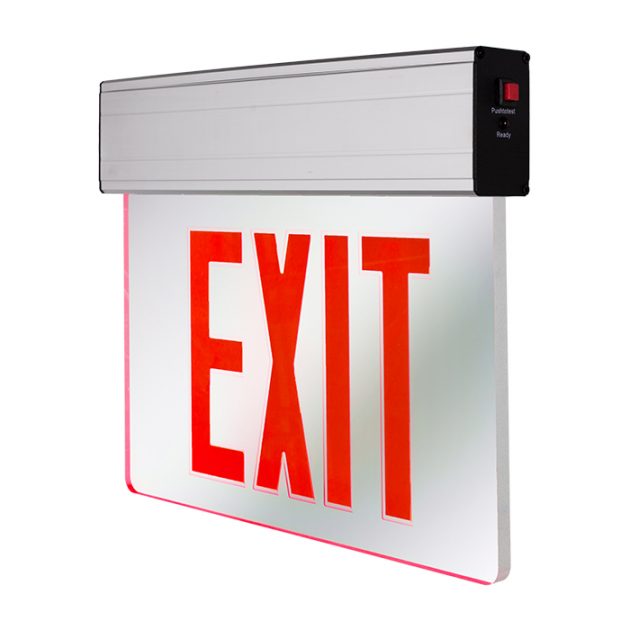

Nicor Lighting EXL2-10UNV-AL 2.3-Watt LED 12.75-Inch Edge Lit Emergency Exit Sign
Nicor Lighting EXL2-10UNV-AL 2.3-Watt LED 12.75-Inch Edge Lit Emergency Exit Sign
Specifications
Specifications
| Part Number# | EXL2-10UNV-AL |
|---|---|
| Type of Area: | Apartment Buildings, Gas Station & Convenience Store, Industrial & Warehouse, Manufacturing Plants, Schools, Hotels, Hospitals, Commercial Offices, Hospitality, Retail |
| Wattage: | 2.4 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 1 Year Warranty, CUL Listed, NFPA, UL Listed |
| Dimensions: | 12.87" x 1.62" x 10.75" |
| Width: | 1.62" |
| Length: | 12.87" |
| Height: | 10.75" |
| Dimmable: | No |
| Product Warranty: | 1 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Nicor |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
NICOR's EXL2 LED Edge Lit Exit Series is a modern and reliable exit sign designed for easy installation and dependability. Constructed with impact-resistant, optically clear acrylic, it features clear single-faced or mirrored double-faced panels. The high-output LEDs offer impressive performance by providing indirect lighting that evenly illuminates the edge-lit signage. For added convenience, the EXL2 Series offers an optional maintenance-free nickel-cadmium battery for an extended lifespan. It provides flexible installation options, including surface ceiling, wall, or end mount, and the chevrons are field adjustable to meet the directional needs of your application.
Features:
• Clear, single-sided configuration
• Specification-grade aluminum extrusion design
• Mirrored, double-sided configuration
• 120/277VAC Dual Voltage Operation, 60Hz input
• Push button test switch with LED indicator
• Maintenance-free NiCad battery provides 90-minute emergency operation
• Mounting plate allows for surface ceiling, wall, or end mount options
• Optional left and right arrow Indicators included
• Low voltage disconnect eliminates deep discharge
• Brown-out, short circuit, and voltage surge protection
• Protected by NICOR's 1-year limited warranty
