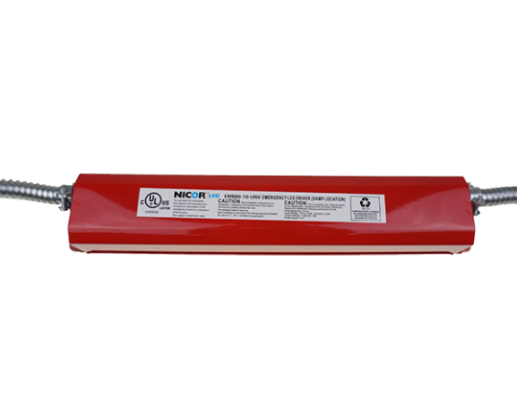

Nicor EMB80-10-UNV 8.5W LED Emergency Battery Backup Driver
Nicor EMB80-10-UNV 8.5W LED Emergency Battery Backup Driver
Specifications
Specifications
| Part Number# | EMB80-10-UNV |
|---|---|
| Type of Area: | Apartment Buildings, Industrial & Warehouse, Office & Small Retail, Schools, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail, Banking |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |
| Dimensions: | 13" x 2.25" x 1.5" |
| Width: | 2.25" |
| Length: | 13" |
| Height: | 1.5" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.1 lbs |
| Manufacturer: | Nicor |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
NICOR's EMB80 LED emergency driver is specifically designed for both factory and field installations. This driver enables seamless normal and emergency operation of a switched or non-switched LED fixture. In the event of a power failure, the EMB80 automatically activates the emergency mode, ensuring consistent output wattage to the fixture without any light degradation for up to 90 minutes. Encased in sturdy powder-coated steel housing, the EMB80 features a 6-Volt, 4000mAh Ni-Cad battery, charger, test switch, and a converter circuit. Rest easy knowing that the EMB80 is protected by NICOR's 5-Year Limited Warranty, providing peace of mind for your emergency lighting needs.
Features:
• Rated for Plenum, Damp Location, and IC Rated Fixtures
• Battery: 6V - 4000mAh Ni-Cad
• Emergency Mode: 90 Minutes (Min.) @ 8W
• Input Voltage: 120~277VAC (50/60Hz)
• Charging Current: 20-50mA
• Input Power: 5.5W
• Output Voltage: 3~60VDC
• Output Power: 8.5W
• Output Type: Constant Current
• Protected by NICOR's 5-Year Limited Warranty
