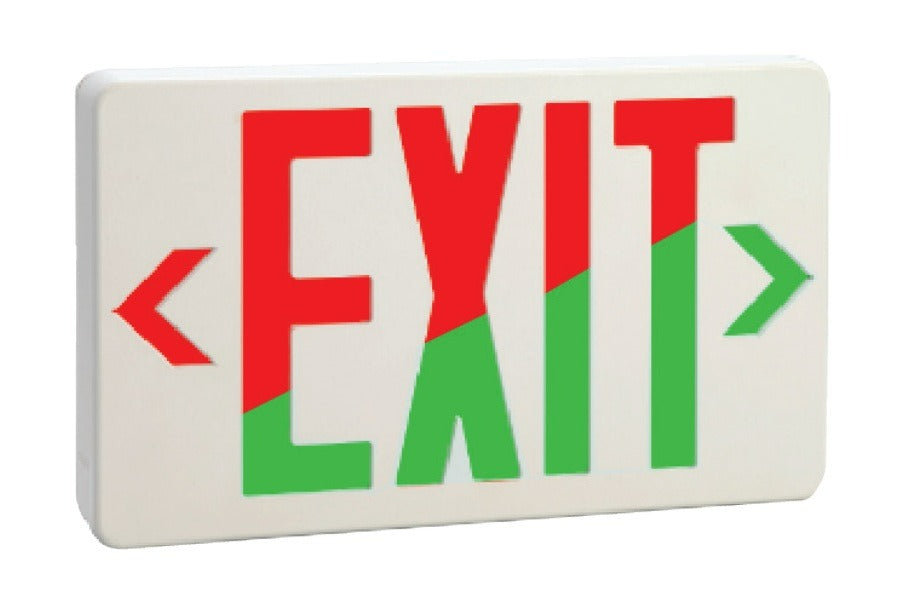

Mule Lighting UX-B Switchable Red/Green Universal LED Exit Sign with Battery Backup
Mule Lighting UX-B Switchable Red/Green Universal LED Exit Sign with Battery Backup
Specifications
Specifications
| Part Number# | UX-B |
|---|---|
| Type of Area: | Schools, Hospitals, Commercial Offices, Retail |
| Ballast Start Type: | Instant Start |
| Certifications | NFPA, UL Listed |
| Dimensions: | 11.81" x 7.25" x 1.81" |
| Width: | 1.81" |
| Length: | 11.81" |
| Height: | 7.25" |
| Dimmable: | No |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Mule Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Mule Lighting's UX-B Exit Sign is a versatile LED unit with a switchable red or green display and universal mounting options. It features durable thermoplastic housing, flame-retardant construction, and a compact design for easy installation. Powered by a maintenance-free Ni-Cad battery, it provides over 90 minutes of backup illumination with efficient, long-life LEDs. UL-listed and compliant with NFPA and CEC standards, it ensures reliable performance in various safety applications.
Features:
• Universal Red/Green
• Universal Single/Double Face
• Universal Mounting
• Universal Input Voltage
• Universal Chevron Indicators
Construction:
• Injection-molded thermoplastic housing
• Plastic enclosure with 5VA flame retardant
• Compact and decorative design
• Friendly configuration design for quick installation
• EXIT letter 6” height and 3/4” stroke, snap-in and snap-out direction indicator
Electrical:
• 120/277VAC 60Hz dual voltage input optional
• Battery low-voltage protection
• Solid-State transfer circuit
• Test the switch and battery charging indicator
• Maintenance-free Ni-Cad battery
• 24-hour recharge, more than 90 minutes discharge
Illumination:
• Field selectable Red or Green sign with matched color diffuser
• Long-life, high-intensity LEDs
Options:
• Self-diagnostics option
• 3.6V 1.5W remote capability option
Mounting:
• Suitable for wall, side, and ceiling mount
• Universal J-Box mount pattern on back plate
• Field selectable snap-in/out chevrons
• Canopy Included
Code Compliance:
• UL listed and meet or exceed all requirements in NFPA 70, NFPA 101 Life Safety Code, suitable for the U.S.A. market.
• Complies with CEC Title 20 efficiency regulations.
• Suitable for 10°C-40°C ambient temperature
• UL924 Damp Location Listed
