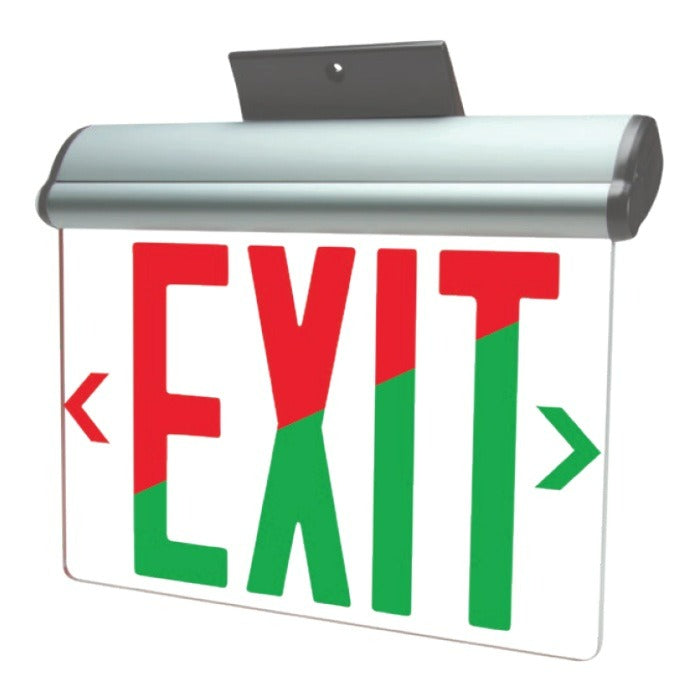

Mule Lighting U-PVT Series Switchable Red/Green Universal LED Edge-Lit Exit Sign
Mule Lighting U-PVT Series Switchable Red/Green Universal LED Edge-Lit Exit Sign
Specifications
Specifications
| Part Number# | U-PVT |
|---|---|
| Type of Area: | Schools, Commercial Offices, Retail |
| Lamp Life: | 100,000 Hours |
| Wattage: | 3 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, NEC, NFPA, UL Listed |
| Dimensions: | 13" x 9.6" |
| Length: | 13" |
| Height: | 9.6" |
| Dimmable: | No |
| Product Warranty: | 3 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Mule Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Mule Lighting's U-PVT Edge-Lit Exit Sign offers a sleek, pivoting design for wall, ceiling, sloped, or recessed installations. Its extruded aluminum housing and high-grade acrylic panel provide a modern, durable finish with field-selectable red or green LED illumination. Designed for flexibility, it includes single or double face options, a recessed mounting bracket, and directional chevrons. UL 924 listed and CEC Title 20 compliant, it delivers reliable 90-minute emergency operation with a maintenance-free NiCad battery or AC-only configuration.
Features:
• Pivoting design for simple installation in any application, including wall, ceiling, sloped ceiling, or recessed mounting
• Suitable for installation in existing drywall applications
• Includes both single and double face panel configurations.
• Includes surface mounting canopy as well as a bracket for recessed mounting applications
• Extruded aluminum housing with high-grade acrylic panel
• Compact, low-profile snap-in design for ease of maintenance
• Maintenance-free NiCad battery or AC-only configurations
• Mirror panel supplied as a standard on all double-faced signs
• UL 924 Listed 90-minute emergency run time, 24-hour recharge time
• Low-voltage disconnect eliminates deep discharge
• Constant, uniform illumination by long-life, high-intensity, red or green LEDs. Field switchable Red/Green
• Fully-illuminated 6” characters with 3/4” stroke
• Field selectable directional chevrons included for all configurations
• 120/277VAC Dual primary, 60Hz input
• Standard finishes: Brushed Aluminum or White
• Suitable for Damp Location
• CEC Title 20 Compliant
