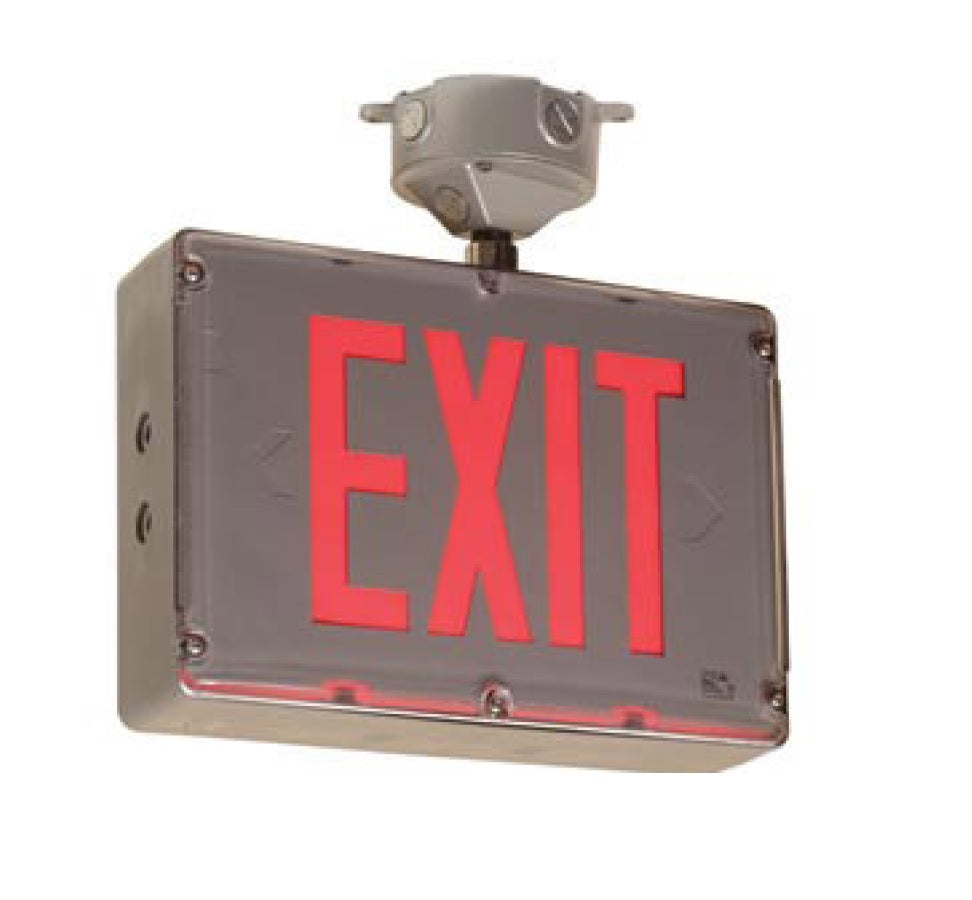

Mule Lighting SVX-NHZ-1 Hazardous Location Exit Sign with Battery Backup Single Face - Red or Green LEDs
Mule Lighting SVX-NHZ-1 Hazardous Location Exit Sign with Battery Backup Single Face - Red or Green LEDs
Specifications
Specifications
| Part Number# | SVX-NHZ-1 |
|---|---|
| Type of Area: | Hazardous Location |
| Ballast Factor: | 1.00 |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, NEMA, UL Listed |

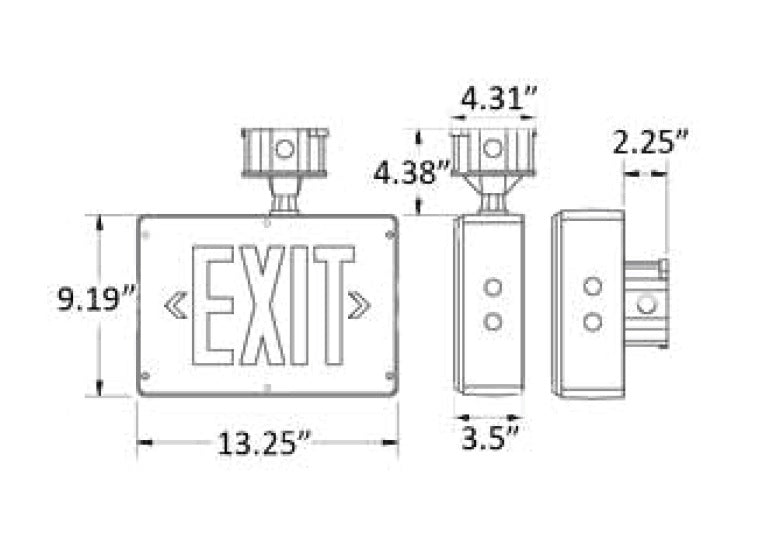

| Dimensions: | 13.25" x 9.19" x 3.50" |
| Width: | 9.19" |
| Length: | 13.25" |
| Height: | 3.50" |
| Dimmable: | No |
| Product Warranty: | 3 Year |
| Minimum Start Temperature: | 0 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Mule Lighting |
Details
Details
ShineRetrofits Input:
This hazardous location Class 1 Division 2 Exit sign will endure flammable and explosive gases, vapors, dusts in environments including power plants, chemical processing facilities, and oil refineries. It is extremely durable, made with an aluminum body and single sided, vandal proof polycarbonate faceplate. This sign is UL listed for wet locations and is suitable for both indoor and outdoor applications. It includes a 90 minute backup battery during AC power outages and a 3 year warranty.
Features:
• Rated for Class 1 Division 2 hazardous locations
• Gray polycarbonate constructed housing
• Push-to-test button with LED charging indicator
• NEMA 3, 4, 4x, and 12 Rated
• UL 924 Listed for the USA
• 3 year warranty
Battery:
Class 1 Div 2 exit signs feature a maintenancefree Nickel Cadmium exit sign battery provides 90 minutes of emergency support and lasts for 5-7 years. The SVXHZ lass 1 Division 2 Exit Sign is also available in an AC only mode, which does not include the battery backup and is intended for use in buildings that feature backup generators.
Code Compliance:
UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101,
UL Listed for Damp Locations. UL Listed for Wet Locations.
Electrical Specifications:
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. T6 (maximum 85°C/185°F). Evaluated to UL 924 and L1598 standards. Suitable for cold-weather: -20°C (sel fpowered model , “CW” option) and -40°C (AC only).
Internal Heater Option:
The unit can be outfitted with an internal heater that keeps battery backup system ready for emergency mode operation for applications that feature freezing temperature environments (up to -4º F)
Warranty:
The SVXHZ Series comes with a 3-year factory warranty. The lamps are not covered. Deliberate damage, misuse, or improper installation effectively cancel the warranty. Battery features a 20% per year pro-rata warranty.
