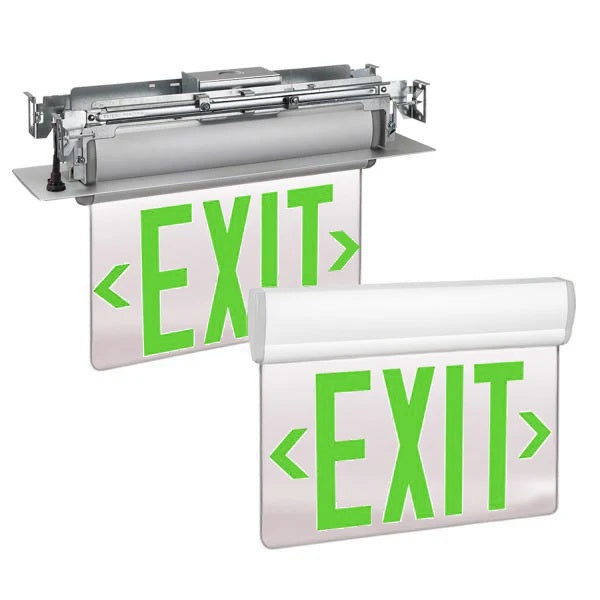

Mule Lighting PVT-2-A-GM-U-BA Pivotal Series Edge-Lit Double Face Exit Sign AC Only with Green LED Mirror Panel Surface in Brushed Aluminum Housing
Mule Lighting PVT-2-A-GM-U-BA Pivotal Series Edge-Lit Double Face Exit Sign AC Only with Green LED Mirror Panel Surface in Brushed Aluminum Housing
Specifications
Specifications
| Part Number# | PVT-2-A-GM-U-BA |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Schools, Commercial Offices, Factory / Industrial |
| Wattage: | 3 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | NEC, NFPA, UL Listed |
| Dimensions: | 13" x 9.6" |
| Length: | 13" |
| Height: | 9.6" |
| Dimmable: | No |
| Product Warranty: | 3 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Mule Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Enjoy upgraded light and a modern design with Mule Lighting's Pivotal Series of edge-lit exit signs. This double-face configuration sign uses a mirror panel and green LEDs, all in a minimalist brushed aluminum housing. The sign is available in AC only, self-powered and dual-circuit configurations, and comes with a battery for a minimum of 90-minute emergency lighting.
Benefits & Features:
• Pivoting design for simple installation in any application, including wall, ceiling, sloped ceiling or recessed mounting
• Suitable for installation in existing drywall applications
• PVT-U option includes both single and double face panel configurations
• PVT-U option includes surface mounting canopy as well as bracket for recessed mounting applications
• Extruded aluminum housing with high-grade, acrylic panel
• Compact, low-profile snap-in design for ease of maintenance
• Maintenance-free NiCad battery or AC only configurations
• Mirror panel supplied as a standard on all double-faced signs
• UL 924 Listed 90 minute emergency run time, 24 hour recharge time
• Low-voltage disconnect eliminates deep discharge
• Optional Self-test/Self-diagnostics (SD) available
• Constant, uniform illumination by long-life, high-intensity, red or green LEDs
• Fully-illuminated 6” characters with 3/4” stroke
• Field selectable directional chevrons included for all configurations
• 120/277VAC Dual primary, 60Hz input
• Standard finishes: Brushed Aluminum, Black or White
• Suitable for Damp Location
