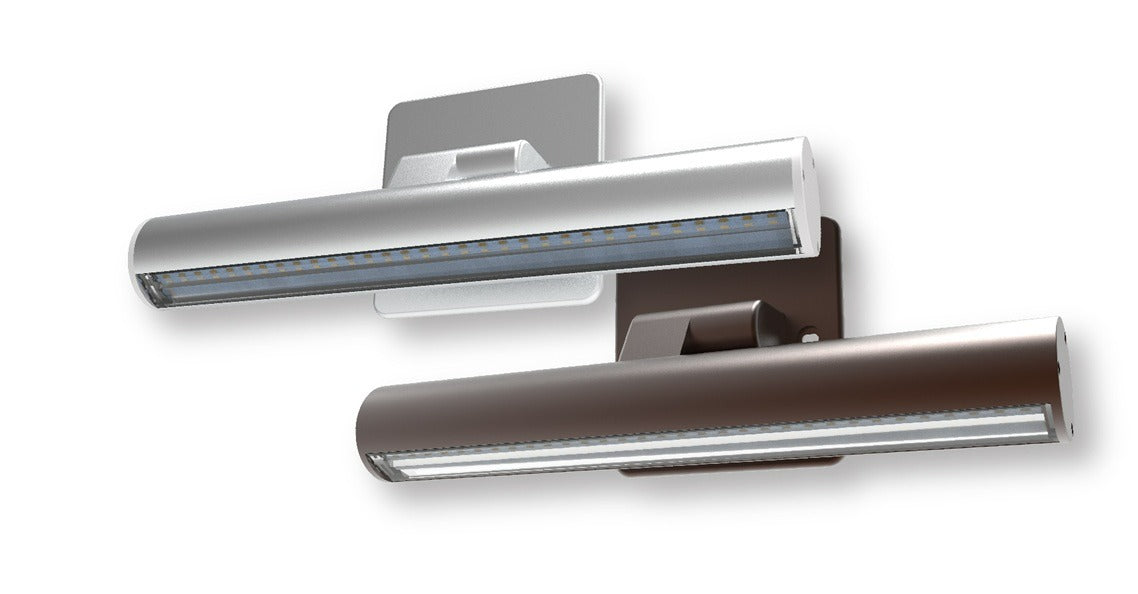

Mule Lighting CY-UDC Series AC/DC Dual Mode Mullion Mount Outdoor Emergency Light
Mule Lighting CY-UDC Series AC/DC Dual Mode Mullion Mount Outdoor Emergency Light
Specifications
Specifications
| Part Number# | CY-UDC |
|---|---|
| Type of Area: | Stairwell, Wall Mount & Building Exteriors |
| Color Temp: | 5000K - Daylight White |
| Lumen Output: | 900 - 1,000 |
| Wattage: | 10 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, IP66, UL Listed |
| CRI: | 80+ |
| Length: | 13.5" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -30 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Mule Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Mule Lighting's CY-UDC Outdoor Emergency Light is designed for mullion mounting with AC, DC, or dual-mode operation. It is wet location and IP66 rated, ensuring reliable performance in harsh environments. The adjustable lamp head with a special lens provides precise over-the-door illumination with full cut-off distribution. Operating in temperatures from -30°C to 50°C, it includes canopies for both mullion beam and junction box installations.
Features:
• Wet location and IP66 Rated
• Lamp head can be adjusted from 0-180 degrees and can be fixed at any angle
• Operating temperature -30°C~50°C for UDC mode.
• Power LED with special lens offer over-the-door lighting with full cut-off distribution
• 2" Height canopy for mullion beam and 5" height canopy for junction
box included
Operation:
• AC only mode (wall switch with AC general lighting)
• DC only mode (DC 6-24V input using model RPS07)
• AC/DC mode (Both general lighting and extra DC 6-24V backup using model RPS07)
