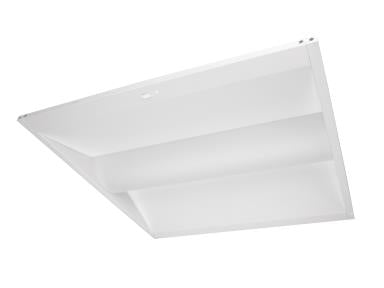

Maxlite TRK22D1840CR 18 Watt 2x2 LED Ready Control Troffer Retrofit Kit Dimmable 4000K - While Supplies Last
Maxlite TRK22D1840CR 18 Watt 2x2 LED Ready Control Troffer Retrofit Kit Dimmable 4000K - While Supplies Last
Specifications
Specifications
| Part Number# | TRK22D1840CR |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Office & Small Retail, Commercial Offices, Retail |
| Color Temp: | 4000K - Neutral White |
| Lamp Life: | 75,000 Hours |
| Lumen Output: | 2,471 |
| Wattage: | 18 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | 80 |
| Dimensions: | 23.82" x 23.86" x 3.09" |
| Width: | 23.86" |
| Length: | 23.82" |
| Height: | 3.09" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Maxlite |
| Technology: | LED - Retrofit Kit |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
Maxlite’s innovative Troffer Retrofit Kit provides a cost-effective solution for converting current fixtures to LED technology. It can be easily installed into most existing troffers in less than 15 minutes. Optional trim plates are available to enhance the fixture's appearance, offering a sleek finish. Featuring Wattage and CCT select options, each unit offers up to 9 different configurations, providing flexibility for both end users and distributors.
Features:
• Power/Wattage selectable
• Controls Ready – can be paired with the new cMax controls nodes
• Quick installation of Troffer Retrofit Kit in existing luminaire without the need to break the ceiling plenum
• CCT Selectable: 3500K/4000K/5000K for 20W & 25W models
• On EM mode, The fixture CCT will be set to 5000K
• On EM mode, the fixture output a minimum of 700 lumens for 90 minutes, when fully charged
• Dimming: 0-10V with 5-100% Dimming Range with Dim-to-off capability
Controls Ready:
MaxLite’s new Controls Ready (CR) fixtures allows for quick and easy in-field installation (plug and play) of controls. Simply purchase any CR fixture and the required Controls Node and you’re all set! See the accessory table for all controls options available for this fixture.
