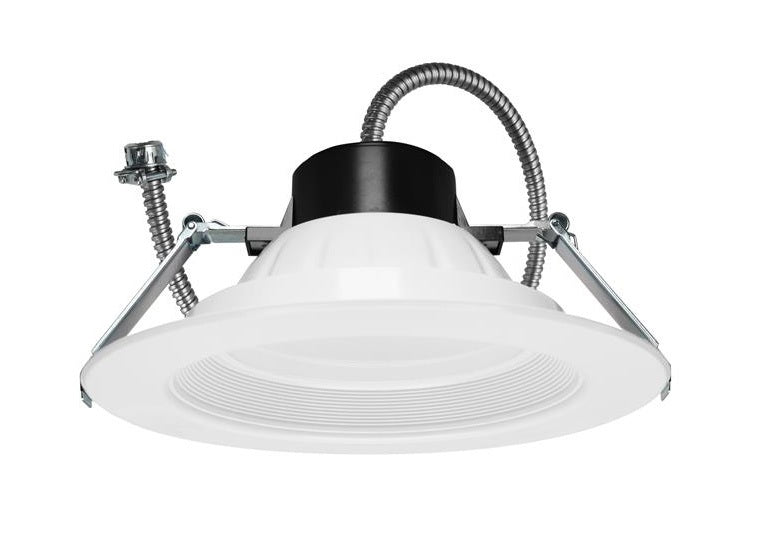

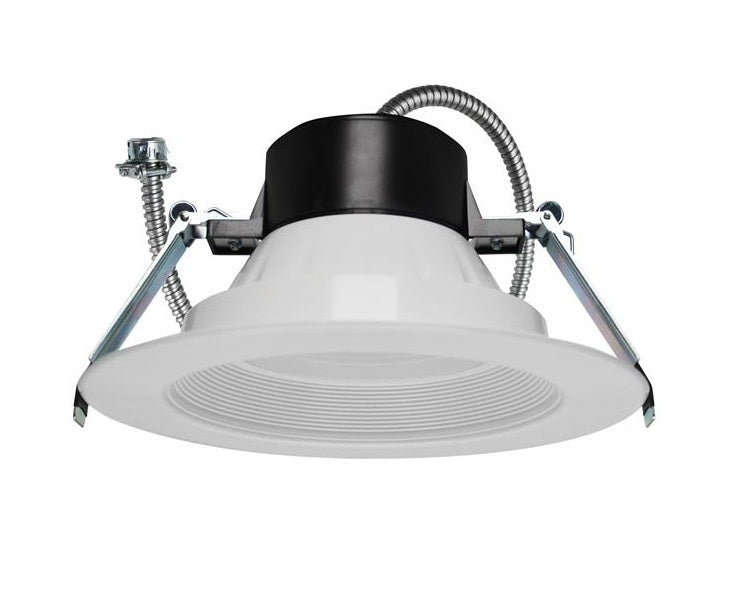

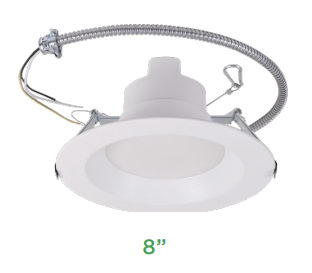

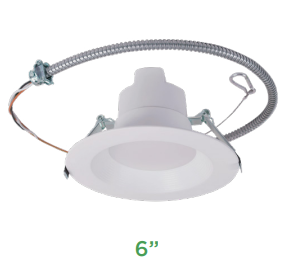

Maxlite RCF Series LED Universal Downlight Fixture Wattage and Color Selectable Dimmable
Maxlite RCF Series LED Universal Downlight Fixture Wattage and Color Selectable Dimmable
Specifications
Specifications
| Part Number# | RCF6V06WCSTA |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail, Hospitality, Retail, Commercial Offices |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,100 |
| Wattage: | Selectable Wattage |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Energy Star, ETL Listed, FCC Compliant, LM79 / LM80, ROHS |
| CRI: | >90 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.17 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
Details
Details
Product Description
The Universal Commercial downlight is an economical, all-in-one solution for adding recessed downlighting to hospitality, retail, office and other commercial lighting applications. The downlight is designed with an integral whip, which connects directly to a junction box (existing or independently mounted), and a universal driver that eliminates the need for a traditional recessed housing, saving installers time and money. The downlight combines 5 CCTs and 3 Wattages in one product. Easy to install in new construction, remodel and retrofit projects, the downlight has a slim body that fits into shallow ceilings. Its white baffle trim blends seamlessly into interiors and reduces glare for soft, eye-pleasing illumination.
Features:
- 2700/3000K/3500K/4000K/5000K CCT Selectable
- Qualified as a fixture and a retrofit
- Mounts directly into ceiling, no housing required
- Extra wide flange to cover oversize openings
- Input Voltage 120-277V, 0-10V Dimming, 10%
- Beam angle 100°
- IC rated
- Field installable Emergency Battery back up kit available (includes a test switch and the charge indicator kit, no cover)
- CRI: >90
- 12v Aux output to work with c-Max network controls
