Maxlite LSV 4 Foot Pre-Wired T8 LED Tube Ready Vapor Tight Fixture
Maxlite LSV 4 Foot Pre-Wired T8 LED Tube Ready Vapor Tight Fixture

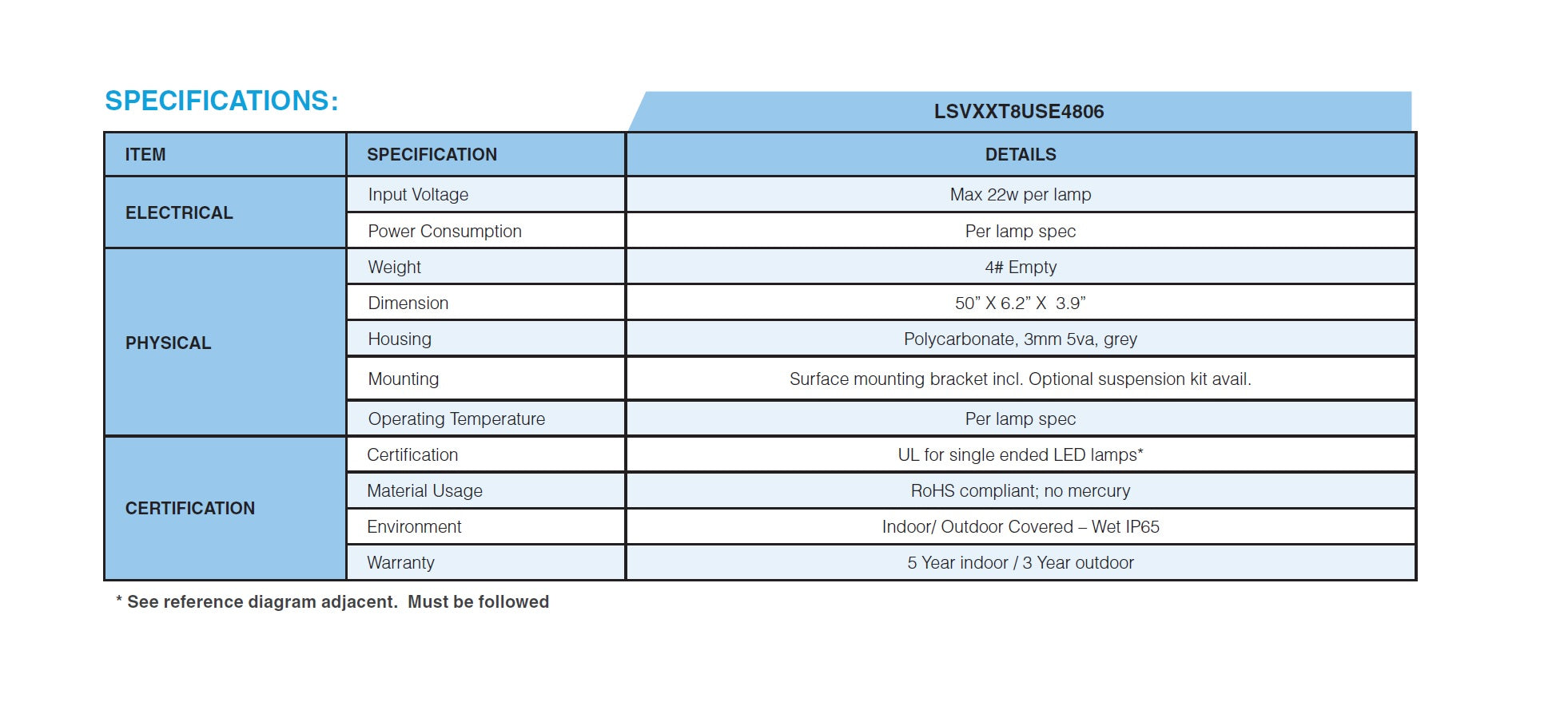

Specifications
Specifications

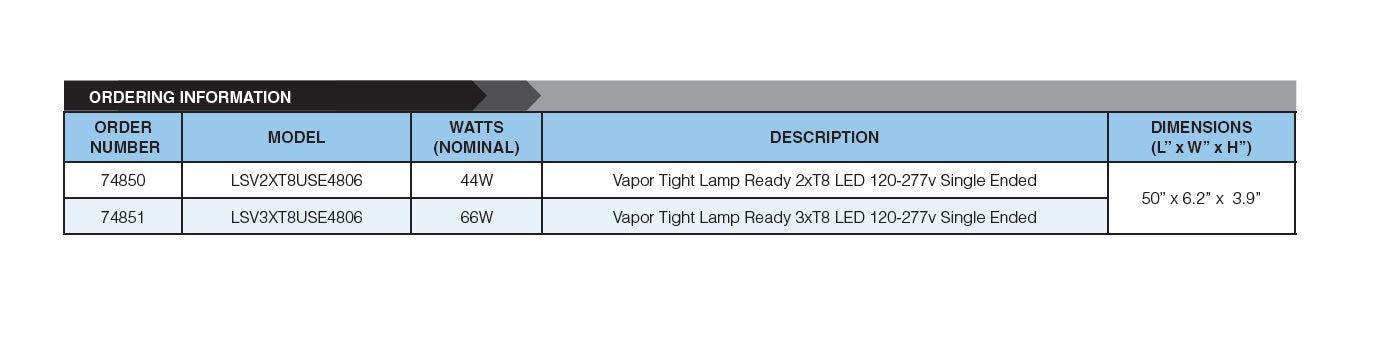

Part Number# | LSV2XT8USE4806 |
---|---|
Type of Area: | Industrial & Warehouse, Office & Small Retail |
Ballast Factor: | 1.00 |
Ballast Start Type: | Instant Start |
Certifications | 5 Year Warranty, CUL Listed, IP65 / IP66 / IP67, ROHS, UL Listed |

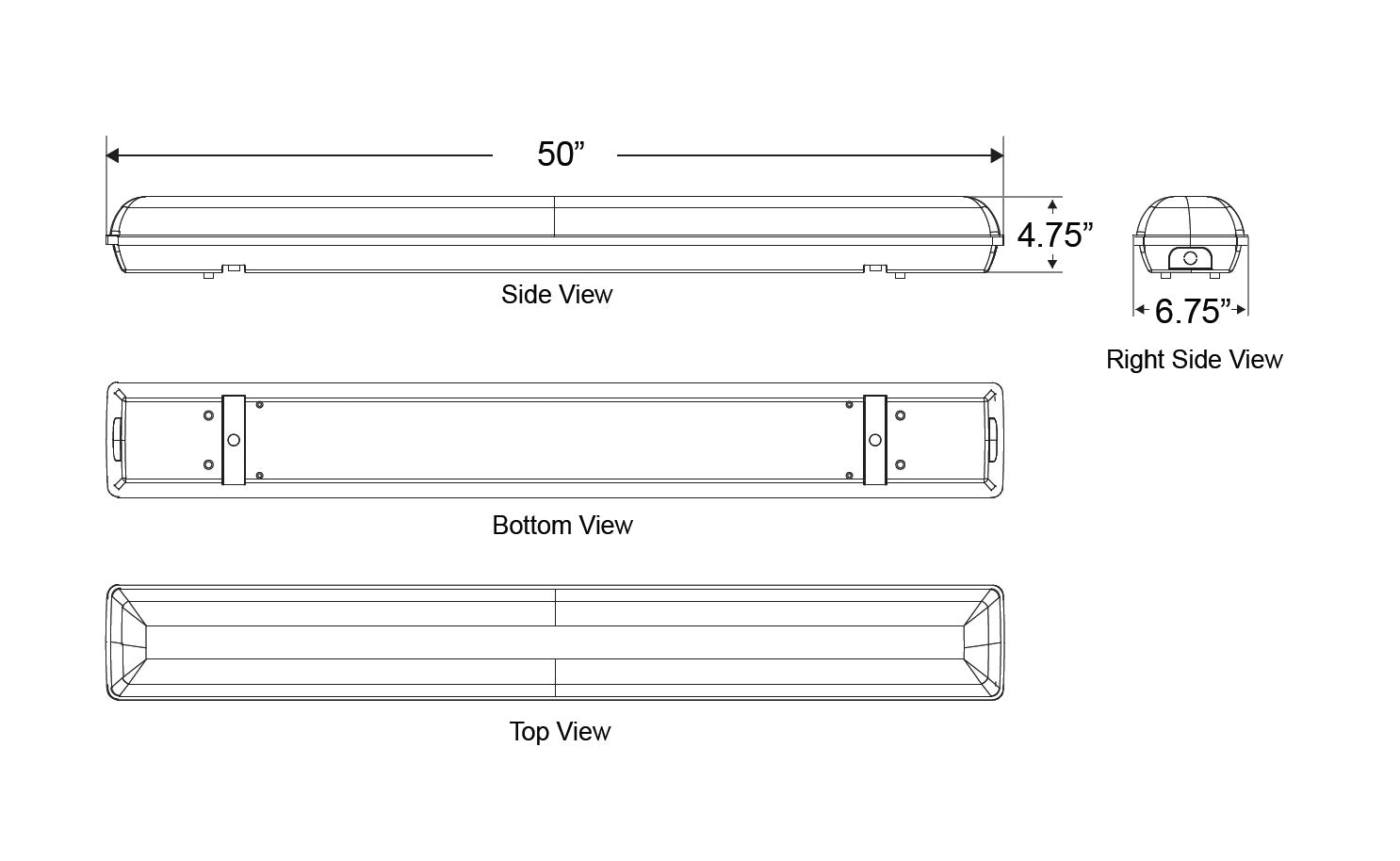

Dimensions: | 50.00" x 6.75"x 4.75" |
Width: | 6.75" |
Length: | 50.00" |
Height: | 4.75" |
Dimmable: | No |
Product Warranty: | 5 Year |
Voltage: | Multivolt 120V-277V |
Manufacturer: | Maxlite |
Technology: | LED |
Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
This is your answer for needing an energy saving, LED ready vapor tight fixture to use with your LED T8 tubes and allow installers to avoid bypassing the ballast. Designed for two (2) 4ft T8 LED Tube Lamps with a 22 watt per lamp maximum and includes non-shunted sockets and single ended pre-wiring. This is a convenient and inexpensive fixture housing solution with a UL listing to support your LED tube installations.
Features:
• Lamps not included
• Stainless Steel spec grade hasps and clips
• Lead wires are 7’ for tandem wiring, eliminating back and end knockouts.
• Sockets are wired in series via non-shunted sockets
• Ceiling or wall mounted
• Surface mount brackets included
Construction:
• Engineered and UL rated to take up to 22w per set of lamp holders
• Pour in place silicone seal provides hermetically sealed envelope for wet environments
• Polycarbonate Grey Housing and clear lens standard.
• Wiring is 18 AWG solid to allow 120-277v operation where lamp specification allows
• Sockets rated to 660w , 600V, UL Listed
Warranty:
• Indoor 5 year warranty on parts, materials and workmanship
• Outdoor 3 year warranty on parts, materials and workmanship
