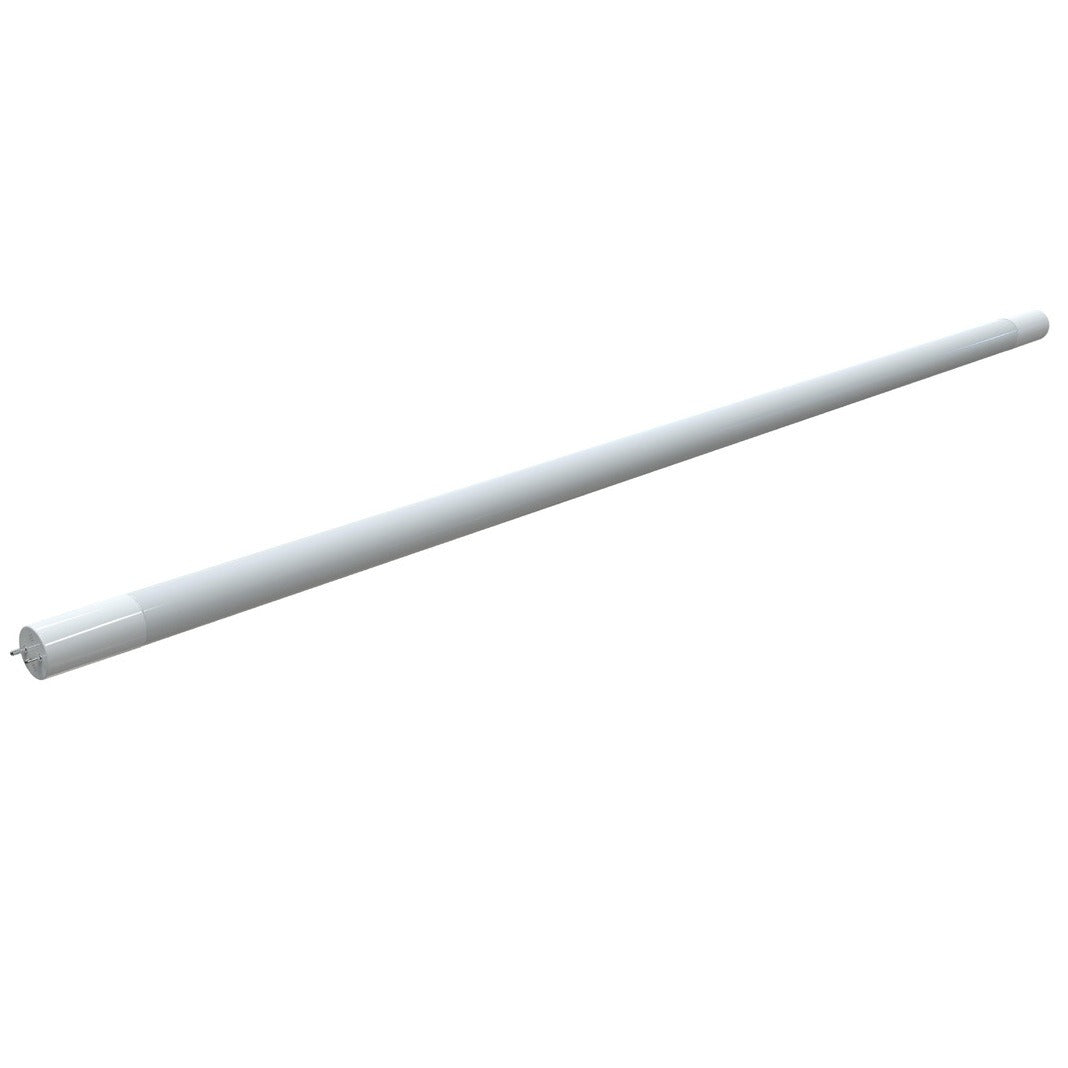

Maxlite L9.5T8SDE4 9.5-Watt 4FT Single/Double Ended LED T8 Bypass Linear Tube Lamp - Replaces 32W Fluorescent
Maxlite L9.5T8SDE4 9.5-Watt 4FT Single/Double Ended LED T8 Bypass Linear Tube Lamp - Replaces 32W Fluorescent
Specifications
Specifications
| Part Number# | L9.5T8SDE435-CG |
|---|---|
| Type of Area: | Industrial & Warehouse, Manufacturing Plants, Factory / Industrial |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,600 - 1,650 |
| Wattage: | 9 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, CUL Listed, Dimmable, DLC Approved, FCC Compliant, NSF, ROHS, UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 47.7" x 1.01" |
| Width: | 1.01" |
| Length: | 47.7" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.44 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Maxlite's 9.5-watt 4-foot LED T8 bypass linear tube lamp is designed to replace 32W fluorescent tubes. With single and double-ended wiring options, it easily retrofits into most common linear fluorescent fixtures, offering up to 50% energy savings. The lamp features a simple ballast bypass, dimming capability with a separate LED module, and suitability for dry and damp locations. It provides 1600-1650 lumens with high efficiency and boasts a 5-year limited warranty.
Features:
• 9.5W, 1600-1650 lumens
• Highly Efficient: 168 to 173 lumens per watt
• Easy retrofit into most common linear fluorescent fixtures
• Simple ballast bypass (Type B)
• Single and double-ended wiring installation
• Dimming Capable with separate LED module
• Suitable for enclosed fixture
• Suitable for dry and damp locations
• 5-year limited warranty
• Rated Lifetime @ L70: 50,000 Hours
