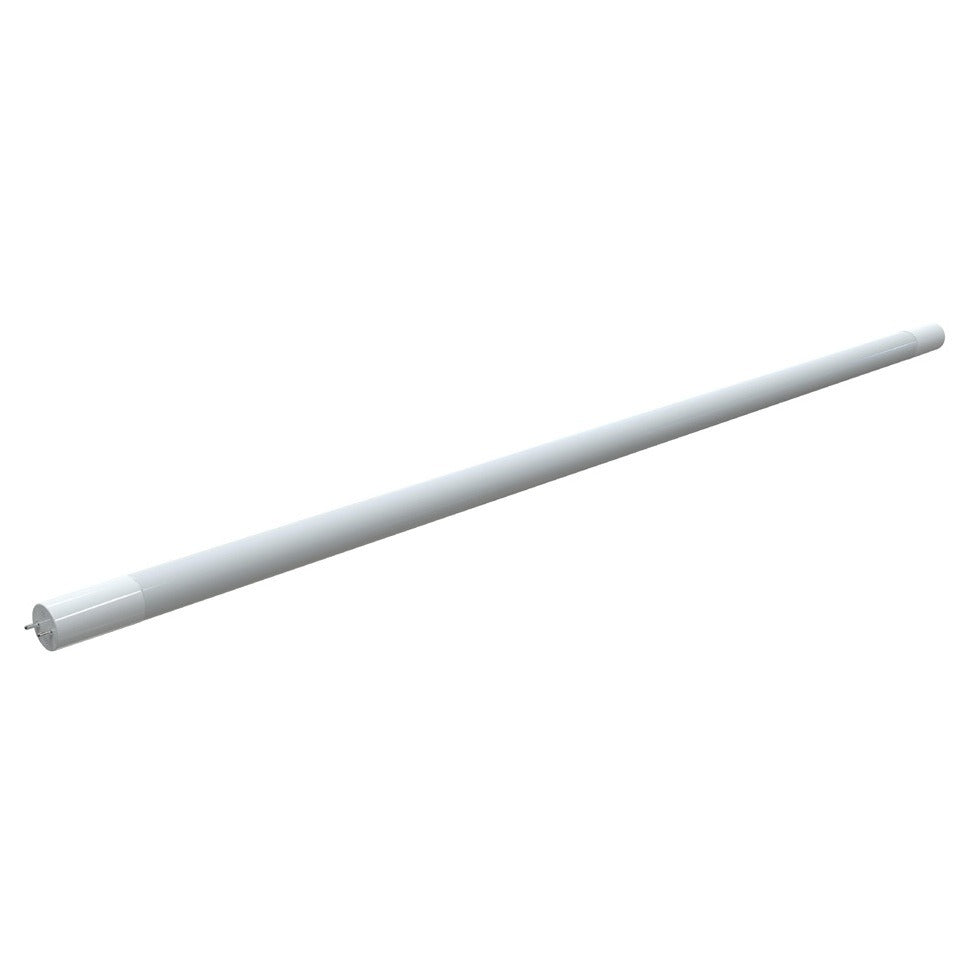

Maxlite L12T8SDE4 12-Watt 4FT Single/Double Ended LED T8 Bypass Linear Tube Lamp - Replaces 32W Fluorescent
Maxlite L12T8SDE4 12-Watt 4FT Single/Double Ended LED T8 Bypass Linear Tube Lamp - Replaces 32W Fluorescent
-
Specsheet:
Specifications
Specifications
| Part Number# | L12T8SDE435-CG |
|---|---|
| Type of Area: | Industrial & Warehouse, Commercial Offices, Factory / Industrial |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,700 - 1,800 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, CUL Listed, Dimmable, DLC Approved, FCC Compliant, NSF, ROHS, UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 47.7" x 1.01" |
| Width: | 1.01" |
| Length: | 47.7" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.44 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Maxlite's 12-watt, 4-foot LED T8 bypass linear tube lamp replaces 32W fluorescent tubes. It supports single and double-ended wiring options, making it an easy retrofit into most common linear fluorescent fixtures. This LED Type-B T8 lamp consumes up to 50% less energy than standard fluorescent tubes, providing significant long-term operational savings. It operates on a universal voltage of 120-277V, has a CRI of ≥80, and is suitable for damp locations with a rated lifetime of 50,000 hours.
Features:
• Universal Voltage: 120V-277V applications
• Color Rendering Index (CRI): ≥80
• Easy retrofit into most common linear fluorescent fixtures
• Simple ballast bypass, single-ended/ double-ended power
• Single Ended Connection can be used with non-shunted lamp holders
• Double-ended Connection can be used with shunted lamp holders.
• Instant on
• Mercury-free and virtually no UV or IR light
• Suitable for damp locations
• All glass construction
• Rated Lifetime @ L70: 50,000 Hours
• Suitable for use with the following Emergency Lighting Model# T8B-BBU-S
