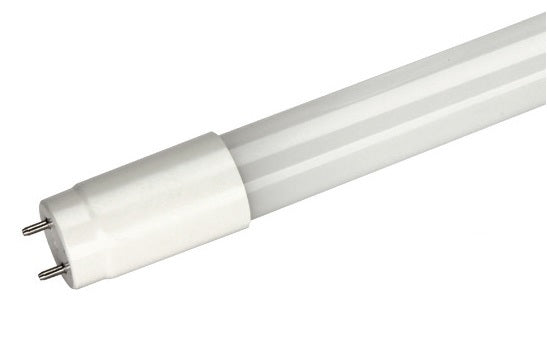

Maxlite L12T8AB4 12 Watt 4 Foot Hybrid LED T8 Coated Glass Replacement Tube Lamp - While Supplies Last
Maxlite L12T8AB4 12 Watt 4 Foot Hybrid LED T8 Coated Glass Replacement Tube Lamp - While Supplies Last
-
Specsheet:
Specifications
Specifications
| Part Number# | L12T8AB435-CG |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,800 - 1,900 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, ETL Listed, ROHS, UL Listed |
| CRI: | >83 |
| Dimensions: | 47.80" x 1.20" |
| Width: | 1.20 |
| Length: | 47.80" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.69 lb |
| Manufacturer: | Maxlite |
| Technology: | LED |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
This Dual Mode/Hybrid T8 Linear Tube Lamp is a universal solution that can be used with a compatible fluorescent ballast (UL-A) or ballast bypass (UL-B). Each pin is engineered with a thermal fuse that detects overheating and automatically responds by shutting the latmp off. The 12 Watt 4 foot lamp delivers 116-123 Lm/w with DLC certification for utility rebates. Rated for use in enclosed fixtures and Dry/Damp locations.
Features:
• Wattage:
- 9W, 2FT, ≥1350 lumens, replaces 17W fluorescent T8
-11W, 3FT, ≥1,600 lumens, replaces 25W fluorescent T8
-12W, 4FT, ≥1,800 lumens, replaces 32W fluorescent T8
• Voltage (UL TYPE-B): 120V-277V applications
• Color Rendering Index (CRI): ≥83
• Beam angle: 330˚
• THD <20%
• Power factor: ≥ 0.90
• Dual Mode: Can be used with compatible fluorescent ballast (UL-A) and ballast bypass (UL-B)
• Ballast bypass (UL-B): Can be wired for single-ended power or double-ended power.
• Compatible with shunted and non-shunted lamp holders
• Instant on
• Mercury free and virtually no UV or IR light
• Dimmable when used with compatible dimming ballast (UL-A)
• Suitable for enclosed fixture
• Suitable for dry and damp locations
• ETL Sanitation listed (tested under NSF standard)
• All glass construction with PET coating
• Rated Lifetime @ L70: 50,000 Hours
