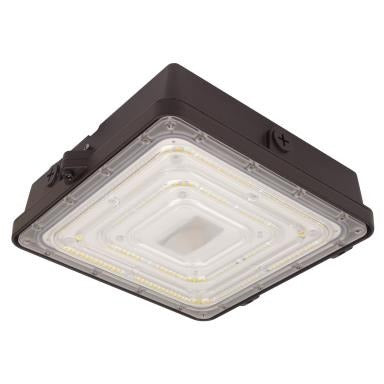

MaxLite CPL Series LED Enhanced Canopy Parking Garage Light Fixture Dimmable Replaces 70-250W HID
MaxLite CPL Series LED Enhanced Canopy Parking Garage Light Fixture Dimmable Replaces 70-250W HID
Specifications
Specifications
| Part Number# | CPL |
|---|---|
| Type of Area: | Parking Garage |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,490 - 8,370 |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 70W HID Equivalent, 250W HID Equivalent, CUL Listed, Dimmable, DLC Premium, FCC Compliant, IP65 / IP66 / IP67, ROHS, UL Listed |
| CRI: | 84+ |
| Dimensions: | 11.08" x 9.84" x 2.66" |
| Width: | 9.84" |
| Length: | 11.08" |
| Height: | 2.66" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
MaxLite's CPL LED Enhanced Canopy and Parking Garage Light Fixture is a high-performance, cost-effective retrofit solution for replacing 70W to 250W HID luminaires. Designed with selectable wattage (on 60W models) and CCT options of 3000K, 4000K, and 5000K (default 5000K), it features a low-profile 2.67" height for increased vehicle clearance and versatility. The fixture includes a built-in c-Max control receptacle for easy integration of smart sensors and network controls. The CPL Series offers reliable, adaptable lighting for a wide range of canopy and garage applications, backed by a robust design and optional features such as battery backup, a white finish, and TAA compliance.
Features:
• c-Max compatible, allowing a variety of field-installed c-Max controls
• Third-party network controls available (factory-installed)
• Quick and easy access to interior with a single screw and hinge design for conduit connection and controls installation
• CCT selectable between 3000/4000/5000K (5K default)
• Single lens covers up to 4 different DLC categories
• Wattage selectable on 60W version
• Shorter height for more vehicle clearance (2.67”/67.6mm)
• 18” leads standard for easier pendant mounting
• Universal 120-277V standard, High Voltage 277-480V option
• 4kV + 10kA surge protection standard, option for higher 20kA protection
(40W+ versions)
• TAA compliance available
